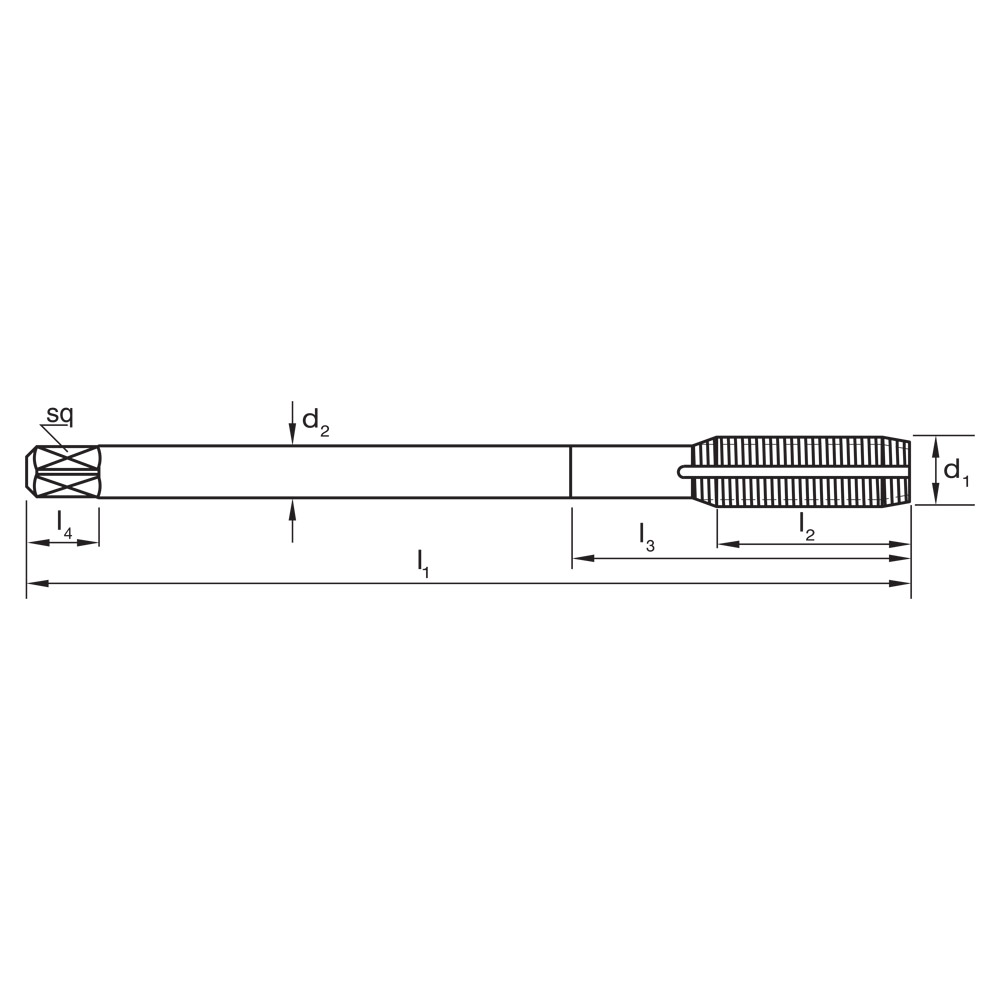

| Technical Details | |
|---|---|
| d1 | MF14 |
| d2 | 11 |
| Drill Ø | 13.4 |
| Finish | TiCN |
| l1 | 100 |
| l2 | 22 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| Pitch | 1.25 |
| sq | 9 |
| Thread Form | MF |
| Type | Fluteless - Multi Coolant Groove |
TAP T773 MF 14 x 1.25 6HX FORMING N DIN2174 C HSSE TiCN
$124.54inc
GST
Thread Forming Taps – N
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
