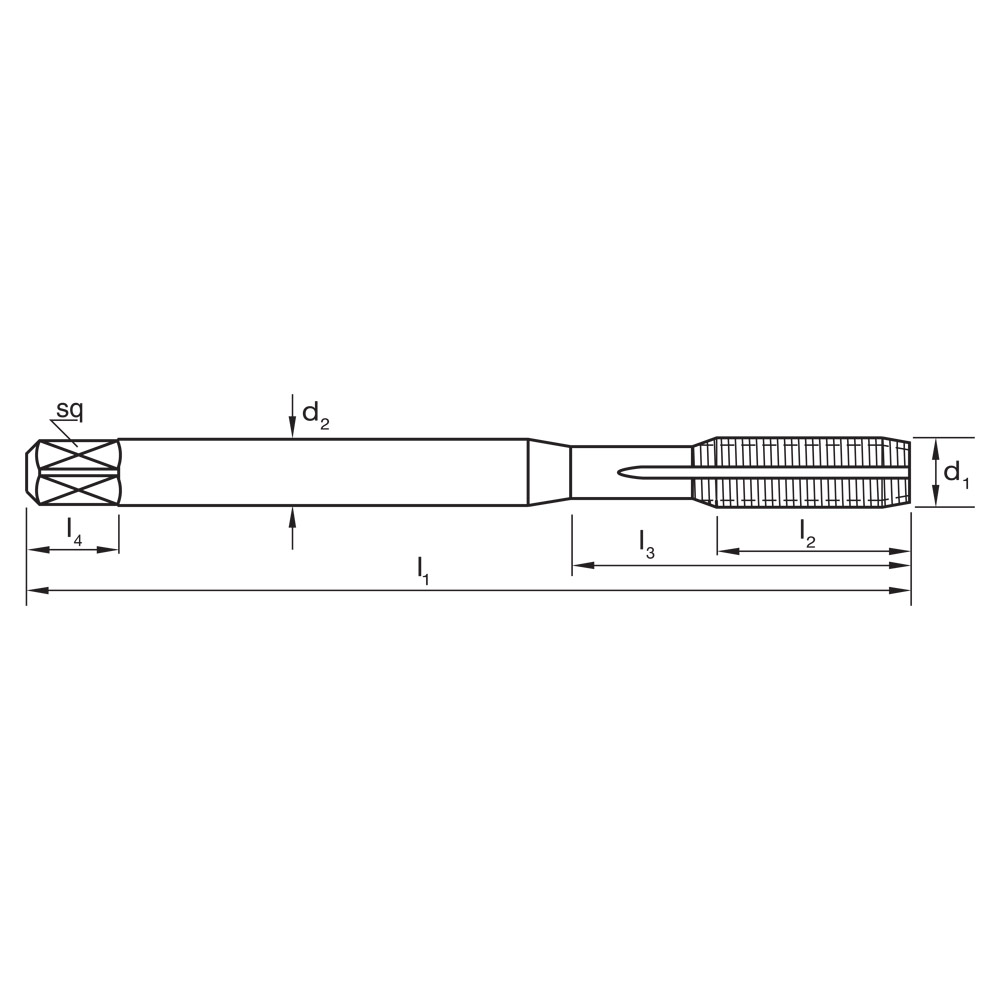

| Technical Details | |
|---|---|
| l2 | 16 |
| d1 | M5 |
| Drill Ø | 4.6 |
| Finish | TiCN |
| Lead | Form D / 4 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| l1 | 70 |
| Pitch | 0.8 |
| d2 | 6 |
| sq | 4.9 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

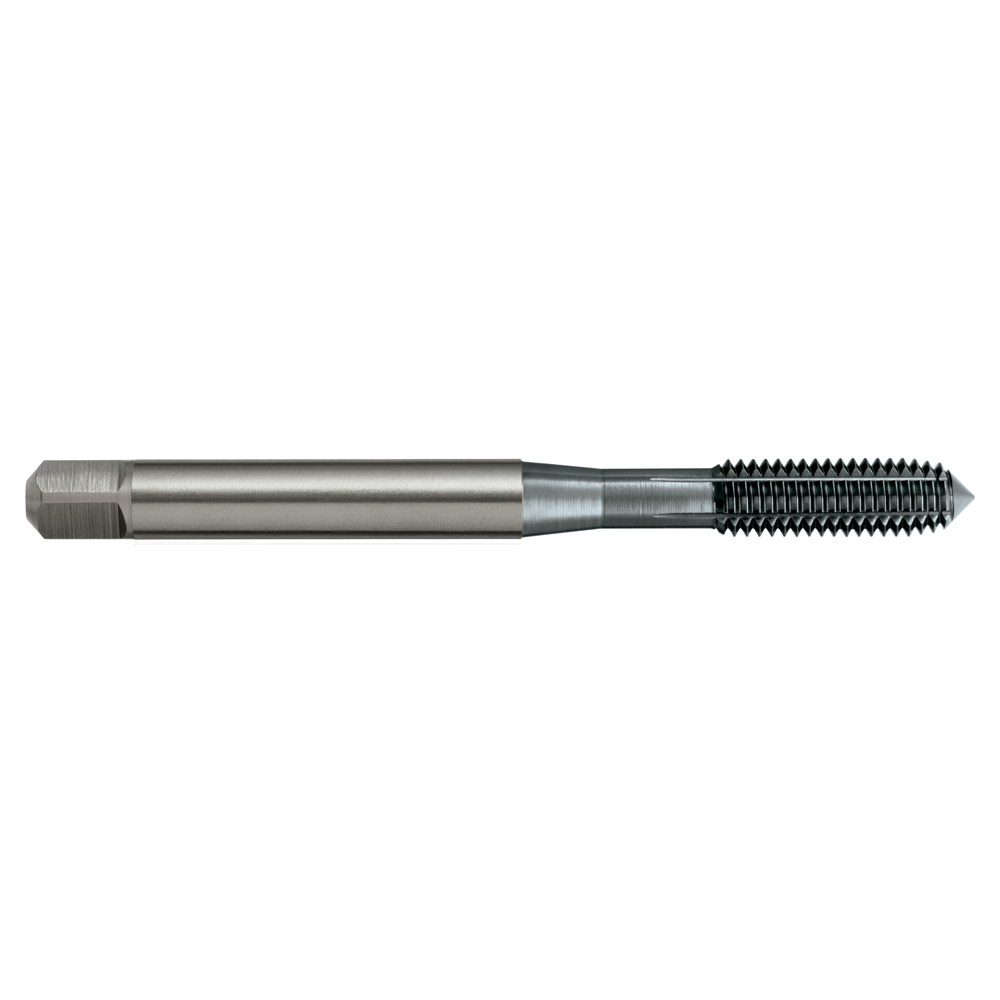

TAP T321 M 5 x 0.8 6HX FORMING N DIN2174 D HSSE TiCN
$68.05inc
GST
Thread Forming Taps – Multi Coolant Groove – N
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
