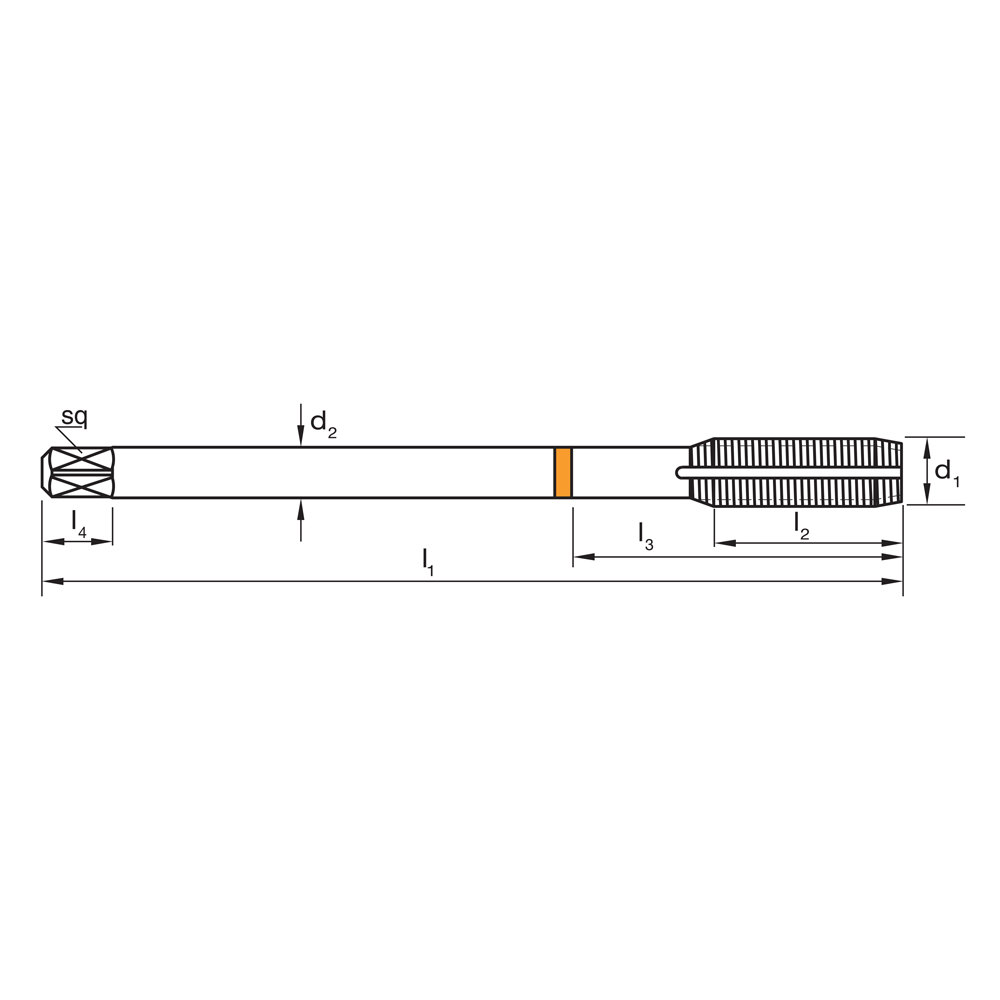

| Technical Details | |
|---|---|
| l2 | 29 |
| d1 | M12 |
| Drill Ø | 11.2 |
| Finish | TiAlN |
| Lead | Form C / 3 x P |
| Material | SPM |
| Max Cut Depth | 3xD |
| l1 | 110 |
| Pitch | 1.75 |
| d2 | 9 |
| sq | 7 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

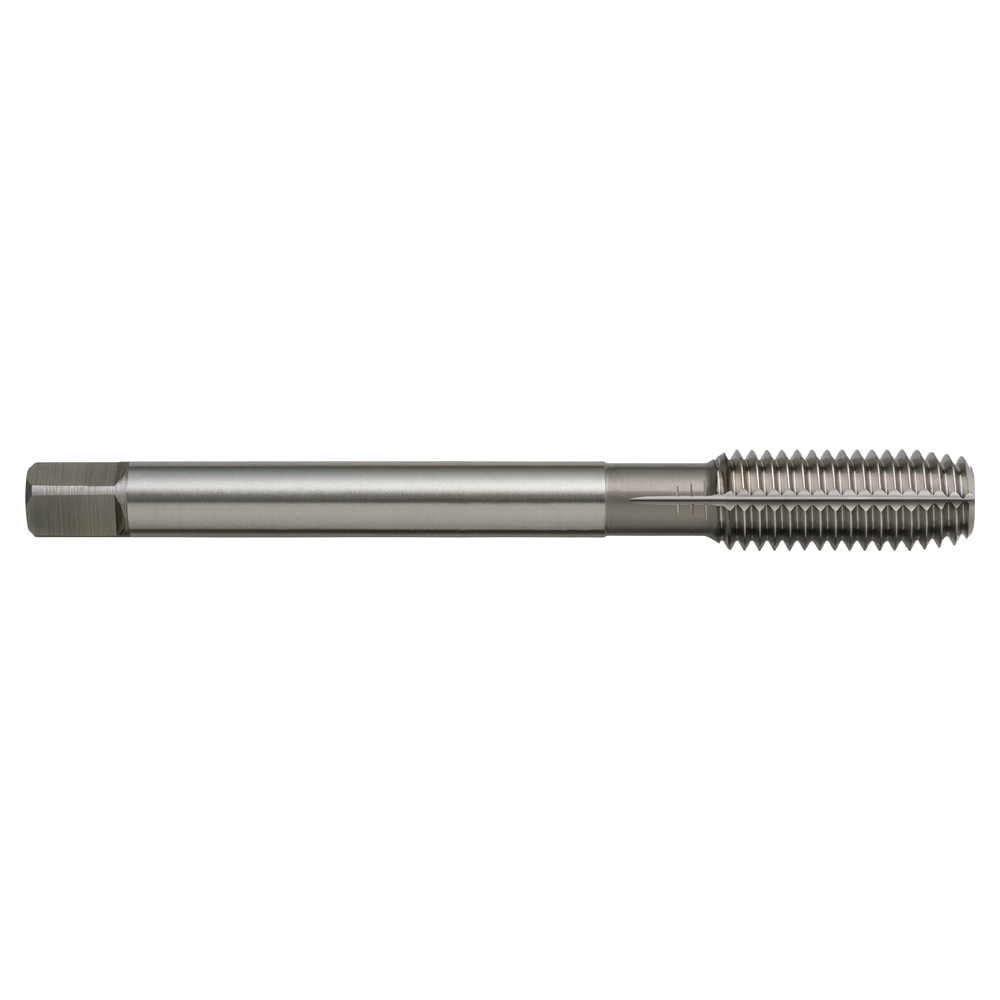

TAP T330 M 12 x 1.75 6HX FORMING Cu DIN2174 C HSSE CrN
$149.70inc
GST
Thread Forming Taps – Multi Coolant Groove – CU
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
