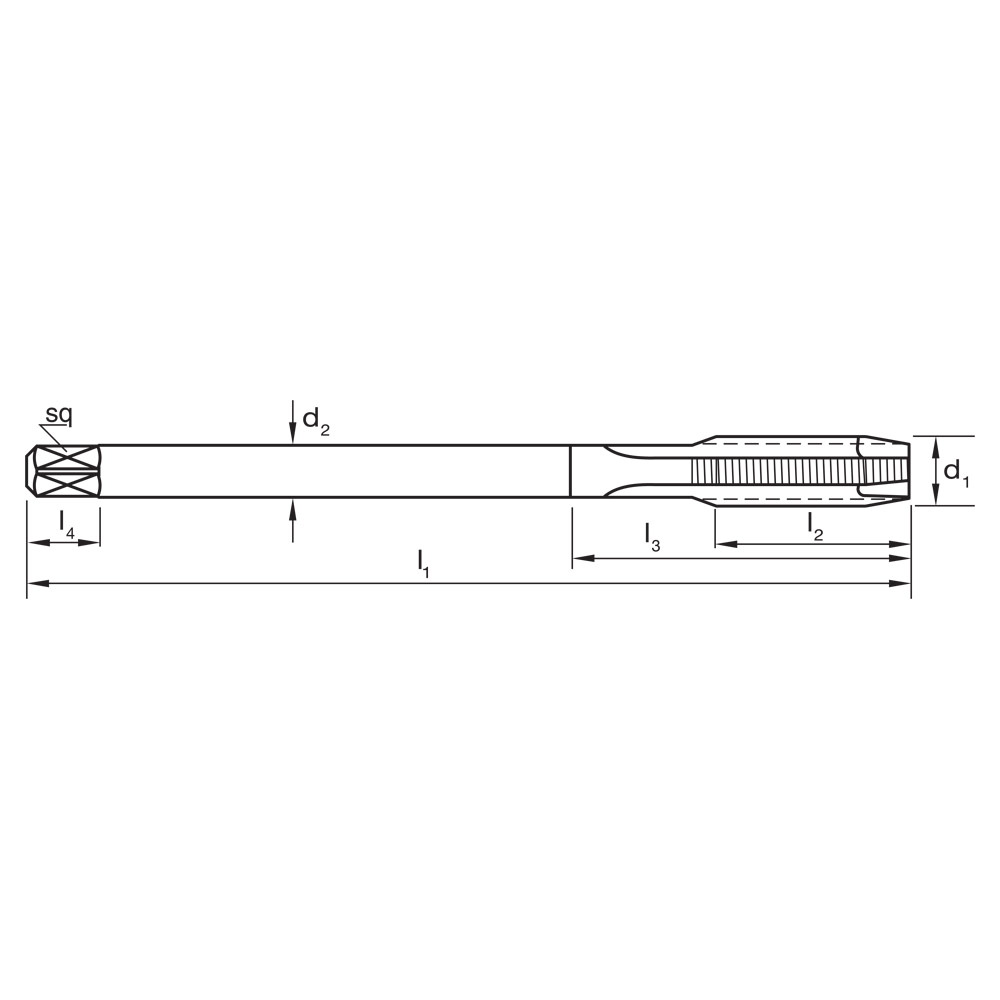

| Technical Details | |
|---|---|
| l2 | 30 |
| d1 | M14 |
| Drill Ø | 12 |
| Finish | TiCN |
| Lead | Form B / 4.5 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 3xD |
| l1 | 110 |
| Pitch | 2 |
| d2 | 11 |
| sq | 9 |
| Thread Form | M |
| Type | Spiral Point (Gun) |

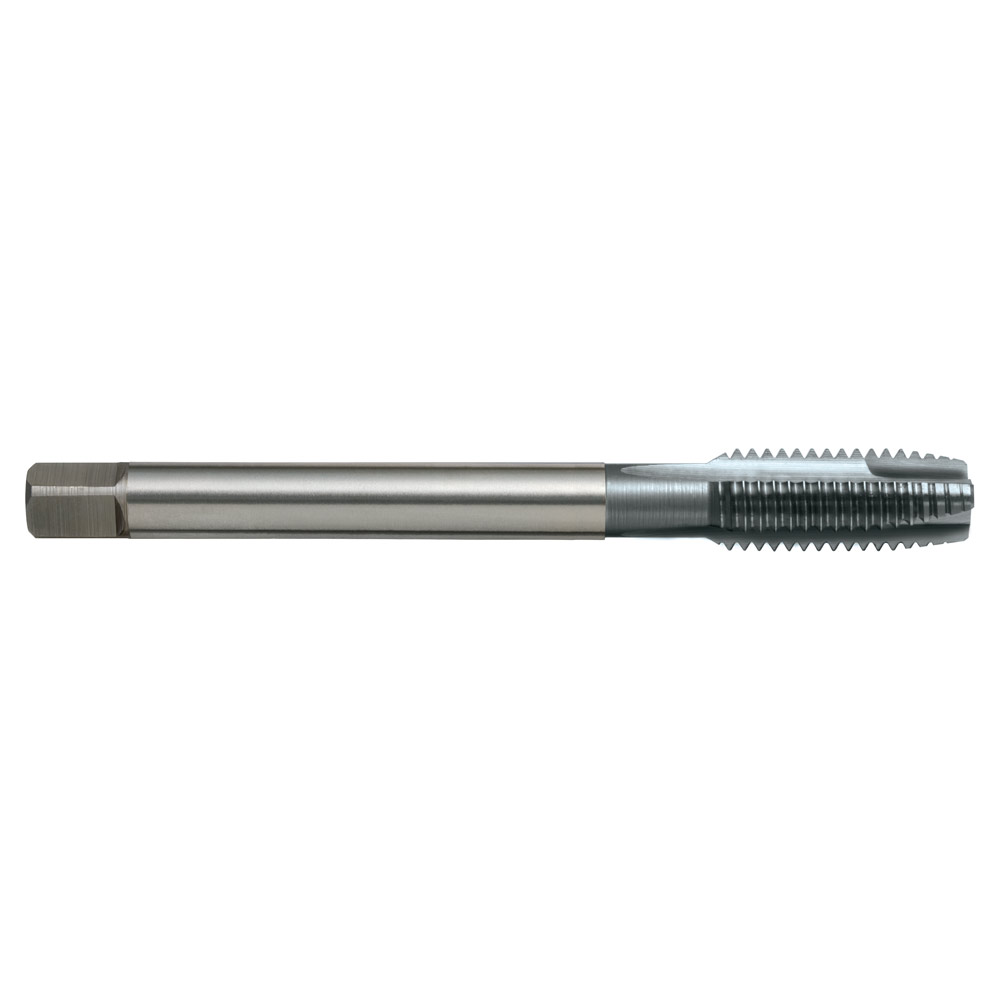

TAP T681 M 14 x 2 6GX GUN VA DIN376 B PM-V3 TiCN
$163.30inc
GST
Spiral Point (Gun) Taps – VAPM
- PM-HSSE V3 offers superior performance
- Use in stainless steels and high strength steels
- Suitable for materials up to 850N/mm2
- Through holes
- Depths up to 3 x d1
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
