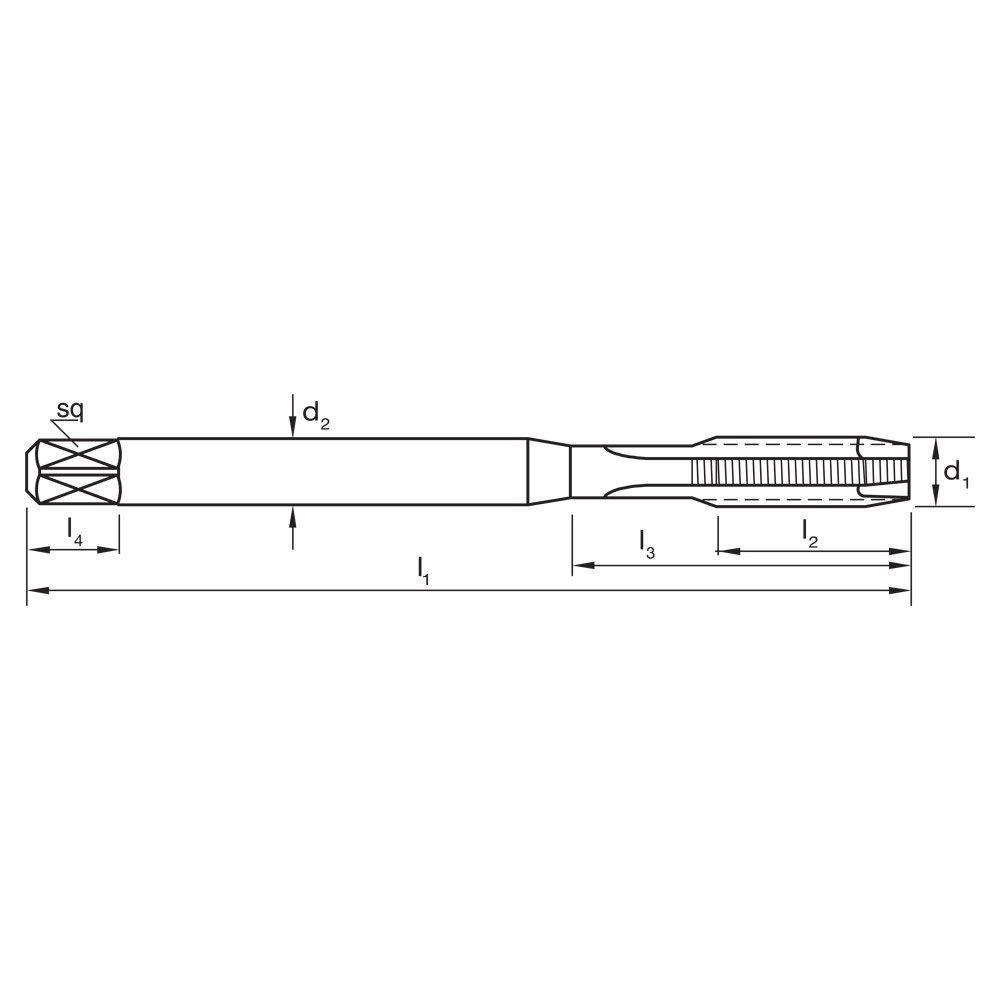

| Technical Details | |
|---|---|
| d1 | 1/4 |
| d2 | 7 |
| Drill Ø | 5.1 |
| Finish | Blu |
| l1 | 80 |
| l2 | 19 |
| Lead | Form B / 4.5 x P |
| Material | PM-HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 5.5 |
| Thread Form | UNC |
| TPI | 20 |
| Type | Spiral Point (Gun) |

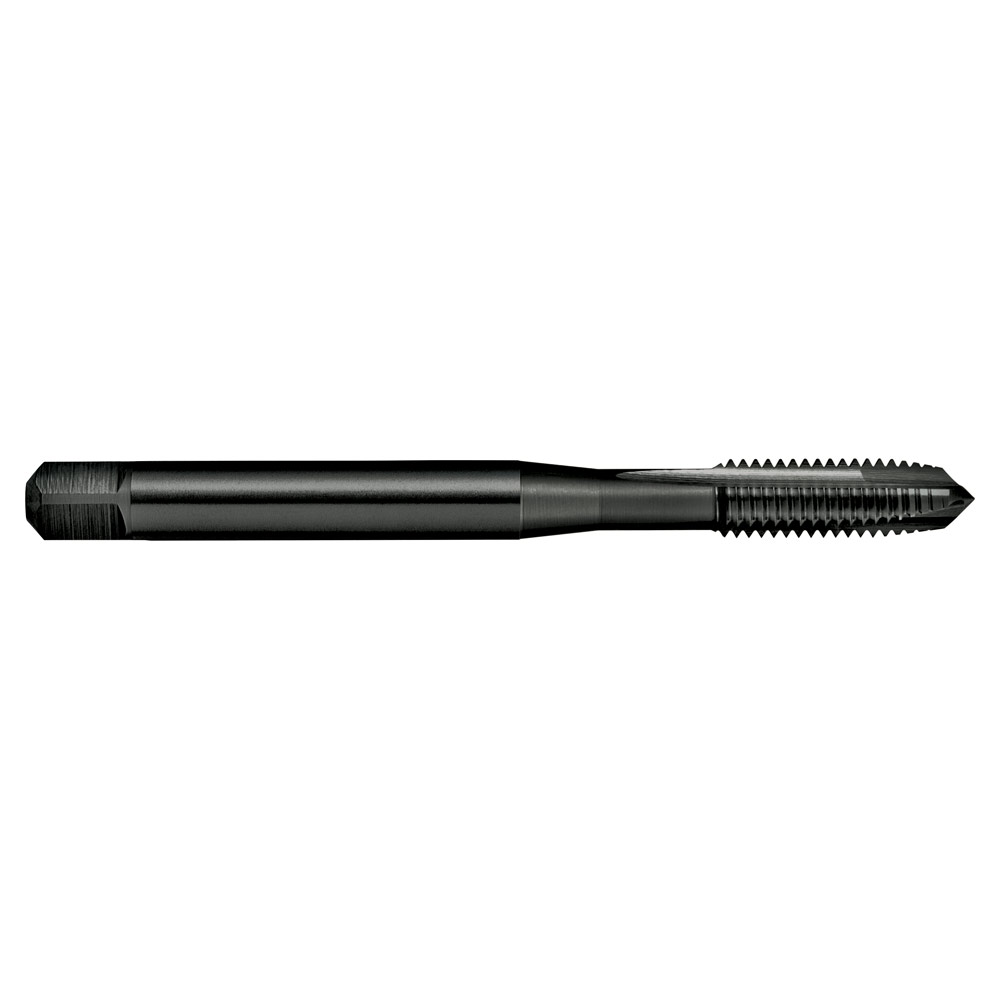

TAP T168 UNC 1/4-20 2B GUN NH DIN2184-1 B PM-V3 BLU
$58.70inc
GST
Spiral Point (Gun) Taps – NH
- Use in harder short chipping materials up to 42 HRc
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
We don't have any datasheets for this product.
We don't have any media for this product.
