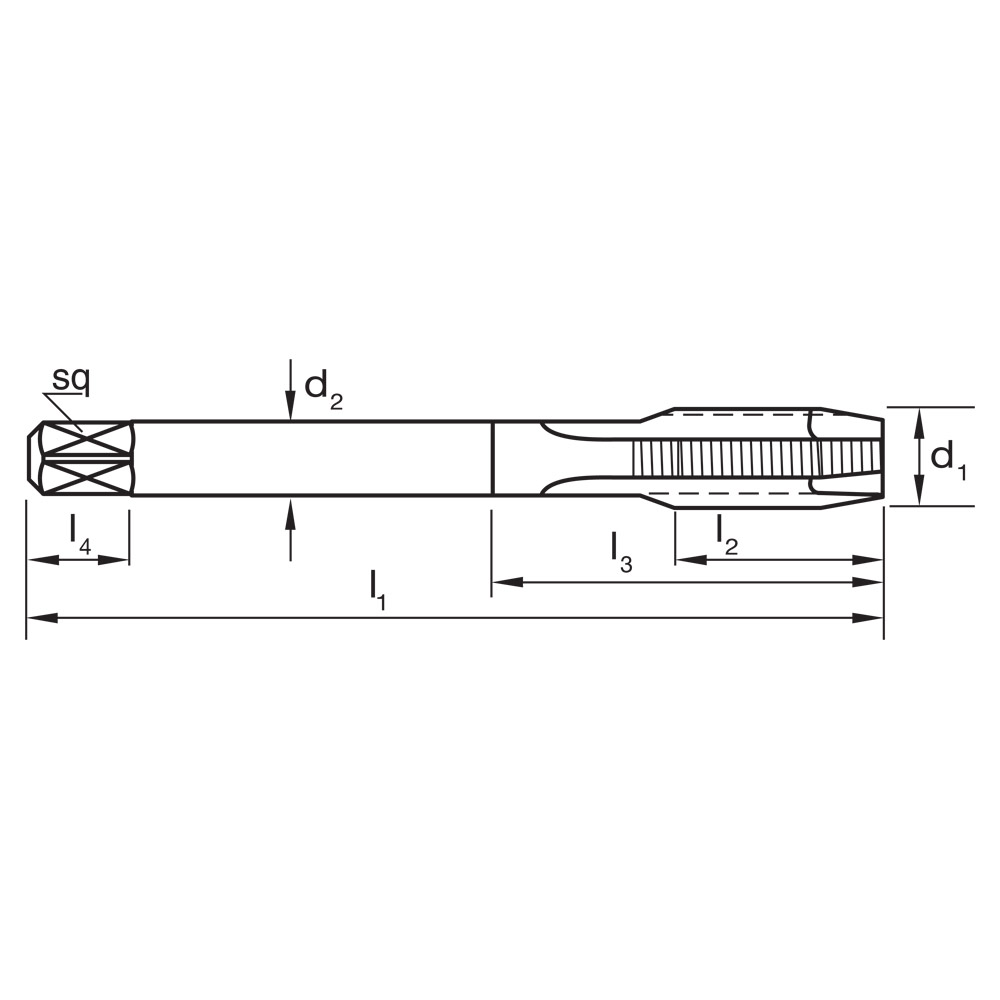

| Technical Details | |
|---|---|
| d1 | G 1/4 |
| d2 | 11 |
| Drill Ø | 11.8 |
| Finish | TiN |
| l1 | 100 |
| l2 | 22 |
| Lead | Form B / 4.5 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| sq | 9 |
| Thread Form | G (BSPF) |
| TPI | 19 |
| Type | Spiral Point (Gun) |

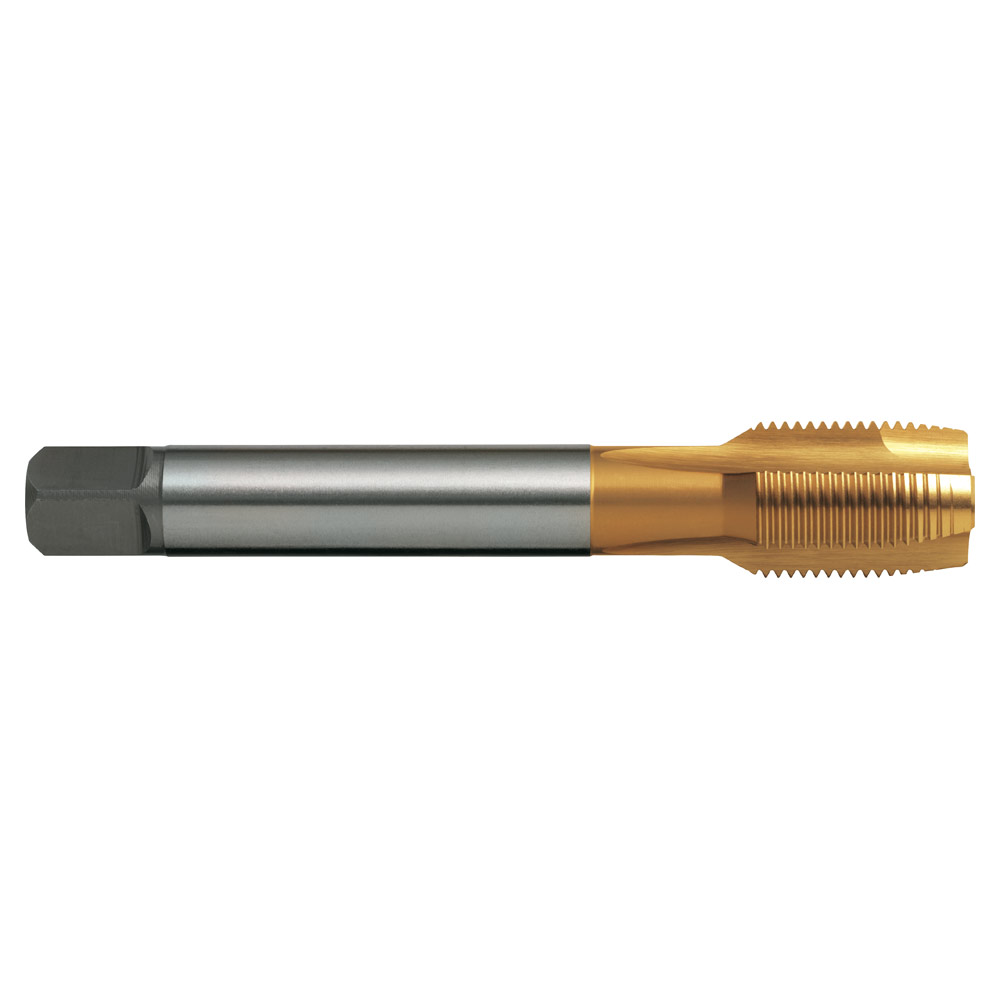

TAP T180 G 1/4-19 (BSPF) GUN N DIN5156 B HSSE TiN
$114.73inc
GST
Spiral Point (Gun) Taps – N
- General Purpose use in materials up to approx. 1000 N/mm2
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
