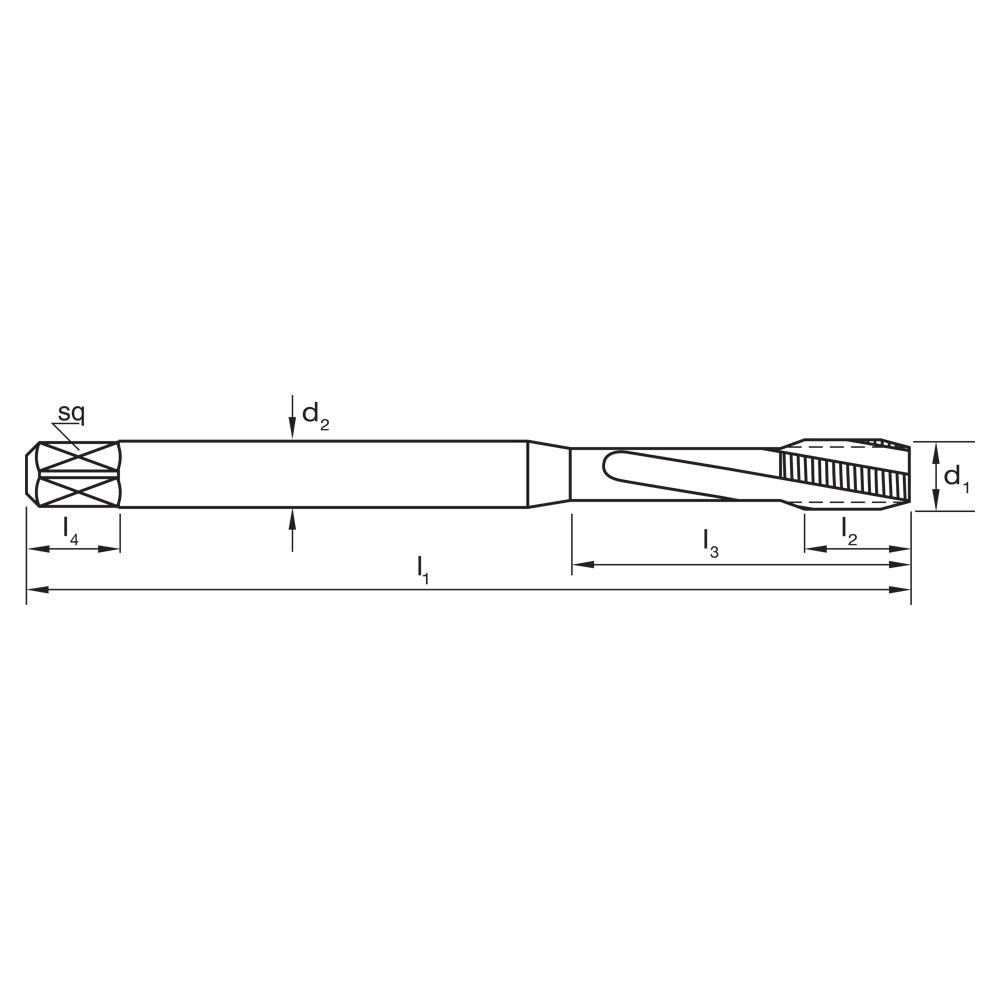

| Technical Details | |
|---|---|
| d1 | 5/16 |
| d2 | 8 |
| Drill Ø | 6.6 |
| Finish | TiCN |
| Helix Angle | R15 |
| l1 | 90 |
| l2 | 13 |
| Lead | Form C / 3 x P |
| Material | PM-HSS Co |
| Max Cut Depth | 1.5xD |
| sq | 6.2 |
| Thread Form | UNJF |
| TPI | 24 |
| Type | Spiral Flute |

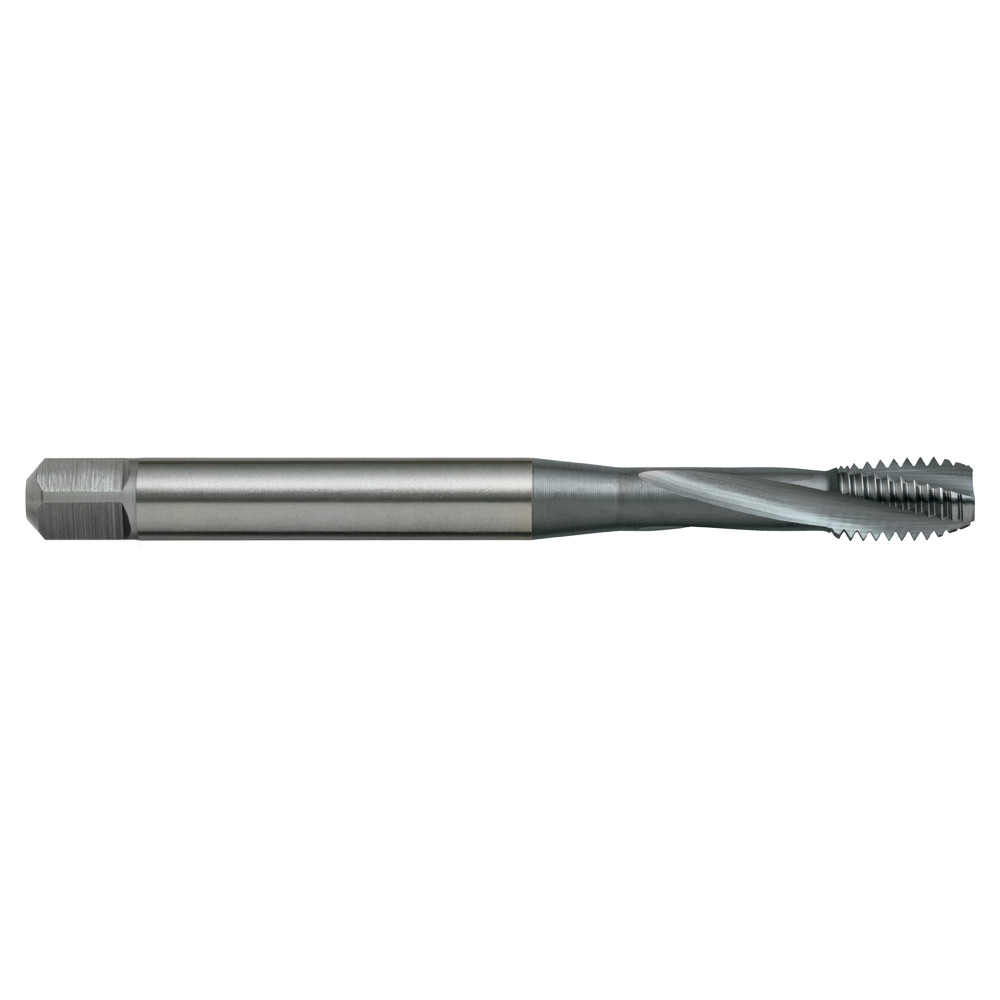

TAP T791 5/16-24 UNJF 3BX SPIRAL R15 Ti DIN2184 B PM-Co TiCN
$112.30inc
GST
Spiral Flute Taps – R15 Ti
