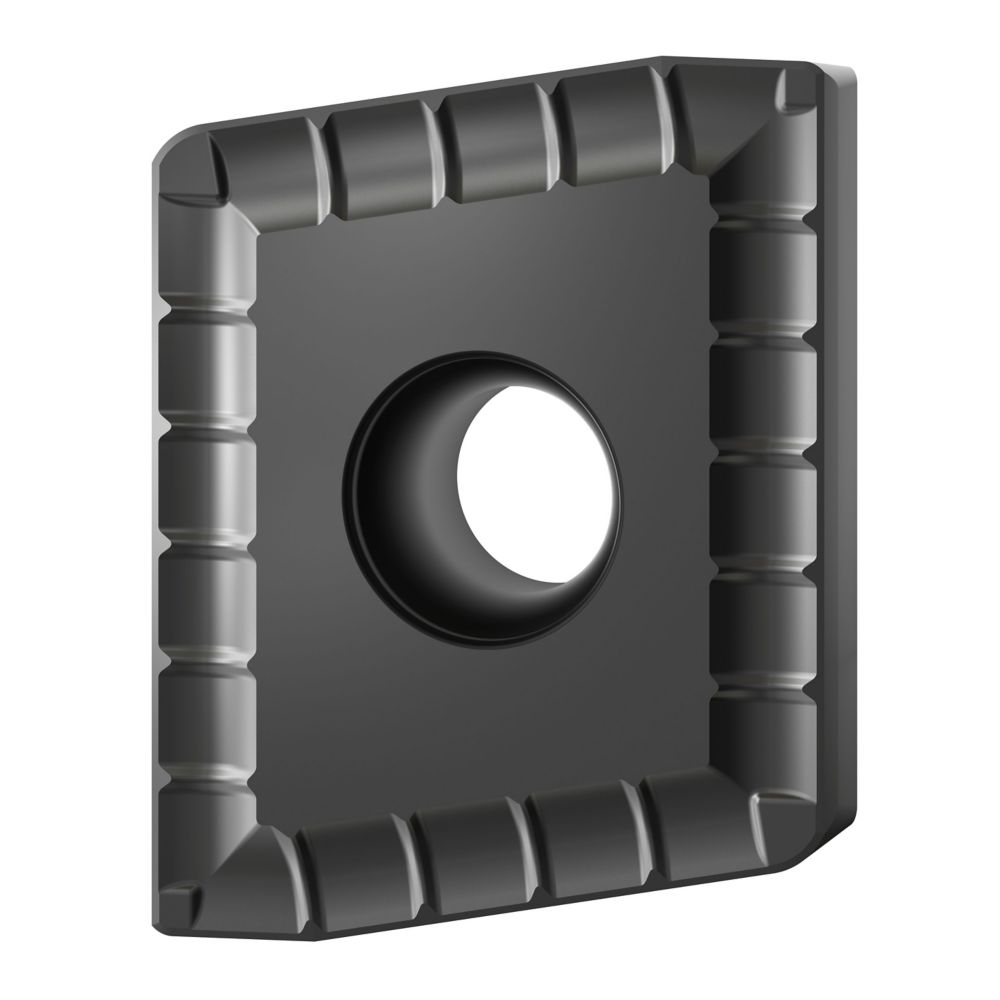

Kennametal • KSEM PLUS™ • Outboard Insert • DFC-MD Geometry • DFC090520D56MD KCMS40

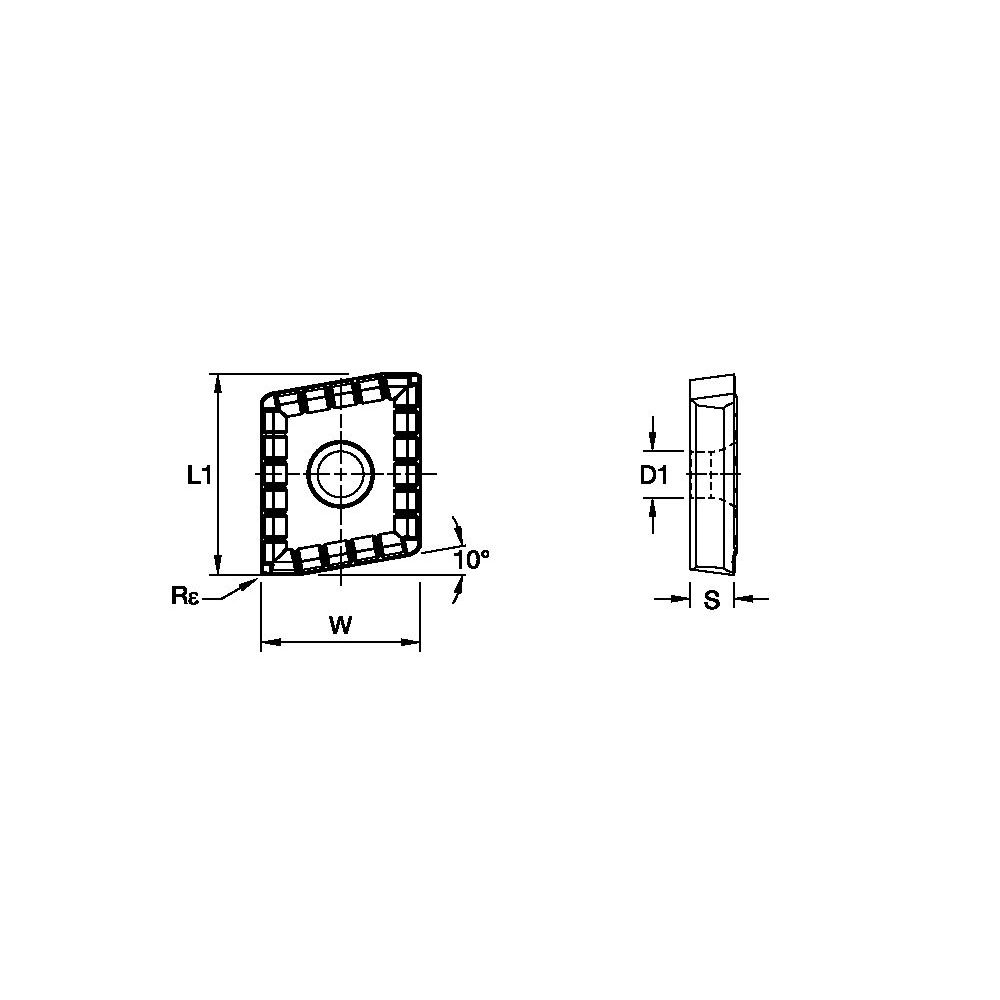

Kennametal • KSEM PLUS™ • Outboard Insert • DFC-MD Geometry • DFC090520D56MD KCMS40 - Image 2

Kennametal • KSEM PLUS™ • Outboard Insert • DFC-MD Geometry • DFC090520D56MD KCMS40

SKU: KEN7296158S/C: 7296158
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$37.77inc
GSTEACH

Price Match

Modular Drilling • Carbide Insert for KSEM PLUS™ B1 Heads

  • Drilling insert for primary application in stainless steels
  • DFC inserts provide lateral guidance and good hole quality
  • Two cutting edges
More Info
View all:
Technical Details
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationMD
Clearance Angle Major [ALPHAN]7.5000
CoatingAlTiN
Corner Facet Length Inch [BS]0.1810
Corner Facet Length Metric [BS]4.6000
Corner Radius Inch [REPSILON]0.079000
Corner Radius Metric [REPSILON]2.0000
Cutting Tool MaterialCarbide
Engineering Insert GeometryDFC-MD
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.2165
Insert Hole Size Metric [D1]5.5000
Insert Length Inch [LI]0.9449
Insert Length Metric [LI]24.0000
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert ShapeD-Diamond/Rhombic 90
Insert Thickness Inch [S]0.2070
Insert Thickness Metric [S]5.2500
Insert Width Inch [W]0.7480
Insert Width Metric [W]19.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
