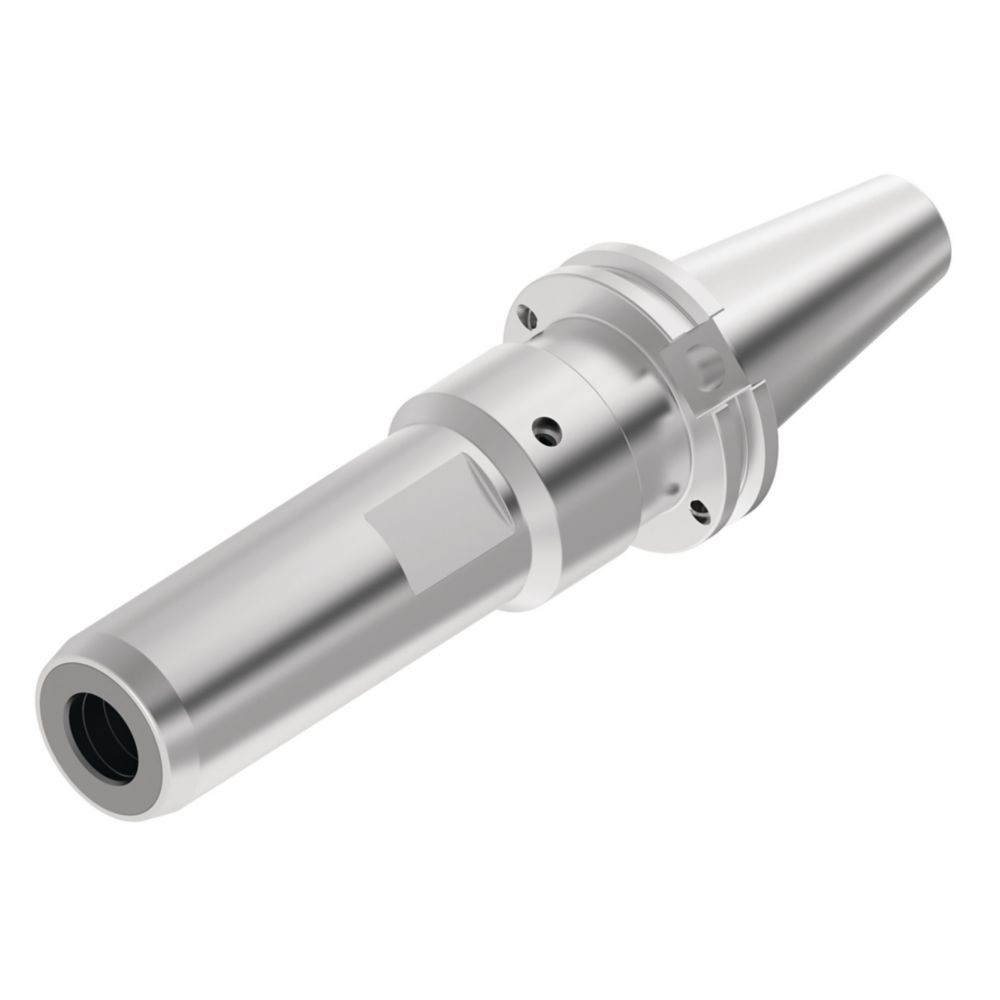

Kennametal • Hydraulic Chuck • CV40-B/AD • ST-Line • Metric • CV40BHCP20170M
Kennametal • Hydraulic Chuck • CV40-B/AD • ST-Line • Metric • CV40BHCP20170M - Image 2

Kennametal • Hydraulic Chuck • CV40-B/AD • ST-Line • Metric • CV40BHCP20170M

SKU: KEN7138023S/C: 7138023
Usually ships in 5 daysExcluding weekends / Subject to availability

$882.09inc
GST

Price Match

Hydraulic Chuck for structural steel drilling with KSEM ST-Line drill bodies

This product doesn't have any features.

More Info
View all:

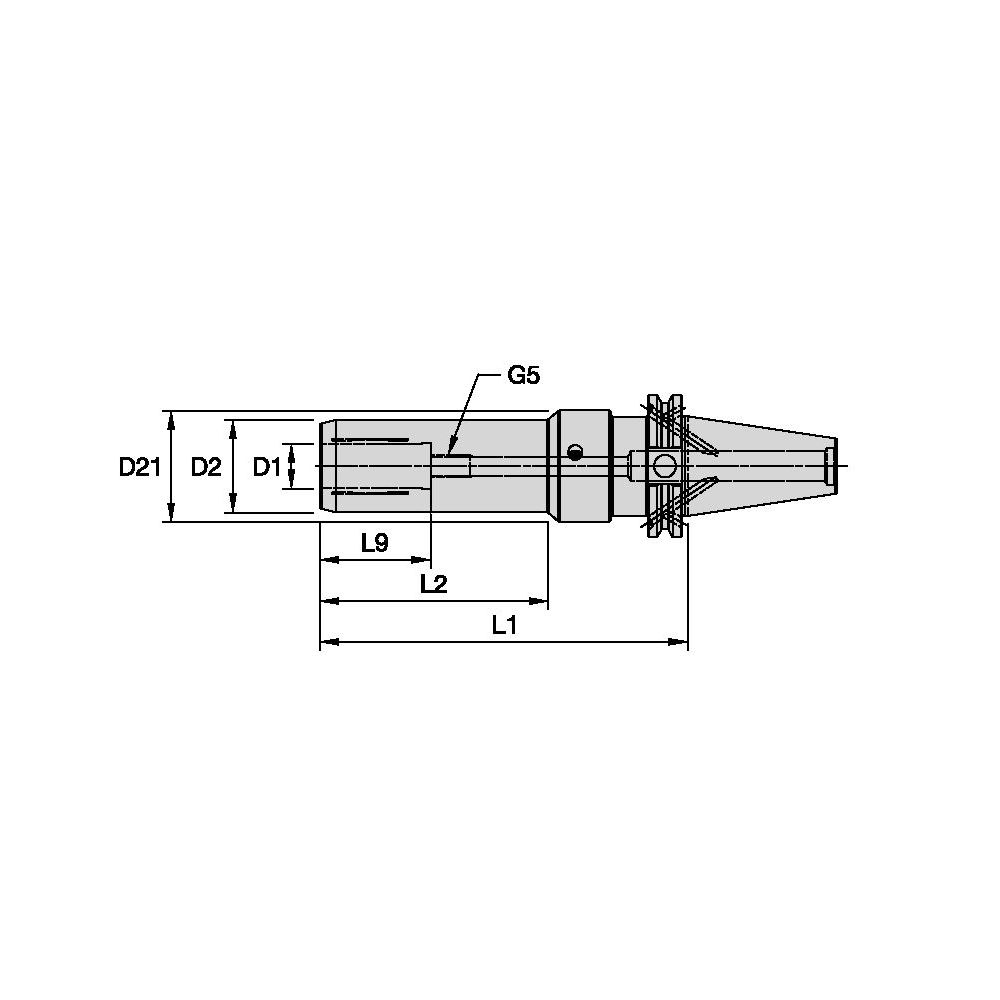

Technical Details
Actuation Screw ID Drive Size5 mm
Adapter Style Machine SideCV-Caterpillar V-Flange In
Adapter Type Machine SideTaper Shank
Adapter Type Workpiece SideZYL - Cylindrical Adapter
Adapter/Shank/Bore Dia Frac [D]1 3/4
Adapter/Shank/Bore Dia Inch [D]1.7500
Adapter/Shank/Bore Dia Metric [D]44.4500
Adapter/Shank/Bore Dia WKPS Inch [D1]0.7874
Adapter/Shank/Bore Dia WKPS Metric [D1]20.0000
Body Dia 1 Workpiece Side Inch [D2]1.6354
Body Dia 1 Workpiece Side Metric [D2]41.5400
Body Dia 2 Workpiece Side Inch [D21]1.9626
Body Dia 2 Workpiece Side Metric [D21]49.8500
Body Dia Machine Side Inch [D5]2.5000
Body Dia Machine Side Metric [D5]63.5000
Centreline Height Inch [H1]0.0000
Centreline Height Metric [H1]0.0000
Clamping Conn THD Size MS INT [G3]5/8 - 11 UNC
Clamping Length Inch [L9]2.0079
Clamping Length Metric [L9]51.0000
Coolant Hole Dia Exit Inch [A1]0.3346
Coolant Hole Dia Exit Metric [A1]8.5000
Coolant Hole Dia Inch [A]0.5366
Coolant Hole Dia Metric [A]13.6300
Coolant SupplyYes
Dimension Inch [F]0.0000
Dimension Metric [F]0.0000
Flange Length Metric [FLGT]15.8750
Flange-Front End Dist Inch [L4]5.9429
Flange-Front End Dist Metric [L4]150.9500
Front End Tool TypeHydraulic Chuck
Functional Length Inch [LF]6.6929
Functional Length Metric [LF]170.0000
Gage Length 1 Inch [L1]6.6929
Gage Length 1 Metric [L1]170.0000
Hand of ToolN - Neutral
Max RPM25000
Overall Length Inch [L]9.3799
Overall Length Metric [L]238.2500
Protruding Length Inch [LPR]6.6929
Protruding Length Metric [LPR]170.0000
Ret Knob Blank Hole Dia Inch [D13]0.6484
Ret Knob Blank Hole Dia Metric [D13]16.4700
Shank Length Inch [LS]2.6870
Shank Length Metric [LS]68.2500
System Size Machine Side [CSMS]CV40
Tool Assembly Length Inch [LTA]6.6929
Tool Assembly Length Metric [LTA]170.0000
Usable Length 2 Inch [L21]5.9429
Usable Length 2 Metric [L21]150.9500
Usable Length Inch [L2]4.1339
Usable Length Metric [L2]105.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
