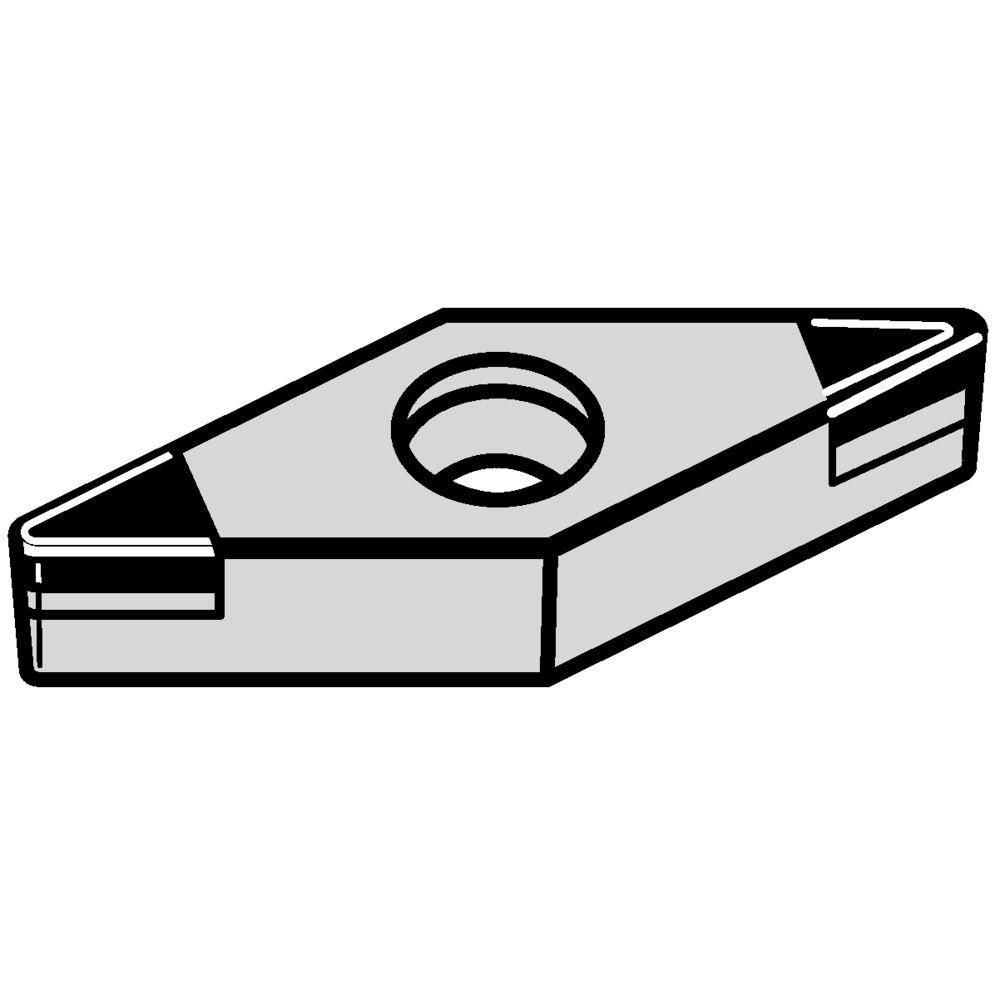

Kennametal • VCGW • Light Machining • VCGW160408S01015MT KBH20
Kennametal • VCGW • Light Machining • VCGW160408S01015MT KBH20 - Image 2

Kennametal • VCGW • Light Machining • VCGW160408S01015MT KBH20

SKU: KEN5330180S/C: 5330180Barcode: 4050839363988
Usually ships in 5 daysExcluding weekends / Subject to availability

$255.31inc
GST

Price Match

Hard Turning Materials

  • Medium geometry utilized in high-temp and stainless steel applications
More Info
View all:
Technical Details
B Gamma Inch [BGAMMA]0.0040
B Gamma Metric [BGAMMA]0.1000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]7.000
Clearance Angle Minor [ALPHANM]7.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031200
Corner Radius Metric [REPSILON]0.7940
Cutting Tool MaterialBN-Low CBN
Engineering Insert GeometryCGW_S01015_MT
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.6538
Ins Cut Edge Length Metric [L10]16.6060
Ins Effect Cut Length Inch [Leff]0.2050
Ins Effect Cut Length Metric [Leff]5.2200
Insert Gage Dimension Inch [M]0.3634
Insert Gage Dimension Metric [M]9.2290
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1730
Insert Hole Size Metric [D1]4.4000
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert ShapeV-Diamond/Rhombic 35
Insert Thickness Inch [S]0.1883
Insert Thickness Metric [S]4.7820

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
