Kennametal • DPMT-FW • DPMT070208FW KCU10

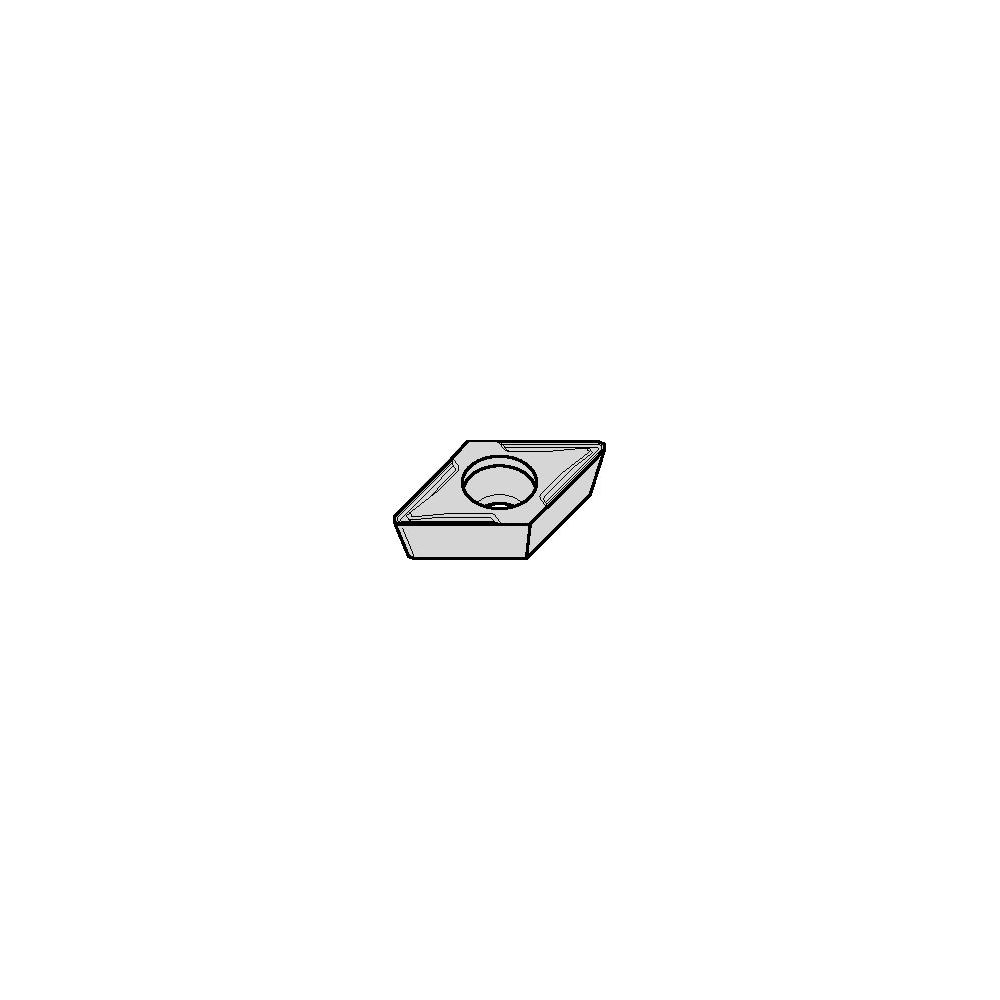

Kennametal • DPMT-FW • DPMT070208FW KCU10 - Image 2

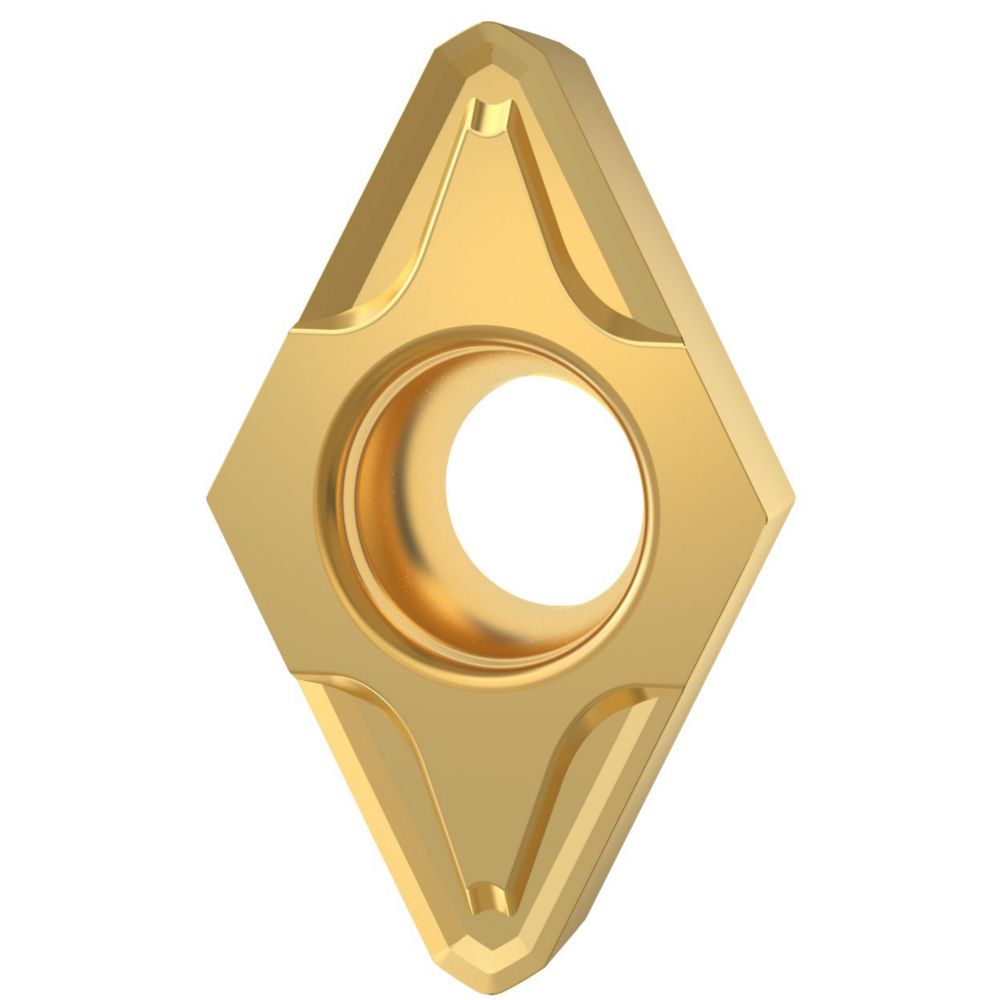

Kennametal • DPMT-FW • DPMT070208FW KCU10 - Image 3

Kennametal • DPMT-FW • DPMT070208FW KCU10

SKU: KEN4045283S/C: 4045283
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$9.39inc
GSTEACH

Price Match

Screw-On Inserts

  • Finishing wiper when surface finish is of highest importance.
  • Beyond™ Drive™ grades included.
More Info
View all:

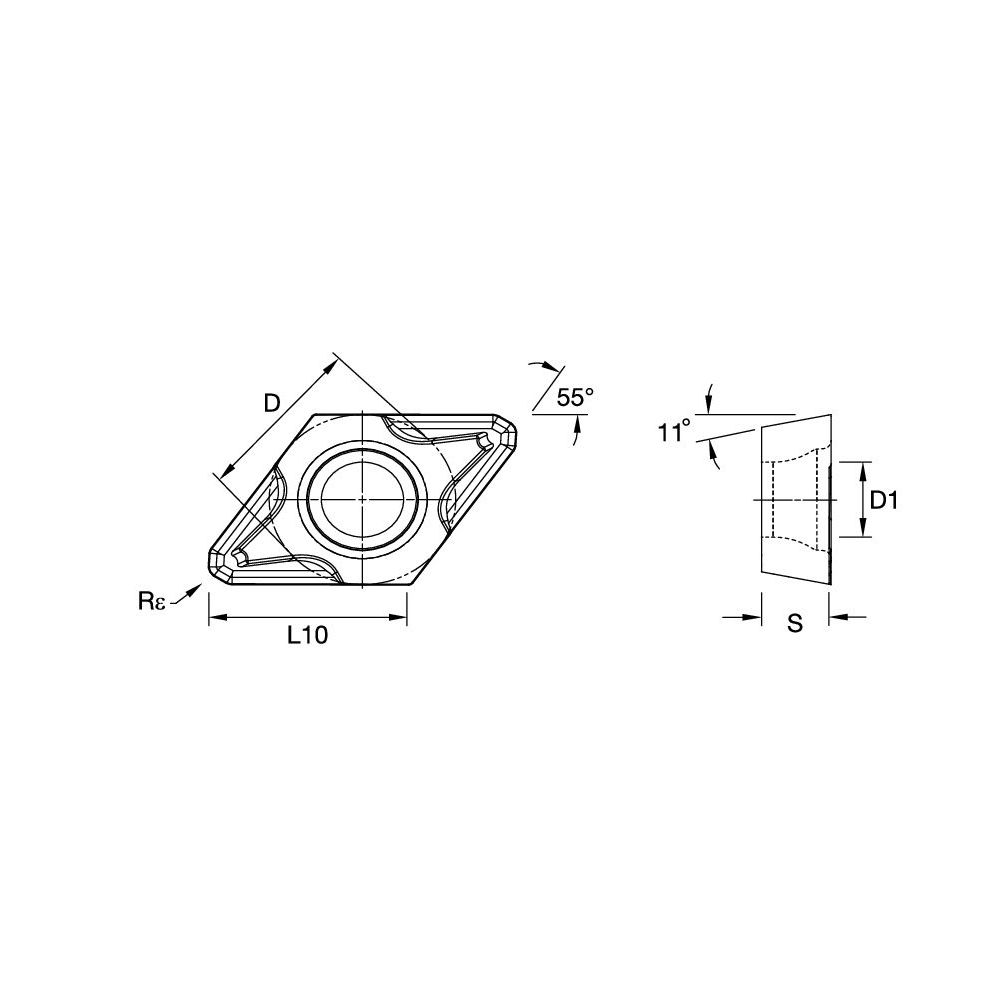

Technical Details
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationFW
Clearance Angle Major [ALPHAN]11.000
Clearance Angle Minor [ALPHANM]11.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialCarbide
Engineering Insert GeometryMT_FW
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.3052
Ins Cut Edge Length Metric [L10]7.7520
Insert Gage Dimension Inch [M]0.1049
Insert Gage Dimension Metric [M]2.6630
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1102
Insert Hole Size Metric [D1]2.8000
Insert IC Size Fraction [D]1/4
Insert IC Size Inch [D]0.2500
Insert IC Size Metric [D]6.3500
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert Rake Angle [GAMMA]5.000
Insert ShapeD-Diamond/Rhombic 55
Insert Thickness Fraction [S]3/32
Insert Thickness Inch [S]0.0938
Insert Thickness Metric [S]2.3800
Lead Angle ANSI [KRA]32.000
Lead Angle ISO [KRI]23.000
Wiper Radius Inch [RW]0.200000
Wiper Radius Metric [RW]5.0800

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
