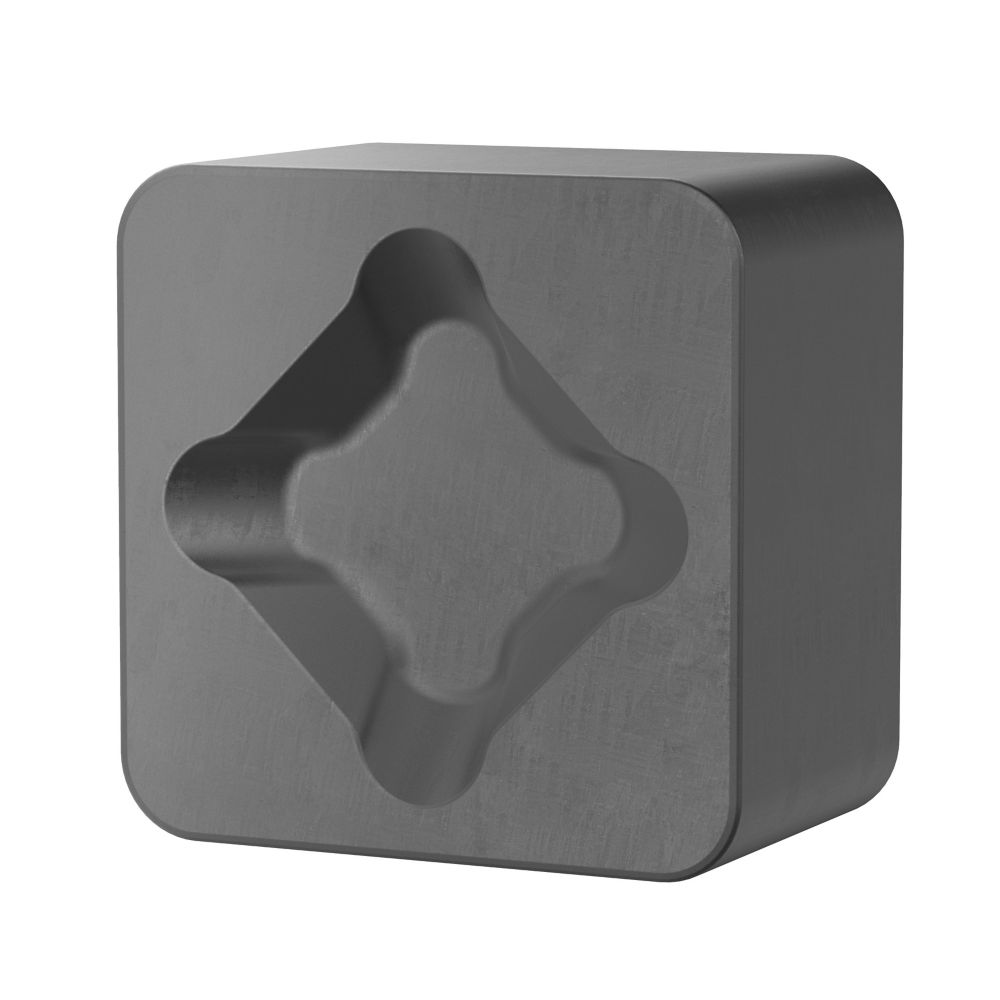

Kennametal • Negative Inserts • SNMX • SNMX120716T02020 KY3500

Name: Kennametal • Negative Inserts • SNMX • SNMX120716T02020 KY3500
SKU: KEN1866357
Availability: InStock

SKU: KEN1866357S/C: 1866357

Usually ships in 5 days

Available in packs of 10. Pricing is for individual items in the pack.

$37.68inc
GSTEACH

Kendex™ Inserts

This product doesn't have any features.

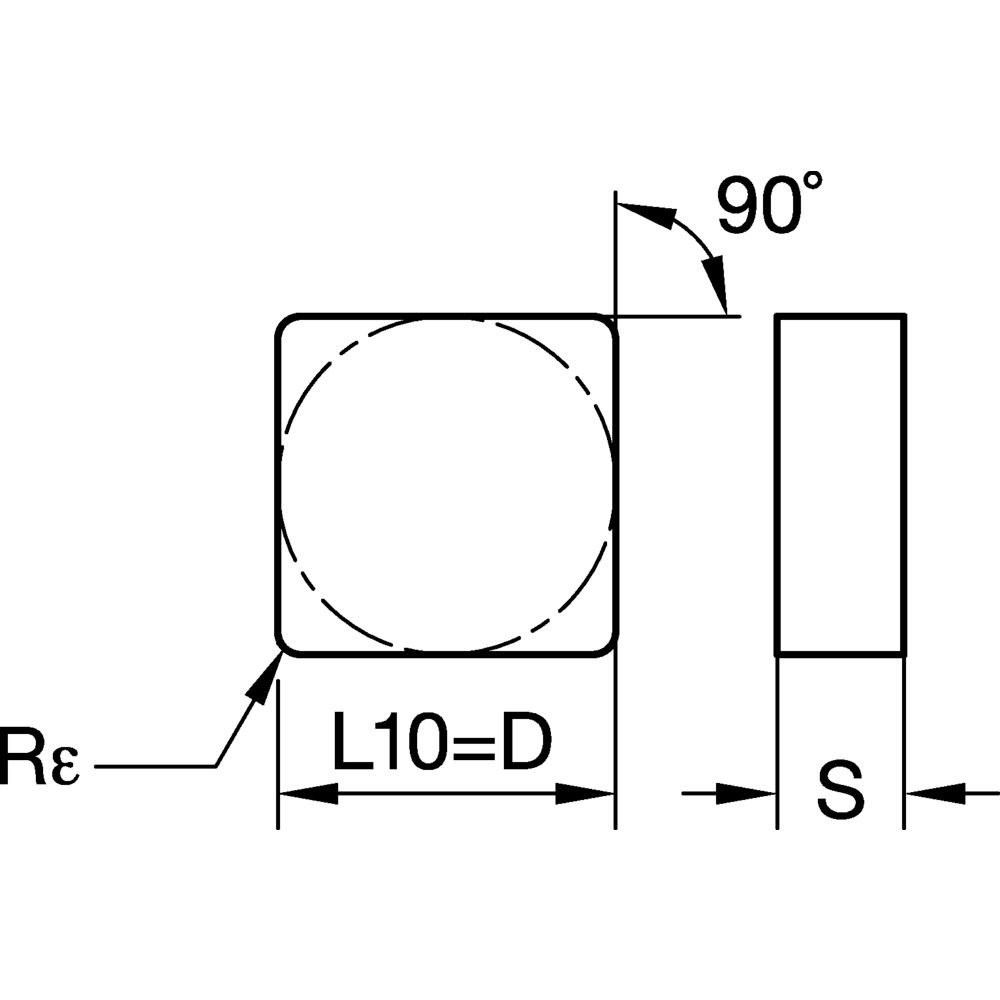

Technical Details
B Gamma Inch [BGAMMA]	0.0080
B Gamma Metric [BGAMMA]	0.2000
Chipbreaker	0-No Chipbreaker
Clearance Angle Major [ALPHAN]	0.000
Clearance Angle Minor [ALPHANM]	0.000
Coating	Uncoated
Corner Radius Frac [REPSILON]	1/16
Corner Radius Inch [REPSILON]	0.062500
Corner Radius Metric [REPSILON]	1.6000
Cutting Tool Material	Ceramic-Si
Engineering Insert Geometry	NMX_T02020_SD
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.5000
Ins Cut Edge Length Metric [L10]	12.7000
Insert Gage Dimension Inch [M]	0.0777
Insert Gage Dimension Metric [M]	1.9730
Insert Hand	N - Neutral
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	5-With Notch Clamping
Insert Num of Cutting Edges	8
Insert Shape	S-Square 90
Insert Thickness Fraction [S]	5/16
Insert Thickness Inch [S]	0.3125
Insert Thickness Metric [S]	7.9380
