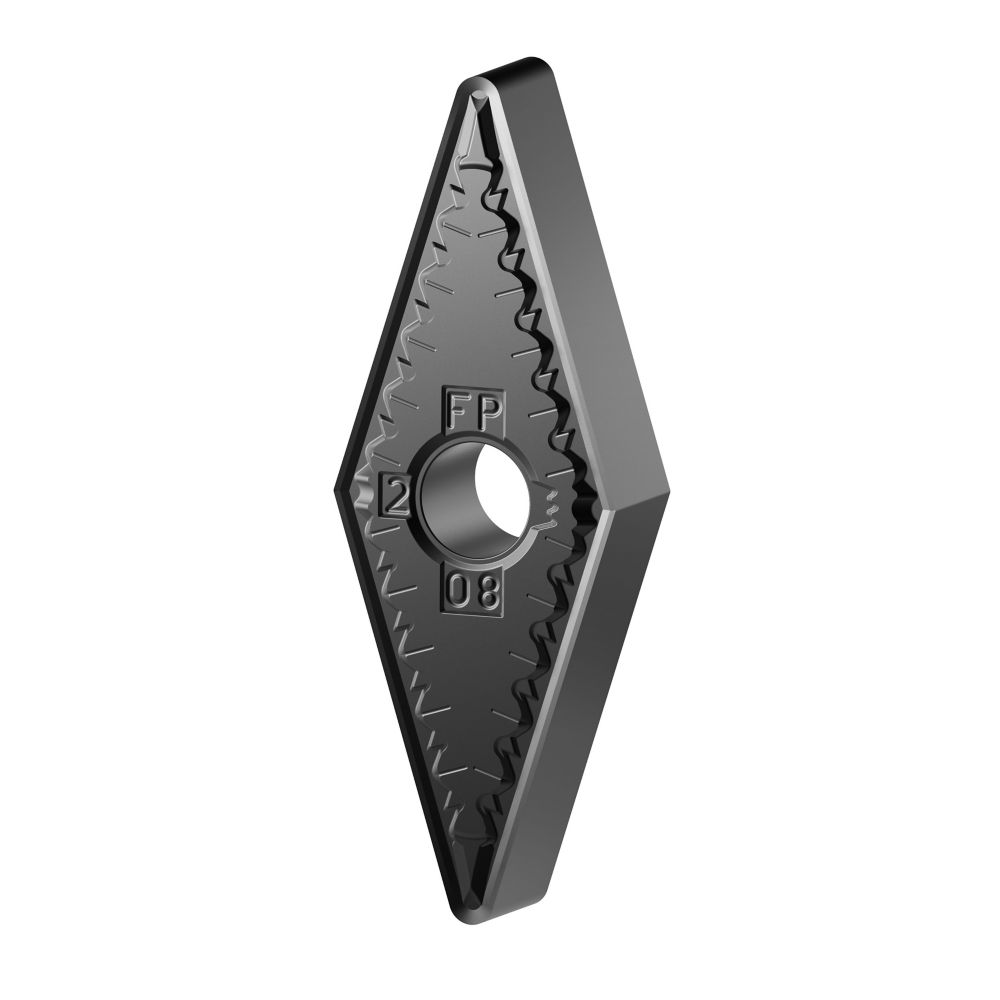

Kennametal • Negative Inserts • VNMG-FP • VNMG160404FP KC5010

Name: Kennametal • Negative Inserts • VNMG-FP • VNMG160404FP KC5010
SKU: KEN1819513
Availability: InStock

SKU: KEN1819513S/C: 1819513

Usually ships in 5 days

$26.62inc
GST

Kenloc™ Inserts

Finishing geometry with positive rake face for chip control in difficult materials
Beyond™ Drive™ grades included

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	FP
Clearance Angle Major [ALPHAN]	0.000
Clearance Angle Minor [ALPHANM]	0.000
Coating	TiAlN

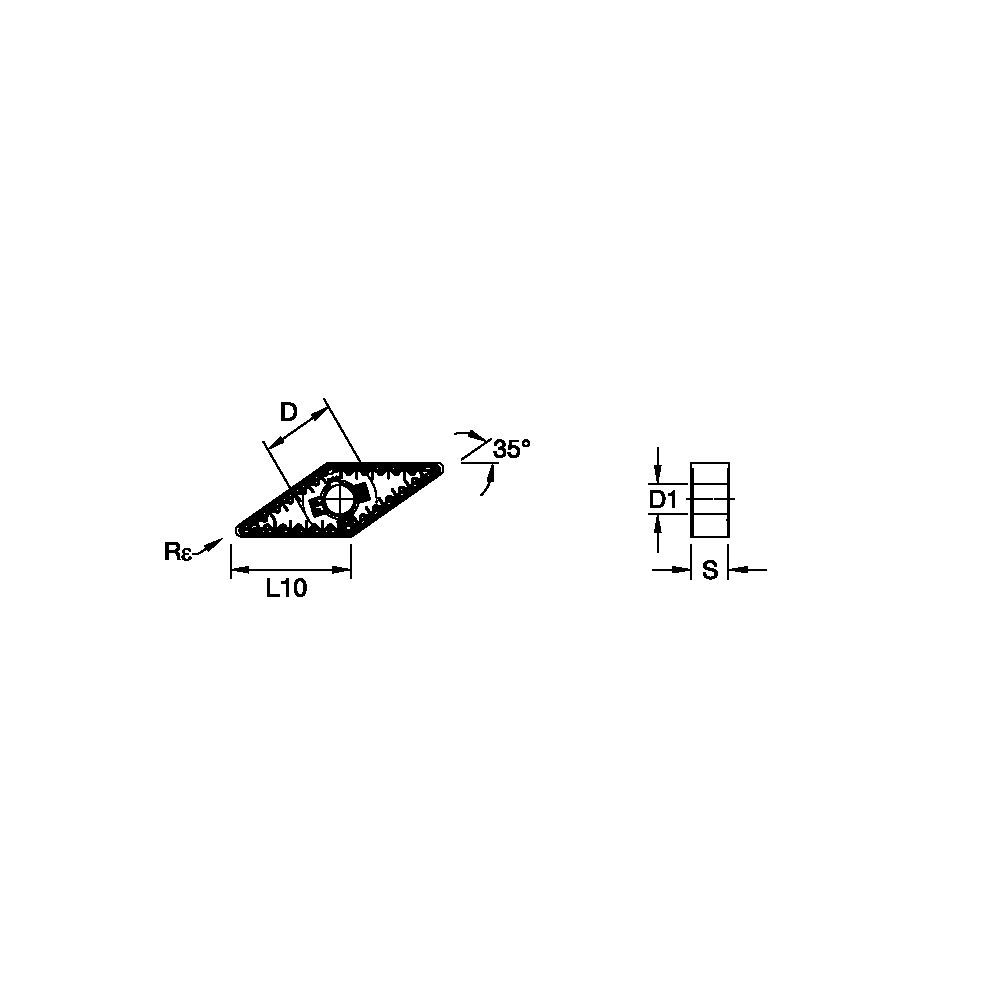

Corner Radius Frac [REPSILON]	1/64
Corner Radius Inch [REPSILON]	0.015625
Corner Radius Metric [REPSILON]	0.4000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MG_FP
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.6538
Ins Cut Edge Length Metric [L10]	16.6060
Insert Gage Dimension Inch [M]	0.3997
Insert Gage Dimension Metric [M]	10.1520
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1500
Insert Hole Size Metric [D1]	3.8100
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	4
Insert Shape	V-Diamond/Rhombic 35
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7600
