Kennametal • KSEM™ • Drill Body • 3xD • SSF Shank • Inch • KSEM0563R3SSF075

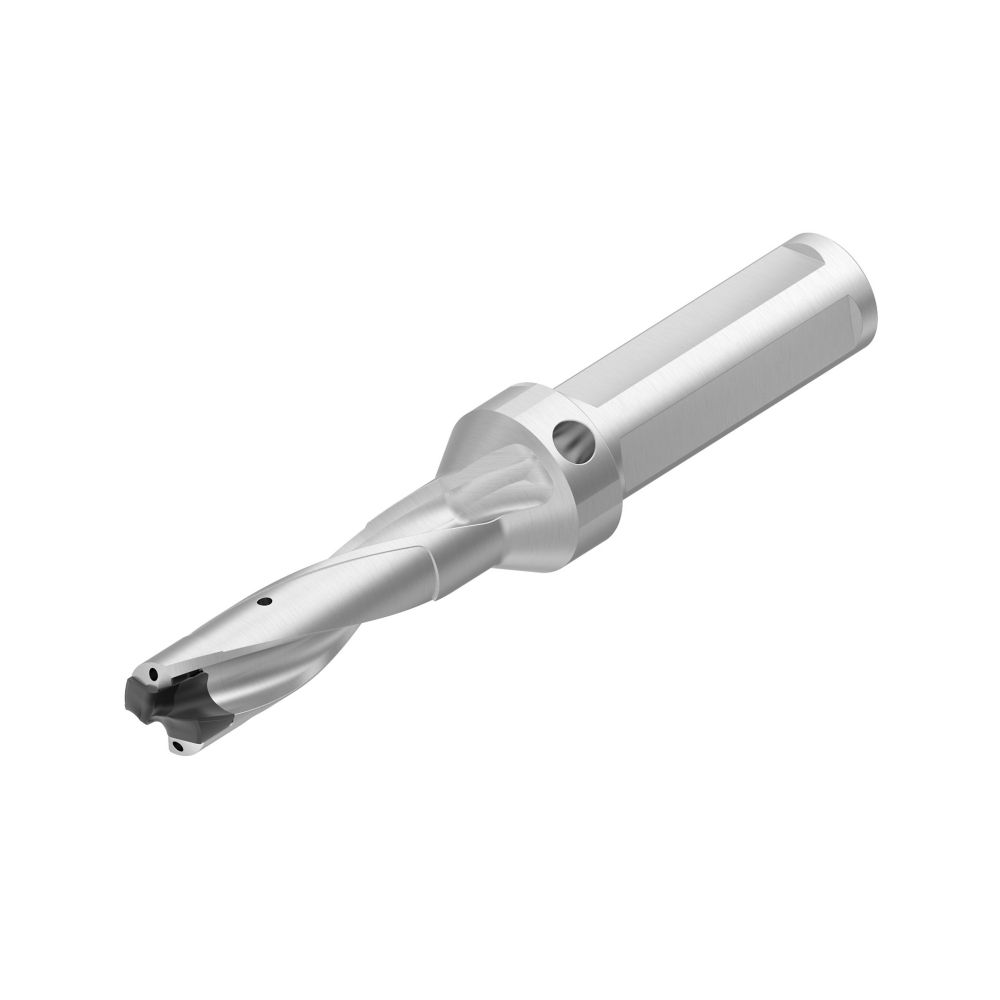

Kennametal • KSEM™ • Drill Body • 3xD • SSF Shank • Inch • KSEM0563R3SSF075 - Image 2

Kennametal • KSEM™ • Drill Body • 3xD • SSF Shank • Inch • KSEM0563R3SSF075

SKU: KEN1785250S/C: 1785250
Usually ships in 5 daysExcluding weekends / Subject to availability

$315.81inc
GST

Price Match

Modular Drilling • Flanged Shank with Flat (SSF)

  • The central locking screw mechanism ensures secure clamping of the insert, resulting in process safety and long tool life for both the drill body and the insert
  • Internal coolant supply directly to the cutting zone, for extended tool life and efficient chip evacuation
More Info
View all:

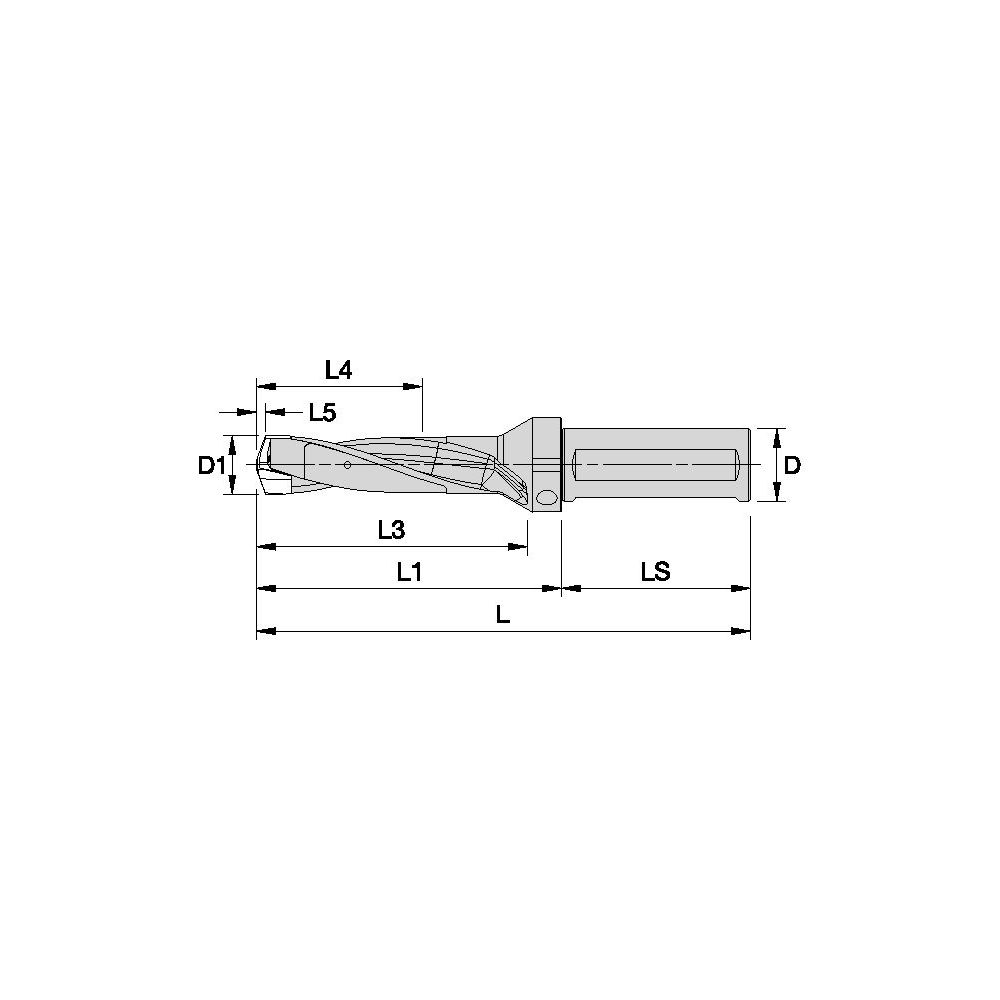

Technical Details
Adapter Style Machine SideCylindrical Shank 2 Flats
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Frac [D]3/4
Adapter/Shank/Bore Dia Inch [D]0.7500
Adapter/Shank/Bore Dia Metric [D]19.0500
Body Dia Workpiece Side Inch [D2]0.5522
Body Dia Workpiece Side Metric [D2]14.0200
Body Material GroupSteel
Clamping Length Inch [L9]2.0000
Clamping Length Metric [L9]50.800
Clamping LG Mach Side Inch [L9MS]2.0000
Clamping LG Mach Side Metric [L9MS]50.8000
Coolant Entry StyleAxial & Radial Coolant
Coolant ExitAngular Axial Coolant Exit
Coolant Size Radial [CF]1/8-27 NPT
Coolant SupplyYes
Coolant Supply Size [CS]1/8-27 NPT
Drill Dia Max Inch [D1MAX]0.5748
Drill Dia Max Metric [D1MAX]14.6000
Drill Diameter Min Frac [D1]9/16
Drill Diameter Min Inch [D1]0.5625
Drill Diameter Min Metric [D1]14.2870
Drill Flute DesignHelical Flute
Drill Point Length Inch [L5]0.0893
Drill Point Length Metric [L5]2.2680
Drill Tool DesignS-Steel Body
FamilyKSEM
Flute Length Inch [L3]2.1860
Flute Length Metric [L3]55.5240
Functional Length Inch [LF]2.6768
Functional Length Metric [LF]67.9900
Gage Ins 1 First Dia OutsideKSEM0563
Gage Length Inch [L1]3.0620
Gage Length Metric [L1]77.7750
Hand of ToolR - Right
Ins Atch LG Hldr Inch [LATTH]2.6768
Ins Atch LG Hldr Metric [LATTH]67.9900
Insert ShapeKSEM Drill
Insert/Blade Seat Size [SSC]B
Length/Diameter Ratio [L4/D1]3
Max Drill Depth Inch [L4]1.6875
Max Drill Depth Metric [L4]42.8630
Maximum Body Diameter Inch [D5]1.1250
Maximum Body Diameter Metric [D5]28.5750
Num of Insert Cutting Dia 11
Number of Flutes2
Overall Length Inch [L]5.0620
Overall Length Metric [L]128.5750
Shank Length Inch [LS]2.0000
Shank Length Metric [LS]50.8000
Tool Assembly Length Inch [LTA]2.6768
Tool Assembly Length Metric [LTA]67.9900
