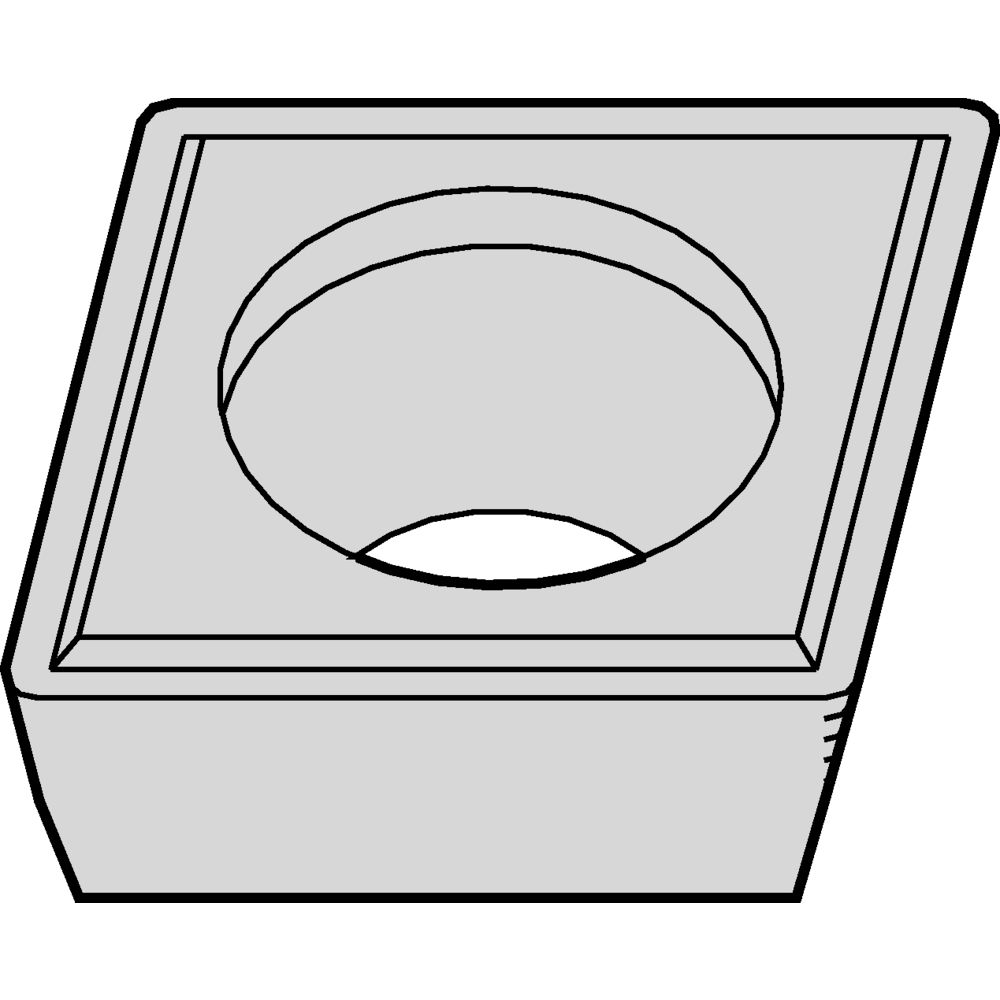

Kennametal • Positive Inserts • CPGT • CPGT060204K KC5010

Name: Kennametal • Positive Inserts • CPGT • CPGT060204K KC5010
SKU: KEN1310803
Availability: InStock

SKU: KEN1310803S/C: 1310803

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$16.17inc
GSTEACH

Screw-On Inserts

This product doesn't have any features.

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	K
Clearance Angle Major [ALPHAN]	11.000
Clearance Angle Minor [ALPHANM]	11.000
Coating	TiAlN
Corner Radius Frac [REPSILON]	1/64
Corner Radius Inch [REPSILON]	0.015625
Corner Radius Metric [REPSILON]	0.4000
Cutting Tool Material	Carbide
Engineering Insert Geometry	_K
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.2539
Ins Cut Edge Length Metric [L10]	6.4480
Insert Gage Dimension Inch [M]	0.0608
Insert Gage Dimension Metric [M]	1.5440
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1100
Insert Hole Size Metric [D1]	2.8000
Insert IC Size Fraction [D]	1/4
Insert IC Size Inch [D]	0.2500
Insert IC Size Metric [D]	6.3500
Insert Mounting	3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges	2
Insert Shape	C-Diamond/Rhombic 80
Insert Thickness Fraction [S]	3/32
Insert Thickness Inch [S]	0.0938
Insert Thickness Metric [S]	2.3800
