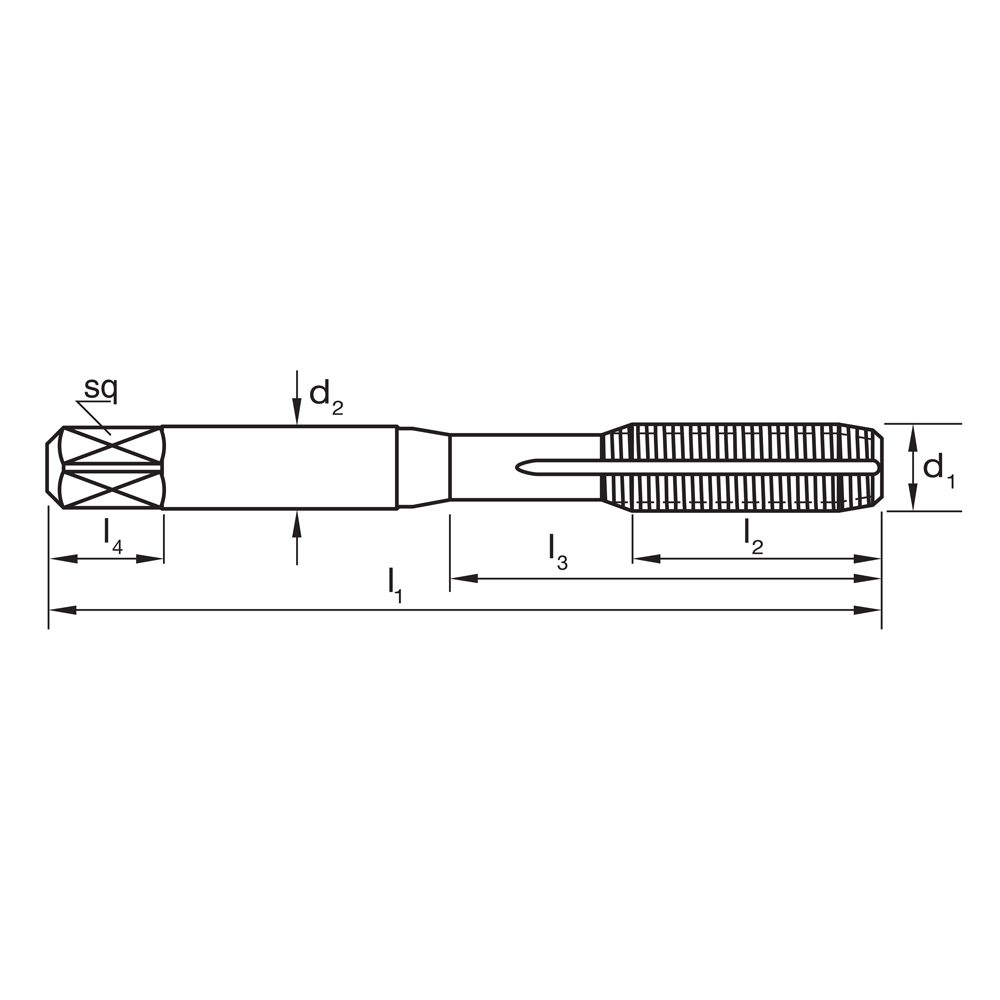

| Technical Details | |
|---|---|
| l2 | 17 |
| d1 | 5/32 |
| Drill Ø | 3.6 |
| Finish | TiN |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 1.5xD |
| l1 | 53 |
| d2 | 4 |
| sq | 3.15 |
| Thread Form | BSW |
| TPI | 32 |
| Type | Fluteless - Single Coolant Groove |

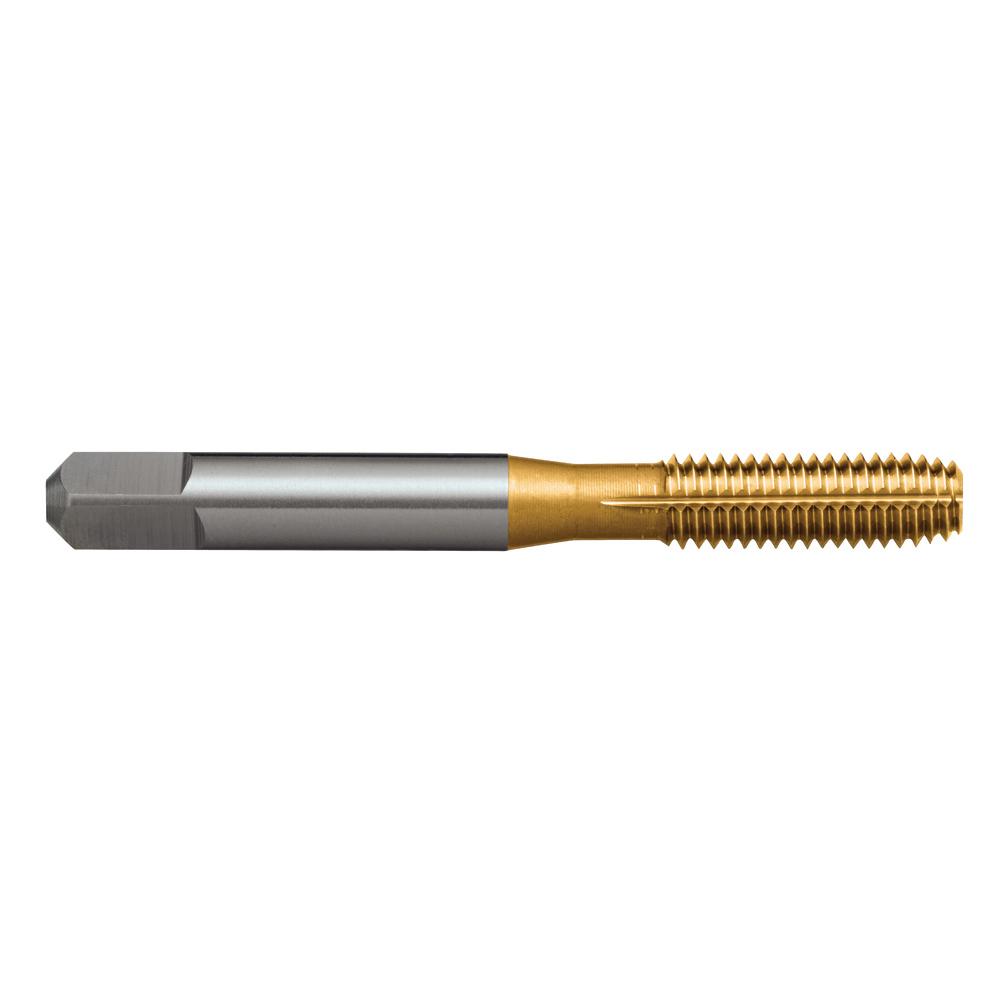

TAP T464 BSW 5/32-32 Z3 FORMING ISO529 Bott HSSE TiN
$126.42inc
GST
Thread Forming Taps – BSW – Short
- For cold forming of threads in materials with good flow characteristics
- Through or blind holes
- Depths up to approx. 1.5 x d1
- TiN for longer tool life
View all: HSS Taps - Machine - Forming
