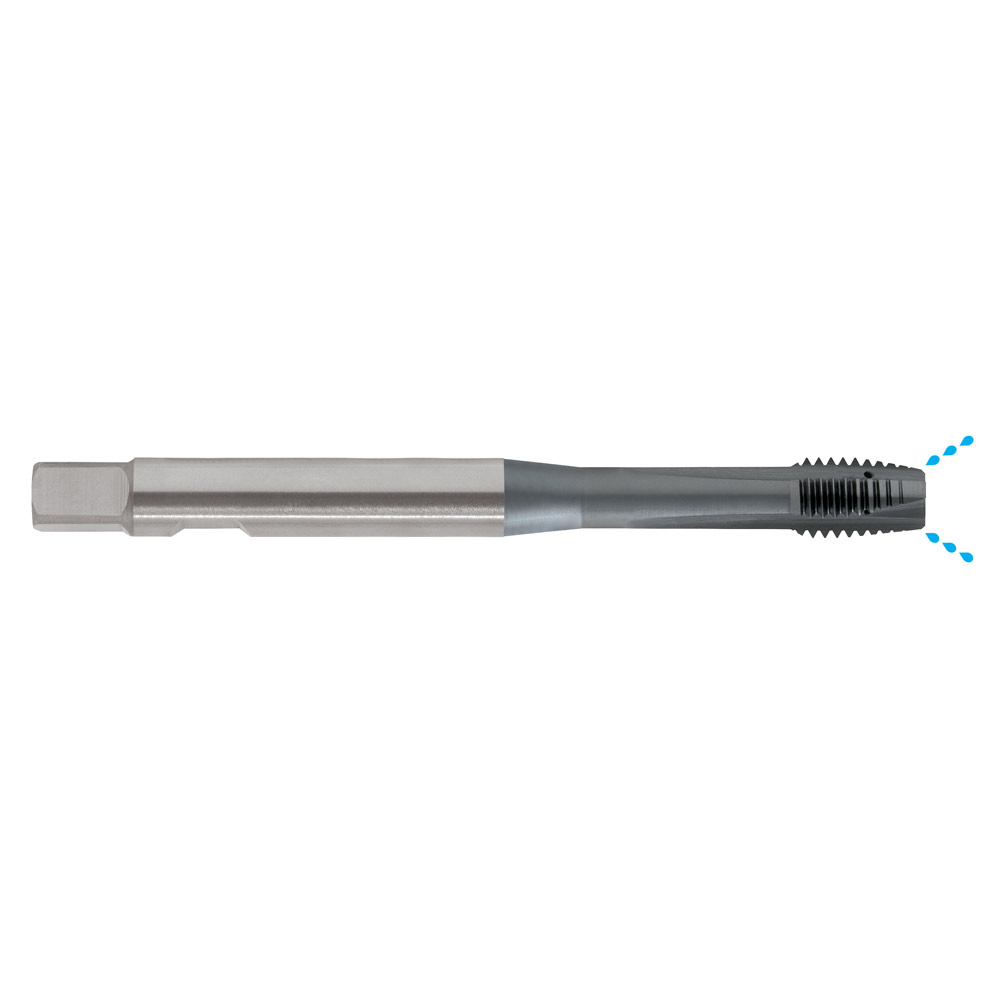

TAP T379 M 10 x 1.5 6HX GUN IK D1835-B B PM-V3 TiCN SYNCHRO
TAP T379 M 10 x 1.5 6HX GUN IK D1835-B B PM-V3 TiCN SYNCHRO - Image 2

TAP T379 M 10 x 1.5 6HX GUN IK D1835-B B PM-V3 TiCN SYNCHRO

SKU: SUTT3791000S/C: T3791000Barcode: 9311963430966
Usually ships in 1 dayExcluding weekends / Subject to availability

$254.69inc
GST

Price Match

Spiral Point (Gun) Taps – Synchro – IK

  • For high speed and precision tapping
  • For rigid tapping in CNC machines with synchronised feed
  • Suitable for materials up to 850N/mm2
  • Through holes up to 2 x d1
  • h6 endmill shank
More Info
View all:

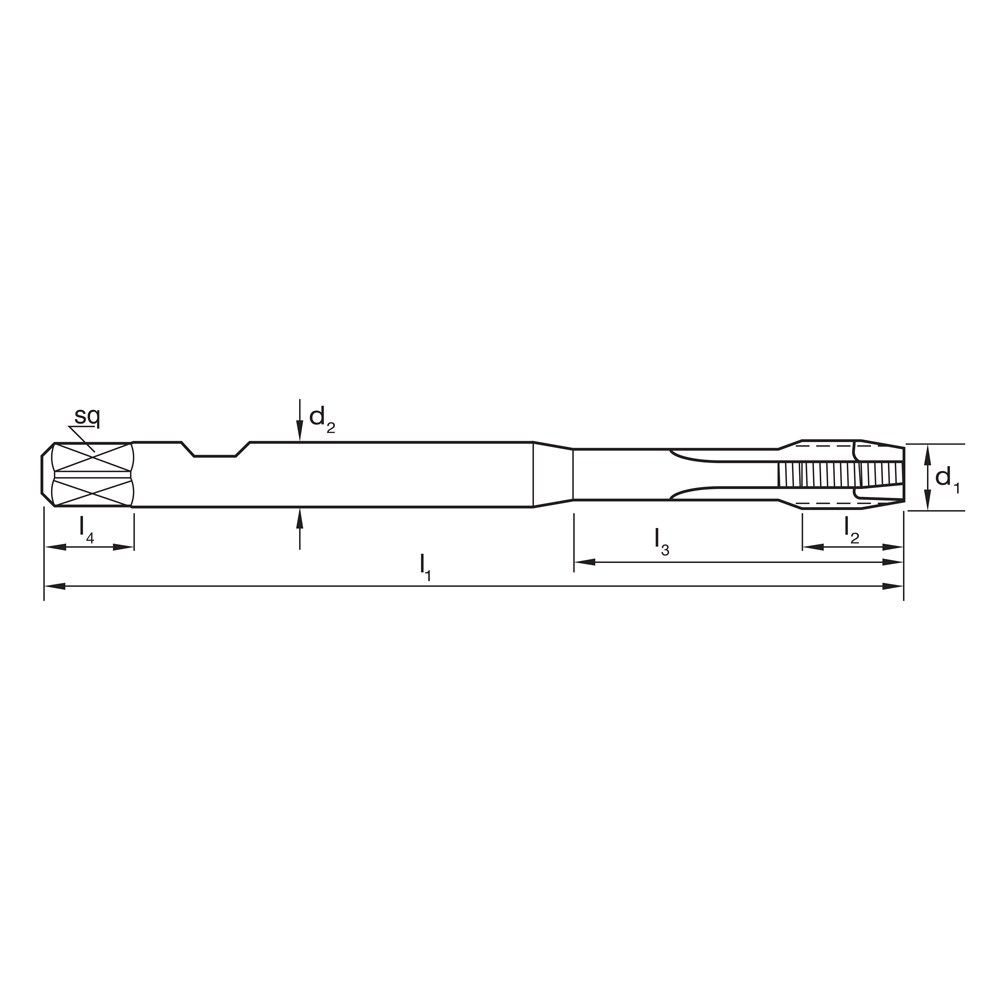

Technical Details
l215
d1M10
Drill Ø8.5
FinishTiCN
LeadForm B / 4.5 x P
MaterialPM-HSSE V3
Max Cut Depth2xD
l1100
Pitch1.5
d210
sq8
Thread FormM
TypeSpiral Point (Gun)

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
