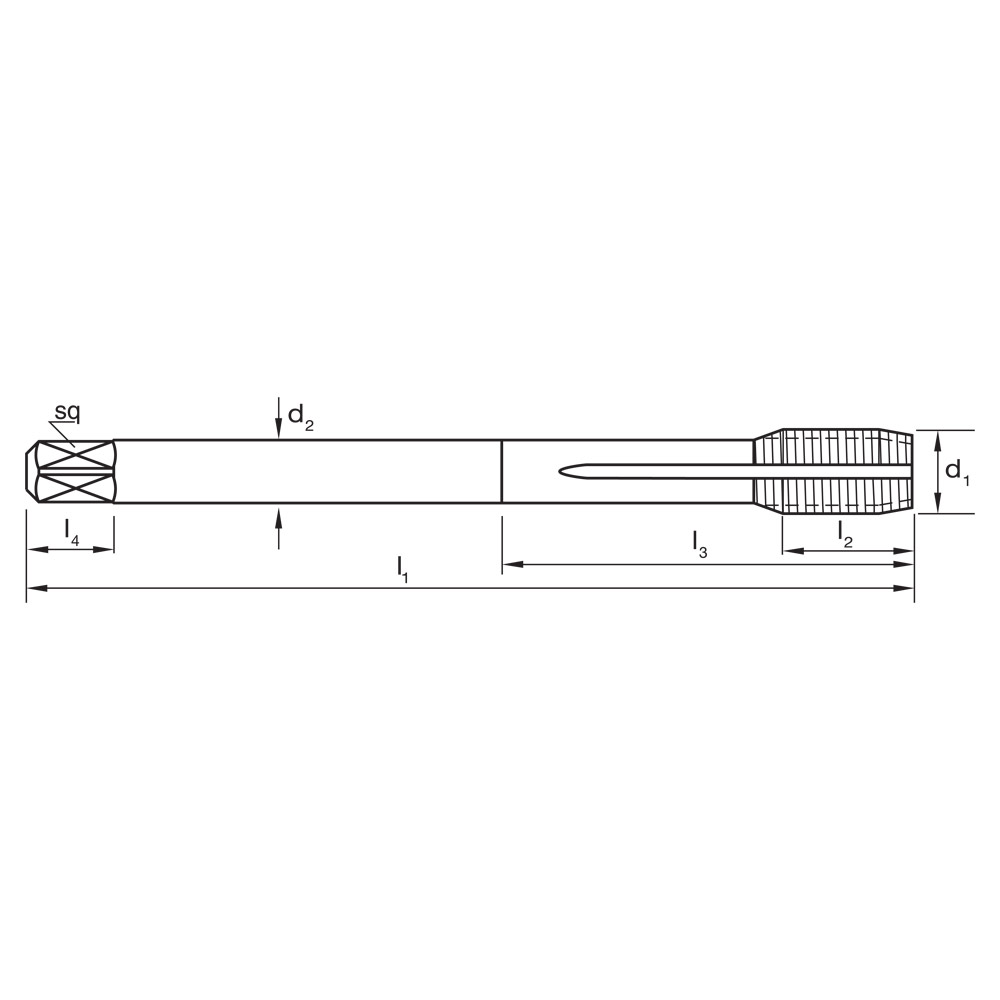

| Technical Details | |
|---|---|
| l2 | 25 |
| d1 | M16 |
| Drill Ø | 15.1 |
| Finish | TiAlN |
| Lead | Form C / 3 x P |
| Material | SPM |
| Max Cut Depth | 3xD |
| l1 | 110 |
| Pitch | 2 |
| d2 | 12 |
| sq | 9 |
| Thread Form | M |
| Type | Fluteless - Multi Coolant Groove |

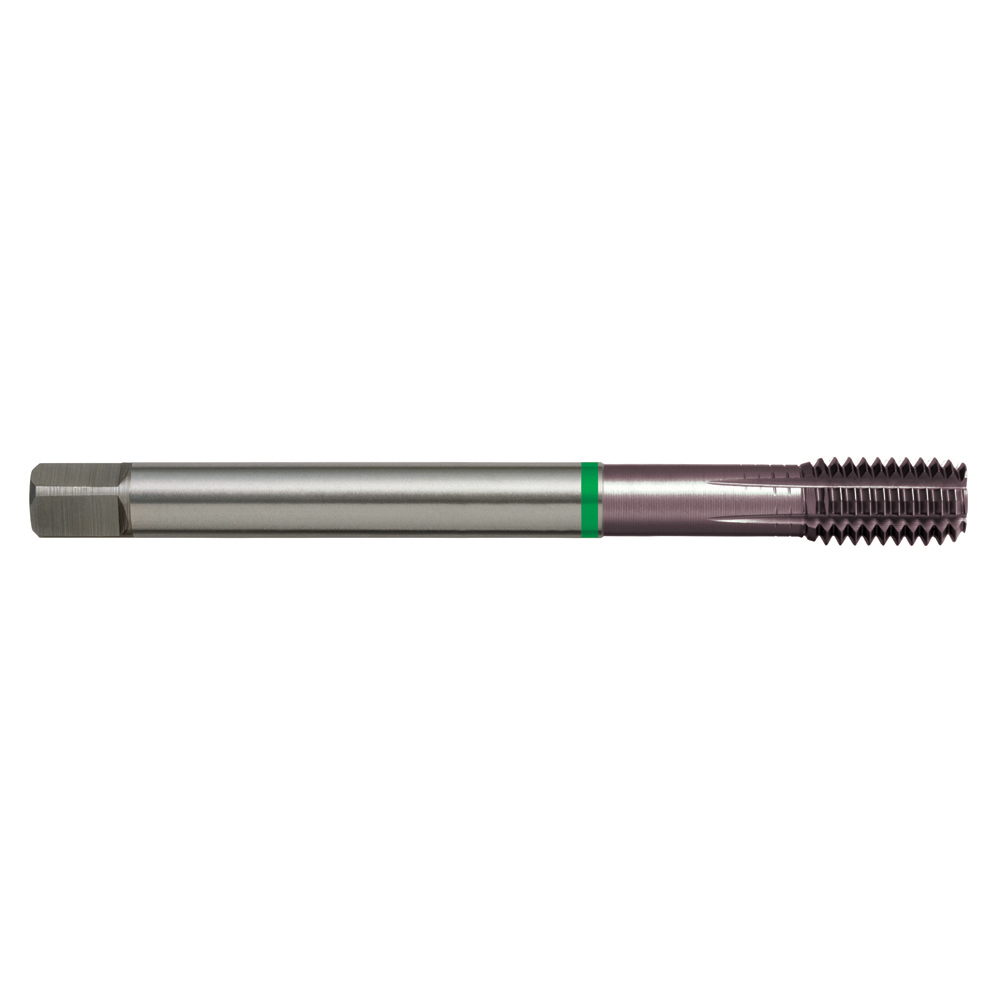

TAP T326 M 16 x 2 6HX FORMING UNI DIN2174 C SPM TiAlN
$242.94inc
GST
Thread Forming Taps – Multi Coolant Groove – UNI
- SPM for superior performance
- Application specific geometry
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
View all: High Performance Taps - Forming
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
Only logged in customers who have purchased this product may leave a review.
