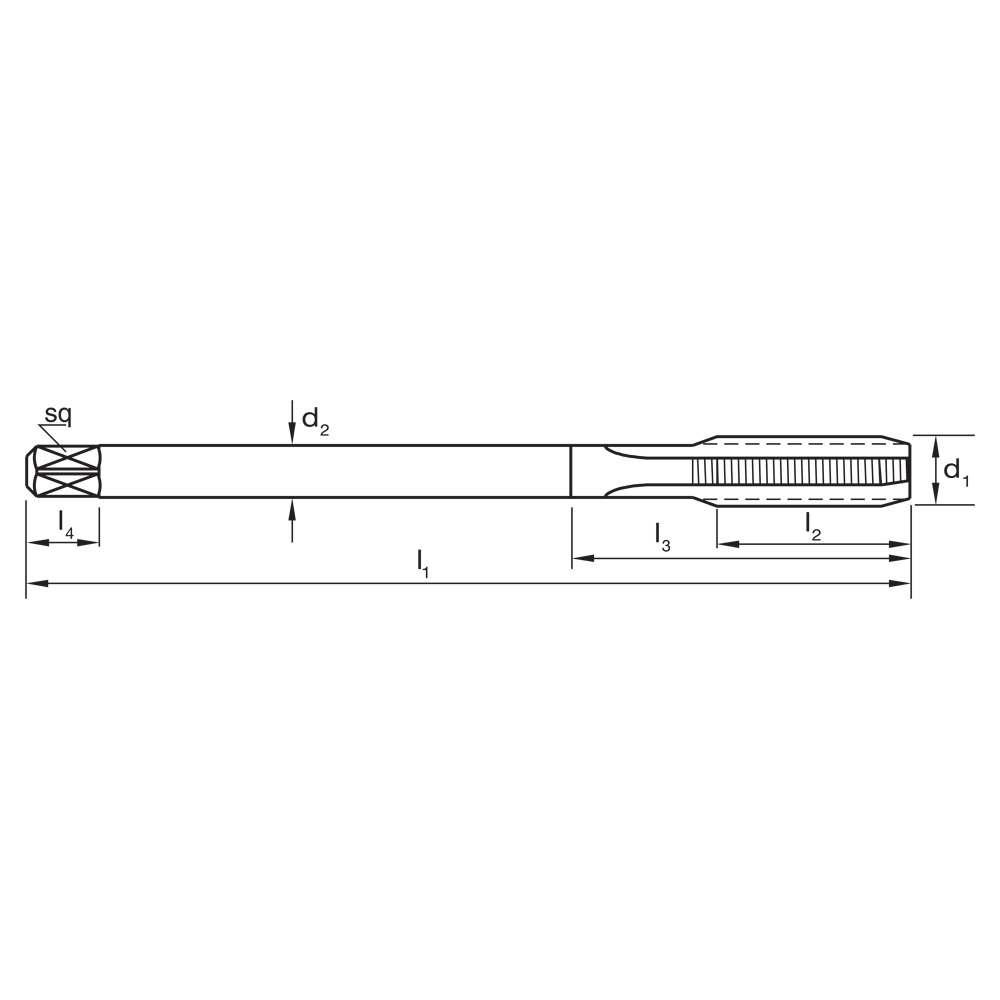

| Technical Details | |
|---|---|
| d1 | M10 |
| d2 | 7 |
| Drill Ø | 8.5 |
| Finish | Brt |
| l1 | 100 |
| l2 | 24 |
| Lead | Form C / 3 x P |
| Material | HSSE V3 |
| Max Cut Depth | 1.5xD |
| Pitch | 1.5 |
| sq | 5.5 |
| Thread Form | M |
| Type | Straight Flute |

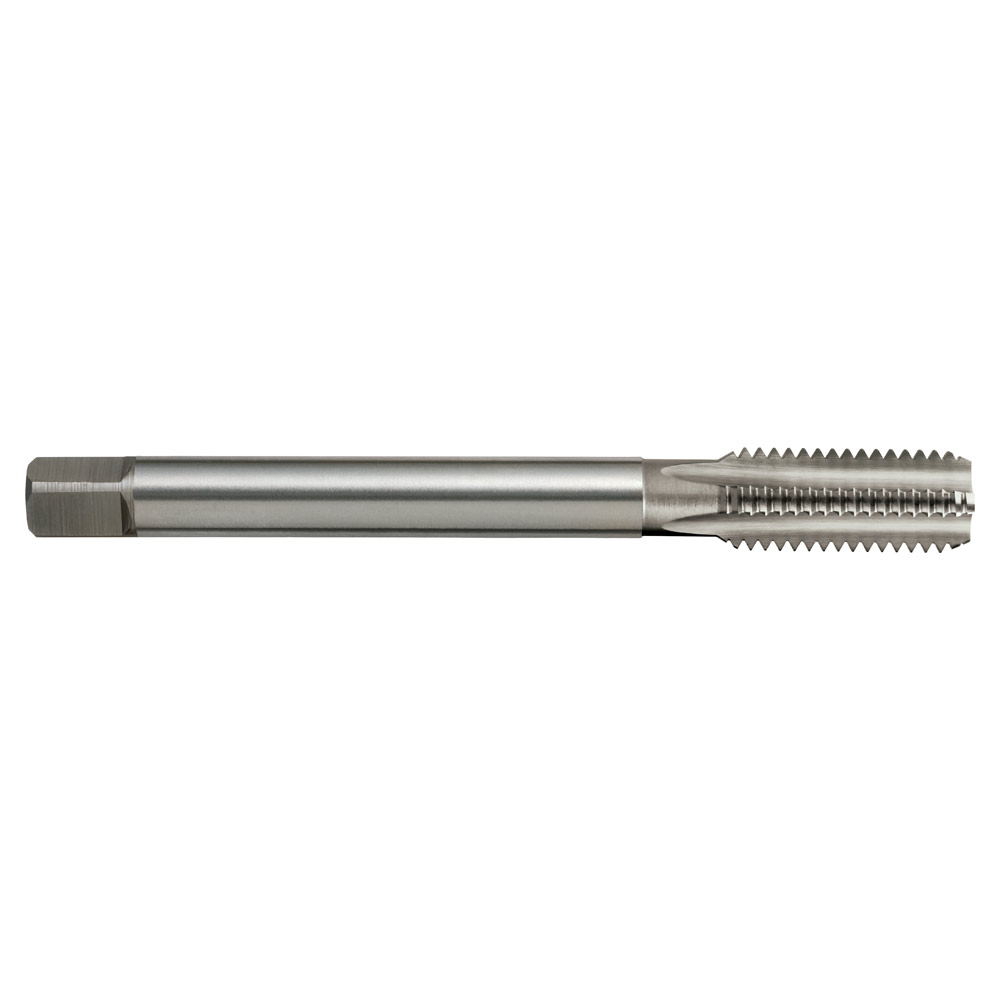

TAP T287 M 10 x 1.5 6H STRAIGHT N DIN376 C HSSE
$55.33inc
GST
Straight Flute Taps – N
- General purpose use
- Suitable for materials up to 1000N/mm2
- Through & blind holes
- Depths up to 1.5 x d1
View all: High Performance Taps - Straight Flute
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
