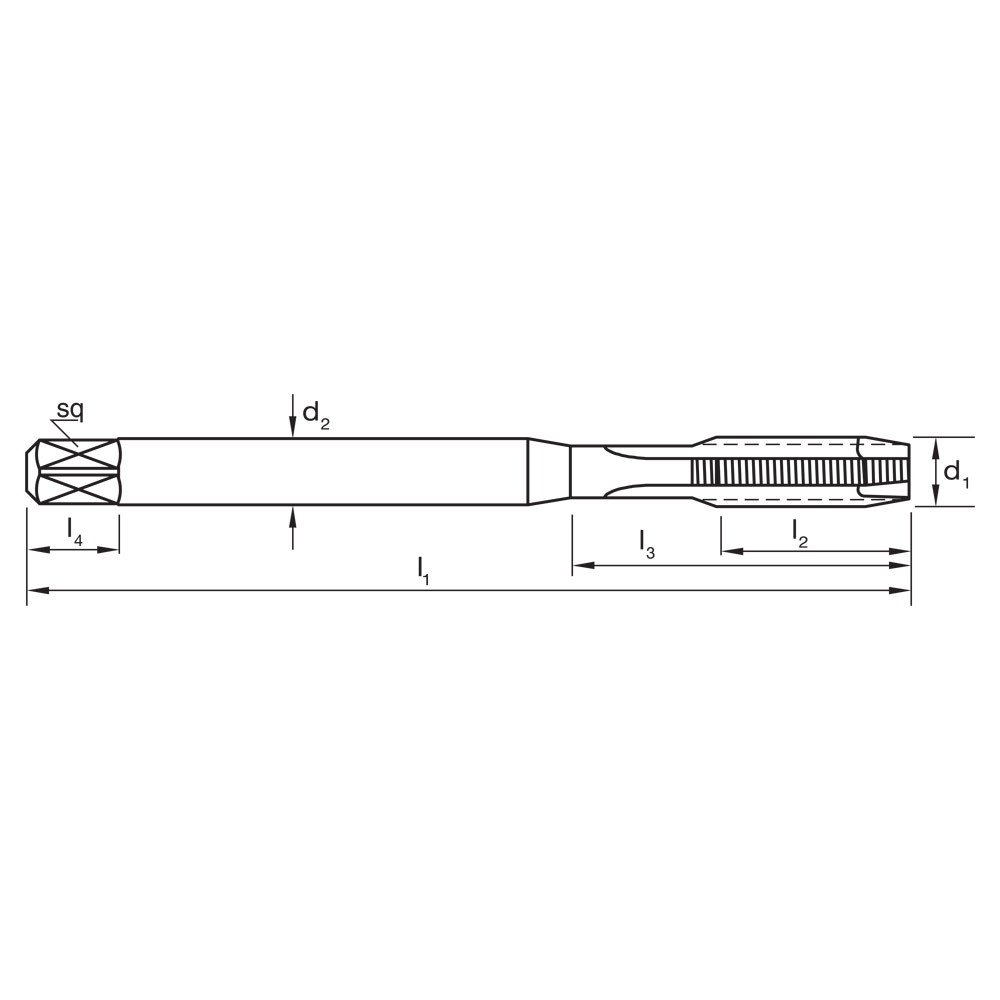

| Technical Details | |
|---|---|
| l2 | 16 |
| d1 | #10 |
| Drill Ø | 3.8 |
| Finish | TiCN |
| Lead | Form B / 4.5 x P |
| Material | HSSE V3 |
| Max Cut Depth | 3xD |
| l1 | 70 |
| d2 | 6 |
| sq | 4.9 |
| Thread Form | UNC |
| TPI | 24 |
| Type | Spiral Point (Gun) |

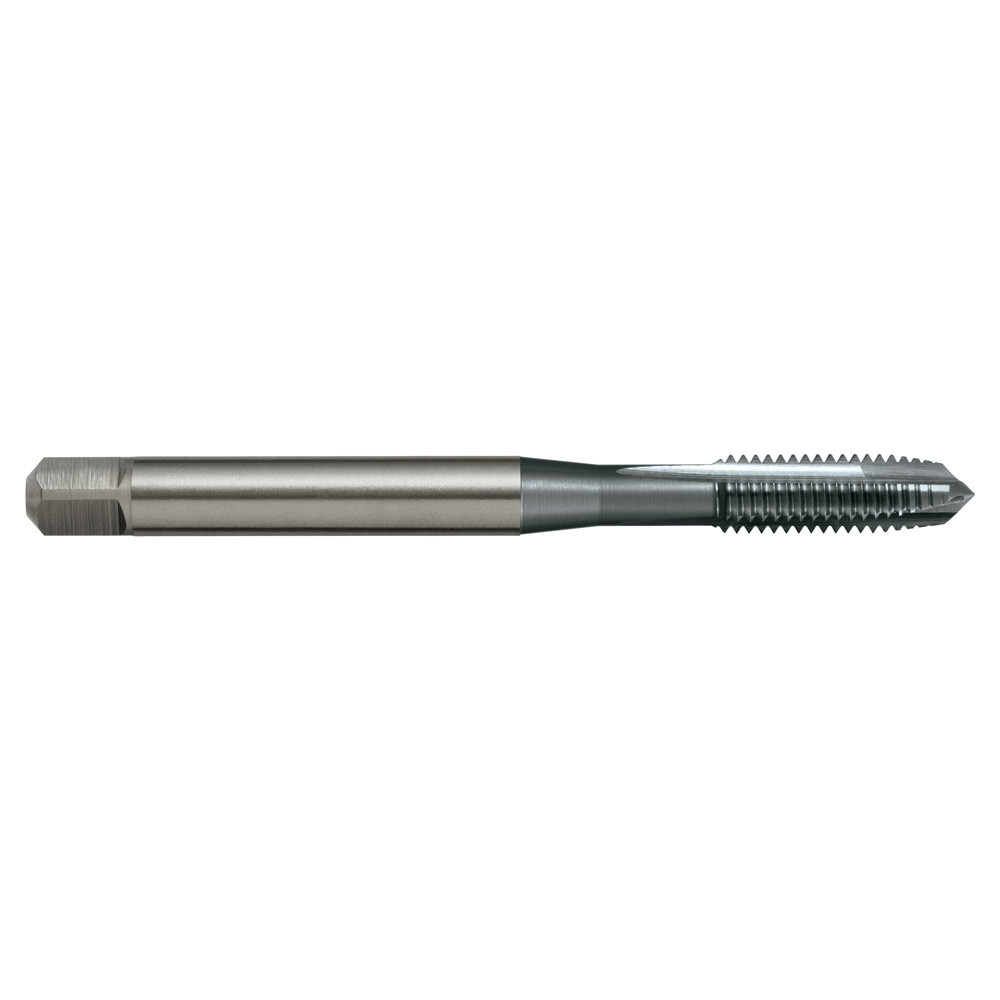

TAP T171 UNC 10-24 2B GUN VA DIN2184-1 B HSSE TiCN
$46.72inc
GST
Spiral Point (Gun) Taps – VA
- Use in stainless steels and high strength steels up to 1000N/mm2
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
