| Technical Details | |
|---|---|
| Capacity (Depth) | 110.00mm |
| Capacity (Diameter) | 80.00mm |
| Height | 554mm min/744mm max |
| Input Power | 1600 Watt Single Phase 240V |
| Magnetic Dead Lift | 11000Nm Magnetic dead lift on 25mm steel plate |
| Motor Power | 1500 Watt |
| Speed | 2 Speed variable gearbox (120-190 / 290-450rpm) |
| Stroke | 190mm Stroke |
| Through Coolant | Yes |
| Weight | 18.00kg |

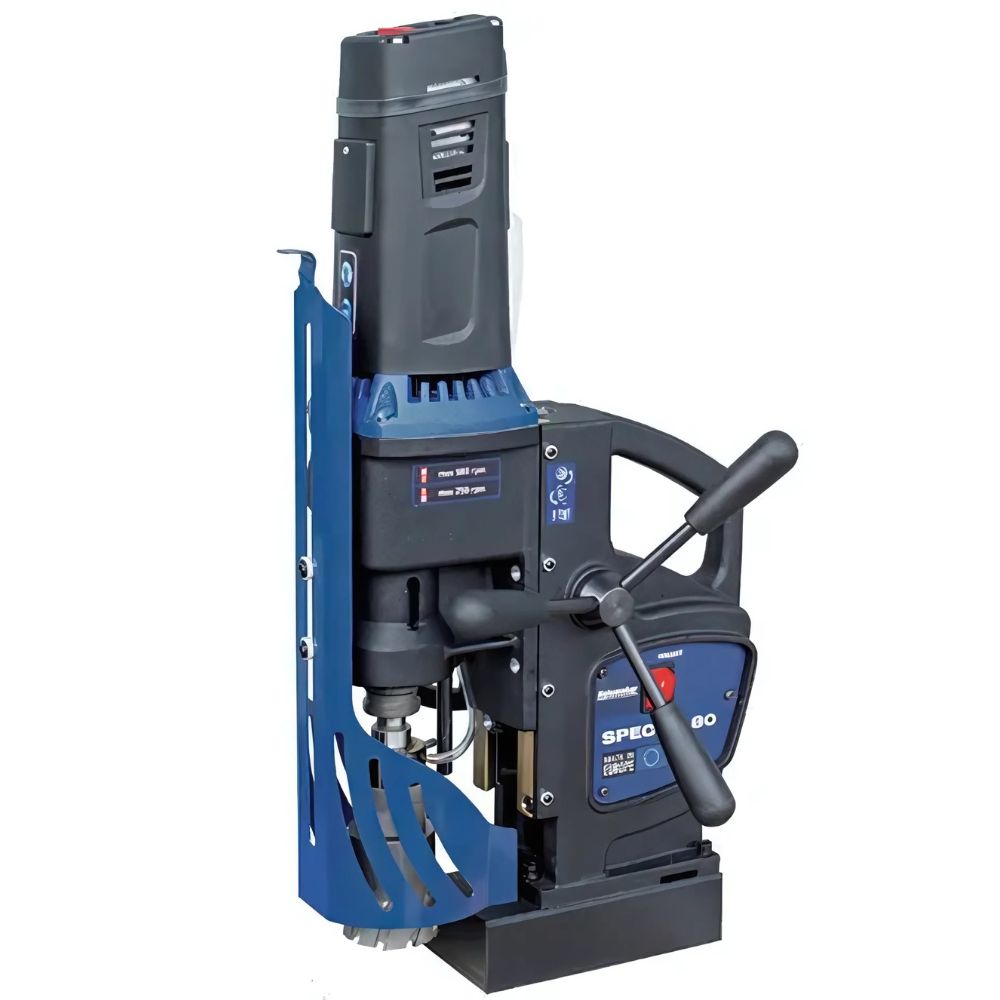

Holemaker Special 80 Magnetic Base Drill, 240v, 3mt, Cap: 80mm Dia X 110mm
$5,941.94inc
GST
For extreme drilling requirements demanding both large diameters and exceptional depth, the Holemaker Special 80 is the ultimate powerhouse. This specialised, European-engineered magnetic base drill is specifically designed for tackling challenging applications where standard depth drills fall short. It boasts a massive 80mm diameter capacity using annular cutters and combines this with an extraordinary 110mm maximum cutting depth, making it ideal for drilling through thick structural sections, complex fabrications, or stacked materials in a single pass.
Driven by a robust 1800W motor paired with a versatile 2-speed gearbox, the Special 80 provides ample torque and allows for speed optimisation based on cutter size and material, ensuring efficient performance and longevity of your tooling. The integrated MT3 morse taper spindle significantly enhances its versatility, enabling the use of large-diameter twist drills, taps, and reamers. Despite its immense capability, it incorporates essential safety features and smart magnet technology for secure adhesion. The integrated through-spindle coolant system ensures cuts remain cool and efficient, even during deep drilling operations.
- Exceptional Cutting Depth: Drills up to an impressive 110mm deep
- Large Diameter Capacity: Handles annular cutters up to 80mm in diameter
- Powerful 1800W Motor: High-torque performance for heavy-duty drilling
- Versatile 2-Speed Gearbox: Optimises cutting speed for different applications
- MT3 Morse Taper Spindle: Accepts large twist drills, taps, and reamers
- Smart Magnet Technology: Ensures strong and secure adhesion during operation
| Product Data Sheets |
|---|
| hmspecial80 u |
| Safety Data Sheets |
|---|
| hmspecial80 b |
This product is handy for all trades.
