| Technical Details | |
|---|---|
| Capacity (Depth) | 110.00mm |
| Capacity (Diameter) | 120.00mm |
| Height | 597mm min/822mm max |
| Magnetic Dead Lift | 18,000Nm Magnetic dead lift on 25mm steel plate |
| Motor Power | 2150 Watt 240V motor |
| Speed | 4 Speed variable gearbox (75-110 / 135-200 / 220-320 / 390-570rpm) |
| Stroke | 225mm Stroke |
| Through Coolant | Yes |
| Weight | 25.00kg |

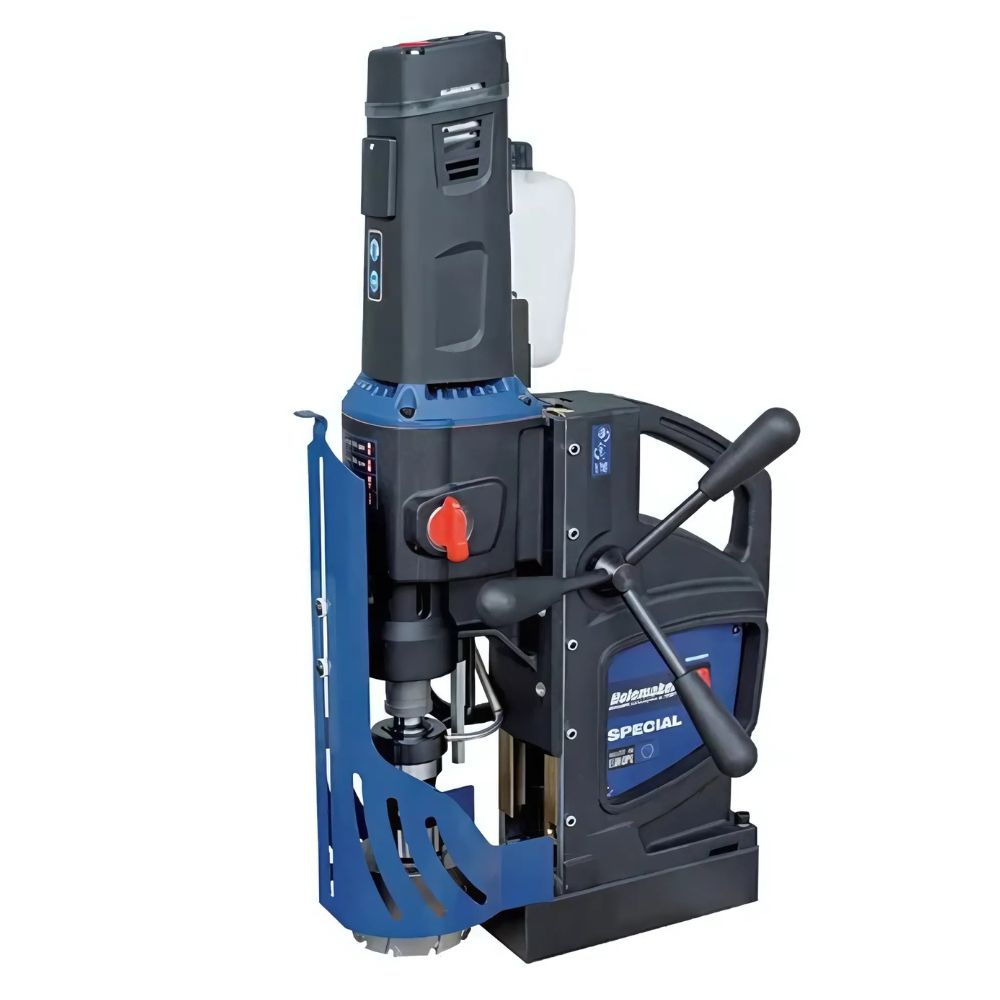

Holemaker Special 110 Magnetic Base Drill, 240v, 3mt, Cap: 120mm Dia X 110m
$7,129.41inc
GST
Push the boundaries of magnetic drilling with the Holemaker Special 110, a specialised machine engineered for extreme diameter and depth applications. When standard drills reach their limits, the Special 110 steps in, offering an incredible 120mm diameter capacity with annular cutters and an exceptional 110mm maximum cutting depth. This makes it the ultimate solution for heavy engineering tasks, thick plate drilling, large-scale structural work, and any job requiring deep, large-diameter holes in a single, efficient pass.
Manufactured in Europe, this powerhouse features a robust 1800W motor coupled with a versatile 2-speed gearbox, providing the necessary torque and speed control for tackling demanding materials and large cutter sizes. The integrated MT3 morse taper spindle significantly expands its versatility, allowing the use of large twist drills, taps, and reamers. Despite its massive capacity, the Special 110 incorporates smart magnet technology for secure adhesion and essential safety features like overload protection. The through-spindle coolant system ensures optimal cutting performance and extended tool life, even during prolonged deep-drilling operations.
- Extreme Diameter Capacity: Drills massive holes up to 120mm using annular cutters
- Exceptional Cutting Depth: Achieves an impressive maximum depth of 110mm
- Powerful 1800W Motor: Delivers high torque for heavy-duty drilling applications
- Versatile 2-Speed Gearbox: Optimises speed for large cutter diameters and materials
- MT3 Morse Taper Spindle: Accepts large twist drills, taps, and other morse taper tooling
- Smart Magnet Technology: Ensures strong and reliable adhesion to the workpiece
| Product Data Sheets |
|---|
| hmspecial110 u |
| Safety Data Sheets |
|---|
| hmspecial110 b |
This product is handy for all trades.
