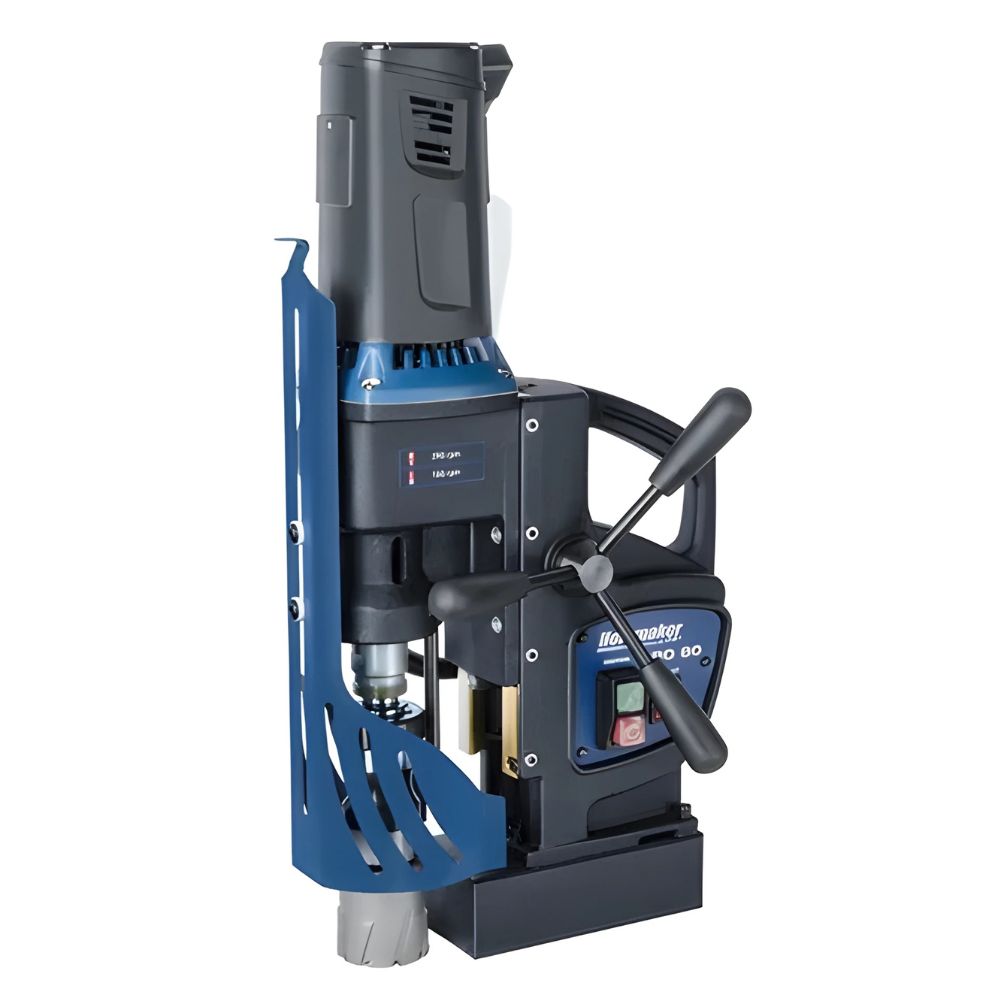

Holemaker Pro80 Magnetic Base Drill, 240v, 3mt, Cap: 80mm Dia X 75mm

SKU: HOLHMPRO80S/C: HMPRO80Barcode: 9328042048202
Usually ships in 2 daysExcluding weekends / Subject to availability

$5,384.50inc
GST

When maximum capacity and unwavering power are essential, the Holemaker PRO 80 stands ready to deliver. This top-tier, European-manufactured magnetic base drill is engineered for the most demanding heavy-duty applications in structural steel, shipbuilding, mining, and large-scale infrastructure projects. Capable of drilling enormous holes up to 80mm in diameter and 75mm deep with annular cutters, the PRO 80 is built to tackle the biggest drilling challenges with precision and reliability.

At its core lies a formidable 1700W motor, paired with a sophisticated 4-speed gearbox featuring electronic speed control. This combination provides exceptional torque and allows operators to precisely match the cutting speed to the cutter diameter and material type, maximising efficiency and significantly extending tool life. The versatile MT3 morse taper spindle further enhances its capability, readily accepting large twist drills, taps, and reamers. Advanced safety features, including overload protection, emergency stop, and smart magnet technology ensure operator safety is paramount, while integrated through-spindle coolant guarantees optimal cutting performance.

  • Extreme Capacity: Drills massive holes up to 80mm diameter x 75mm depth
  • Powerful 1700W Motor: Delivers exceptional torque for heavy-duty drilling
  • Advanced 4-Speed Gearbox: Electronic speed control for optimal performance
  • Versatile MT3 Spindle: Accepts large twist drills, taps, and reamers
  • Smart Magnet Technology: Ensures superior holding force for safe operation
  • Integrated Through-Spindle Coolant: Maximises cutter life and drilling speed
Technical Details
Capacity (Depth)110.00mm
Capacity (Diameter)80.00mm
Height476mm min/666mm max
Input Power1600 Watt
Magnetic Dead Lift11,000 N on 25mm steel plate
Motor Power1500 Watt 240V motor
Speed2 speed heavy-duty gearbox 160/390rpm
Stroke190mm
Through CoolantYes
Weight18.00kg
Product Data Sheets
hmpro80 u
Safety Data Sheets
hmpro80 b

We don't have any media for this product.

This product is handy for all trades.
