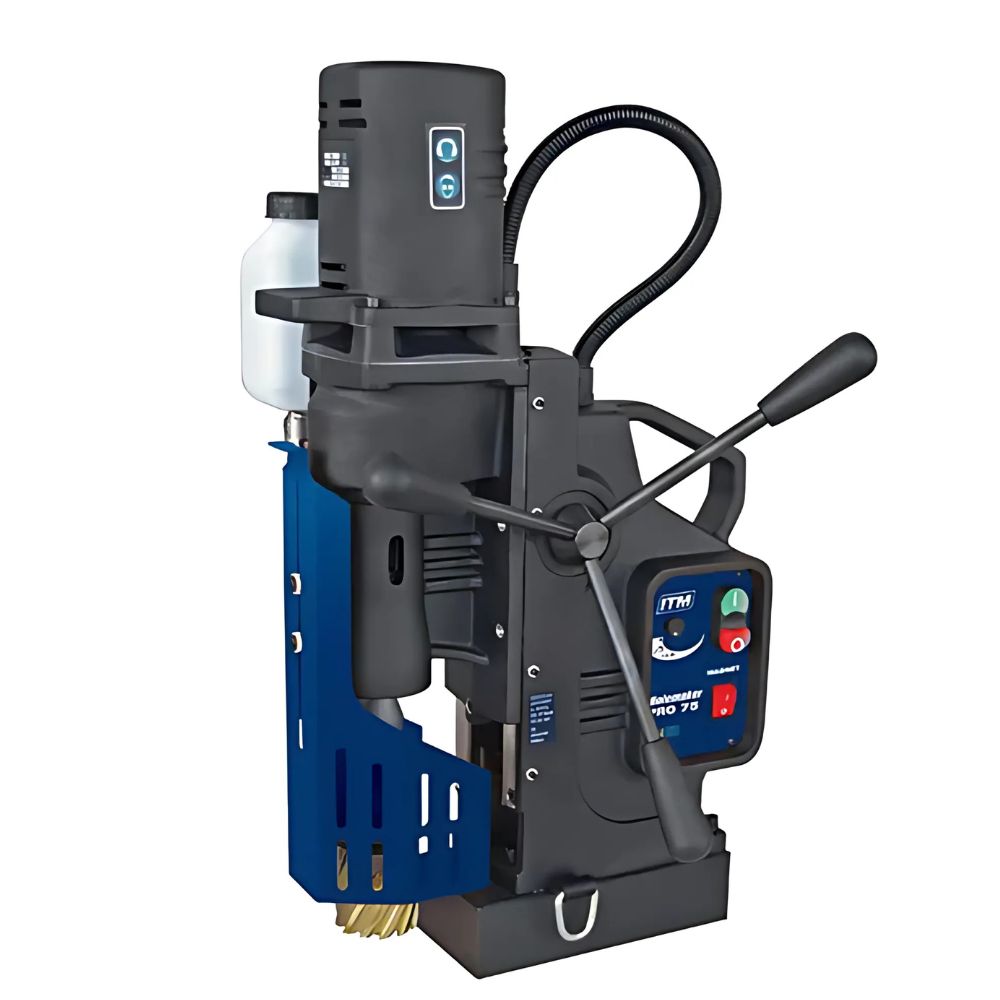

Holemaker Pro75 Magnetic Base Drill, 240v, 3mt, Cap: 75mm Dia X 75mm

SKU: HMPRO75S/C: HMPRO75Barcode: 9328042011343
Usually ships in 2 daysExcluding weekends / Subject to availability

$5,255.80inc
GST

When your project demands maximum drilling power and capacity, look no further than the Holemaker PRO 75. This heavy-duty, European-engineered magnetic base drill is built to tackle the toughest jobs in structural steel fabrication, construction, and industrial maintenance. With an impressive capacity to drill holes up to 75mm in diameter and 75mm deep using annular cutters, the PRO 75 is the powerhouse needed for large-scale drilling tasks.

The heart of this machine is its robust 1800W motor, coupled with a versatile 2-speed gearbox, allowing you to select the optimal speed for different cutter sizes and materials, maximizing efficiency and tool life. The MT3 morse taper spindle adds significant versatility, enabling the use of large twist drills, taps, and reamers for a wider range of applications. Featuring advanced safety mechanisms like overload protection and smart magnet technology (including Magnetic Field Shape Control – MFSC) for exceptional holding force, the PRO 75 ensures both high performance and operator safety. Integrated through-spindle coolant keeps your cutters running efficiently, making this the ultimate choice for heavy-duty, high-precision drilling.

  • Massive Capacity: Drills large holes up to 75mm diameter x 75mm depth
  • Powerful 1800W Motor: High-torque performance for the toughest materials
  • Versatile 2-Speed Gearbox: Optimises speed for cutter size and material type
  • MT3 Morse Taper Spindle: Accepts large twist drills, taps, and reamers
  • Magnetic Field Shape Control (MFSC): Superior magnetic grip, even on imperfect surfaces
  • Integrated Through-Spindle Coolant: Ensures efficient cutting and long tool life
Technical Details
Capacity (Depth)110.00mm
Capacity (Diameter)75.00mm
Height525mm min/739mm max
Input Power1800 watt Single Phase 240V
Magnetic Dead Lift19500Nm On 25mm Steel Plate
Motor Power1650 watt
Speed2 Speed Gearbox With Electronic Variable Speed And Motor Soft Start Feature 80-160; 210-420rpm
Stroke214mm
Through CoolantYes
Weight27.00kg
Product Data Sheets
hmpro75 u
Safety Data Sheets
hmpro75 b
