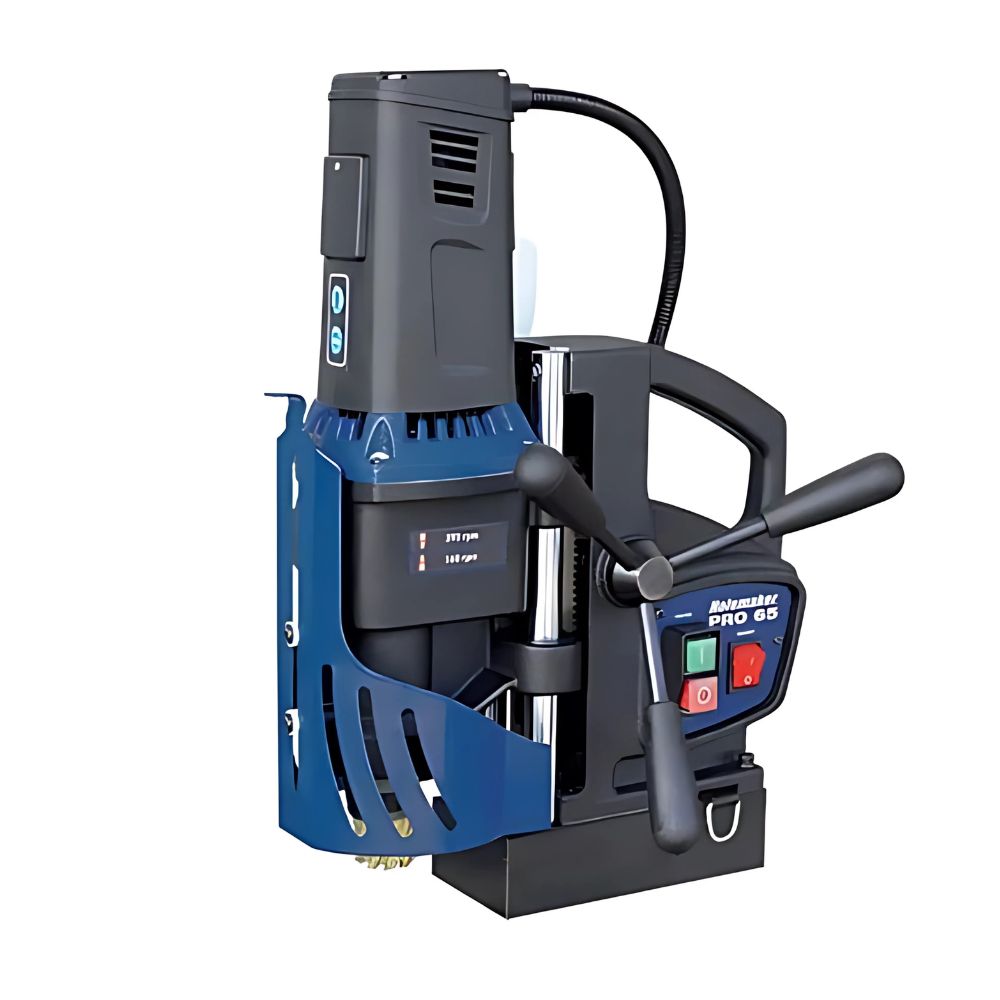

Holemaker Pro65 Magnetic Base Drill, 240v, Cap: 65mm Dia X 75mm

SKU: HOLHMPRO65S/C: HMPRO65Barcode: 9328042030771
Usually ships in 2 daysExcluding weekends / Subject to availability

$3,536.50inc
GST

Unleash heavy-duty drilling power with the Holemaker PRO 65, engineered for the most demanding applications in fabrication, construction, and industrial maintenance. This premium, European-made magnetic base drill delivers exceptional capacity, drilling holes up to 65mm in diameter and an impressive 75mm deep using annular cutters. It’s the go-to machine when you need reliable performance for large-diameter drilling in thick structural steel.

The PRO 65 features a robust 2-speed gearbox coupled with a powerful 1600W motor, providing optimal speed selection for different cutter sizes and materials, ensuring efficient drilling and extended tool life. The versatile MT3 morse taper spindle allows the use of large twist drills, taps, and reamers, expanding its capabilities beyond just annular cutters. Smart magnet technology, including Magnetic Field Shape Control (MFSC), guarantees maximum holding force even on imperfect surfaces. With integrated through-spindle coolant and safety features like overload protection, the PRO 65 is built for power, precision, and operator safety in tough Australian conditions.

  • Heavy-Duty Capacity: Drills large holes up to 65mm diameter x 75mm depth
  • Powerful 1600W Motor: Delivers high torque for tough drilling applications
  • 2-Speed Gearbox: Optimises drilling speed for various cutter sizes and materials
  • MT3 Morse Taper Spindle: Offers versatility with twist drills, taps, and reamers
  • Magnetic Field Shape Control (MFSC): Ensures maximum magnetic grip on steel
  • Through-Spindle Coolant System: Improves cutter performance and lifespan
Technical Details
Capacity (Depth)75.00mm
Capacity (Diameter)65.00mm
Height418mm min/513mm max
Magnetic Dead Lift11000Nm Magnetic dead lift on 25mm steel plate
Motor Power1600 Watt 240V Motor
Speed2 Speed gearbox (160 / 390rpm)
Stroke95mm Stroke
Through CoolantYes
Weight17.00kg
Product Data Sheets
hmpro65 u
Safety Data Sheets
hmpro65 b

This product is handy for all trades.
