| Technical Details | |
|---|---|
| Capacity (Depth) | 35.00mm |
| Capacity (Diameter) | 35.00mm |
| Height | 327mm min/397mm max |
| Input Power | 950 Watt Single Phase 240V |
| Magnetic Dead Lift | 6000Nm On 25mm Steel Plate |
| Motor Power | 920 Watt |
| Speed | 350rpm |
| Stroke | 70mm |
| Through Coolant | Yes |
| Weight | 14.00kg |

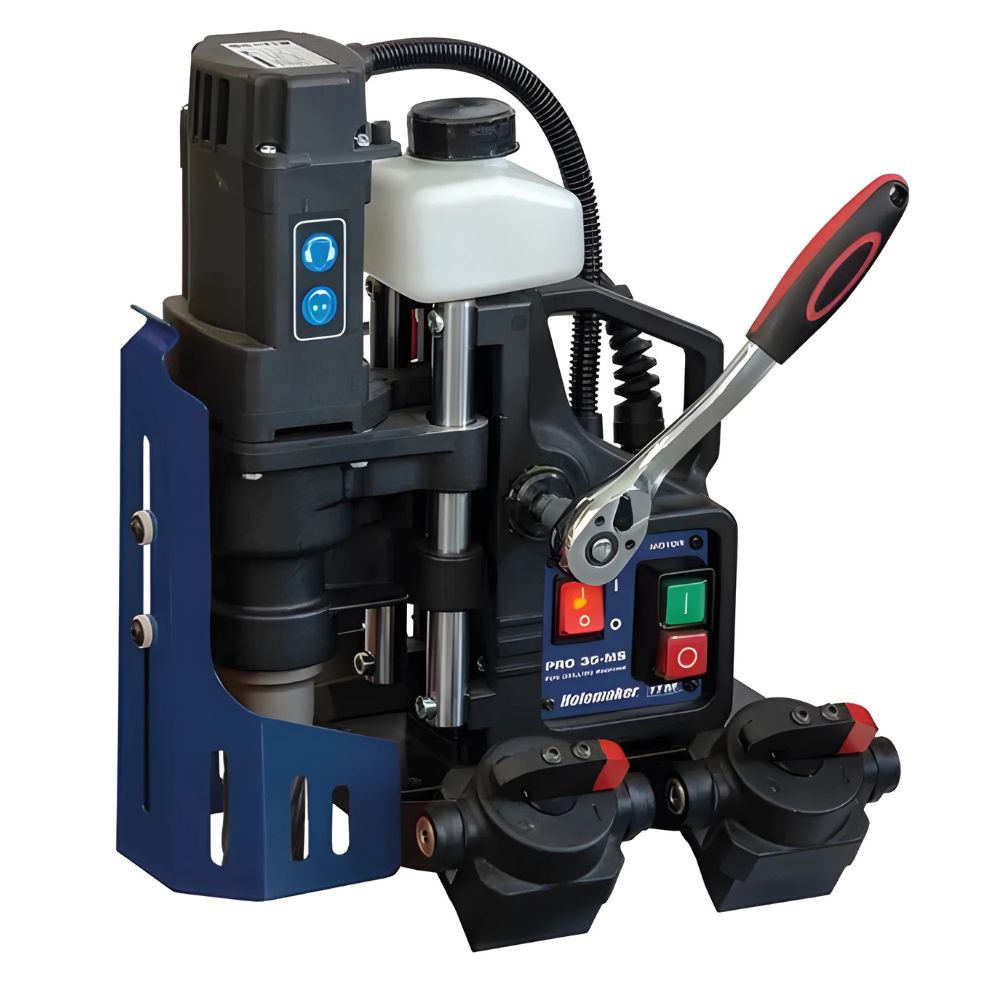

Holemaker Pro35 Magnetic Base Drill, With Swivel Magnetic Base For Pip
$3,637.92inc
GST
Take your magnetic drilling capabilities onto curved surfaces with the specialised Holemaker PRO 35-MS. This innovative machine combines the proven performance of the popular PRO 35 drill with a unique swivel magnetic base, specifically designed for securely clamping onto pipes and tubes. Ideal for pipeline work, tank fabrication, and structural steel applications involving round sections, the PRO 35-MS eliminates the need for cumbersome clamping jigs or makeshift setups.
The specially designed swivel base conforms perfectly to convex surfaces, providing exceptional magnetic adhesion and stability where standard flat magnets would fail. Despite its specialised base, it retains all the power and features of the standard PRO 35, including a 35mm diameter drilling capacity, a powerful 1020W European motor, through-spindle coolant for optimal cutter life, and ambidextrous feed handles. Lightweight and reliable, this drill provides a safe, accurate, and efficient solution for drilling holes on pipes and curved steel surfaces, saving you time and improving job quality in challenging situations.
- Swivel Magnetic Base: Specifically designed for secure clamping on pipes and curved surfaces
- 35mm Annular Cutter Capacity: Drills holes up to 35mm diameter x 52mm depth
- Powerful 1020W Motor: Reliable European-made motor for efficient drilling
- Enhanced Stability: Provides superior grip and stability on non-flat surfaces
- Lightweight Design: Easy to handle and position on various workpieces
- Through-Spindle Coolant: Optimises cutting performance and extends cutter life
| Product Data Sheets |
|---|
| hmpro35 ms u |
| Safety Data Sheets |
|---|
| hmpro35 ms b |
