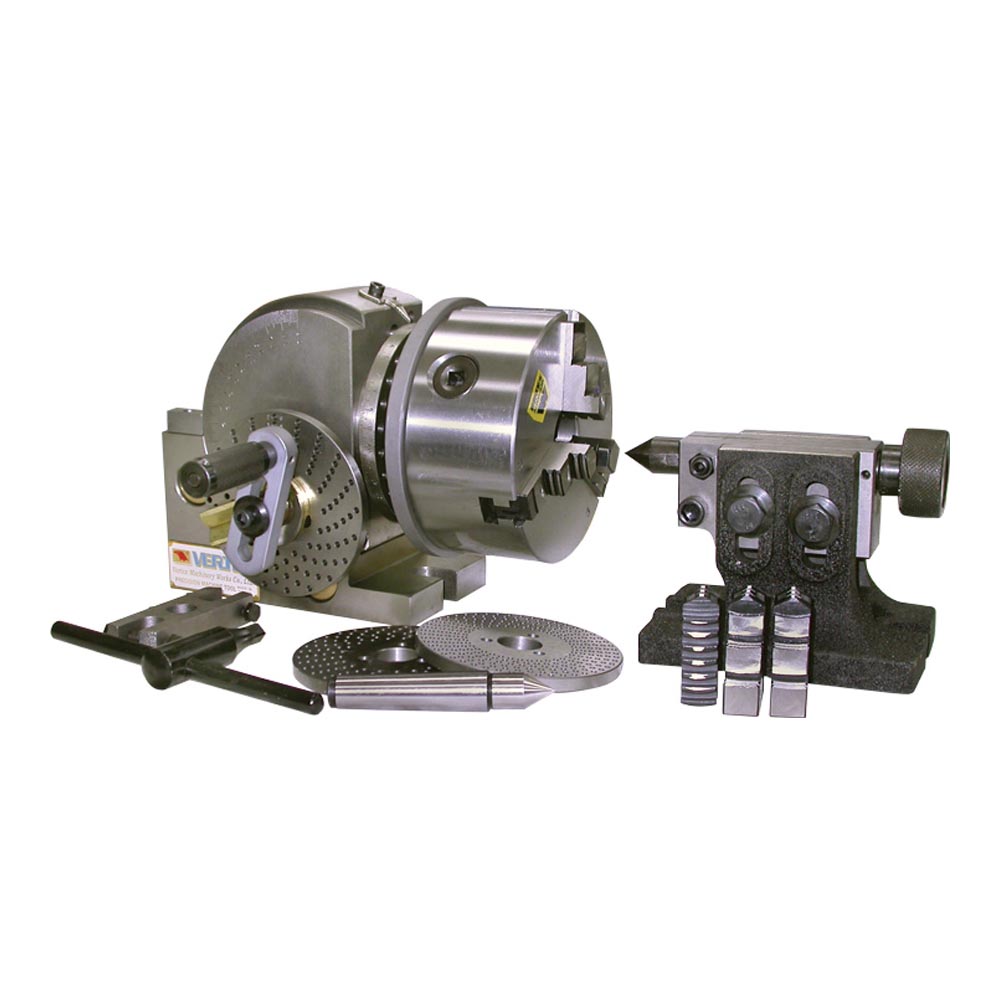

Vertex Dividing Head – includes 6″ 3 Jaw Chuck, plates and tailstock

SKU: BS1VSC6S/C: BS1VSC6Barcode: 9346967005643
Usually ships in 1 daySubject to availability

$2,265.00inc
GST

Made in Taiwan and manufactured to high precision standards using quality materials. Vertex tools and work holding systems keep the wheels of the industry turning. Vertex is an ISO9001 certified company.

  • Features: Dividing Head and Indexing
  • Dividing head can divide in any angle by the direct, indirect or difference methods. The ratio between the worm and worm gear is 40:1.
  • Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also.
  • The swivel head can be locked in any angle from 10° below horizontal to 90° vertical. Precision fitting to base assures smooth rotation.
  • All models have a threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2,3,4,6,8,12 and 24.
  • Easy indexing of all numbers from 2 to 50 and many numbers from 52 to 380.
View all:
Technical Details
Body Width14mm
Dividing Plates A15,16,17,18,19,20
Dividing Plates B21,23,27,29,31,33
Dividing Plates C37,39,41,43,47,49
Height220mm
Spindle Through Hole20mm
TaperMT3

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
