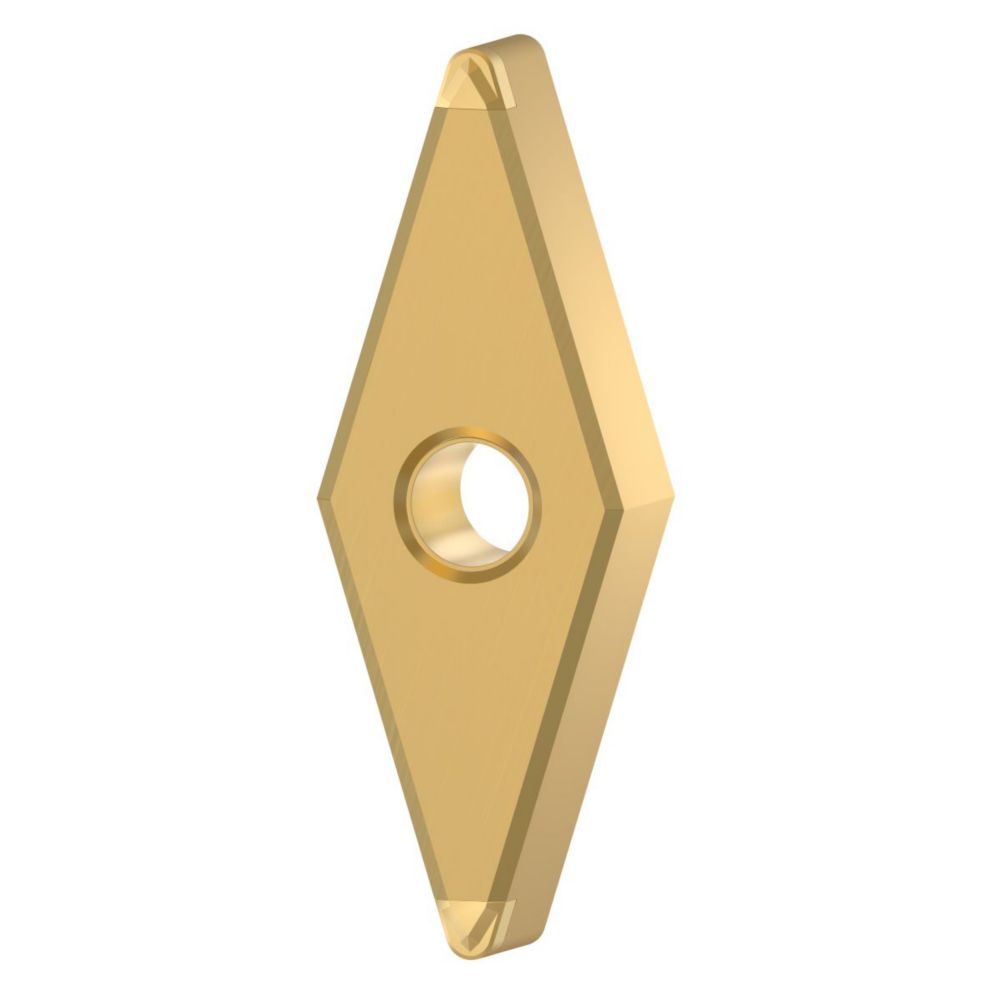

Kennametal • Kenloc™ • Negative Inserts • VNGM • Chipbreaker • Single-Sided Mini Tip • VNGM160408S01225CB1MMT KBH20B

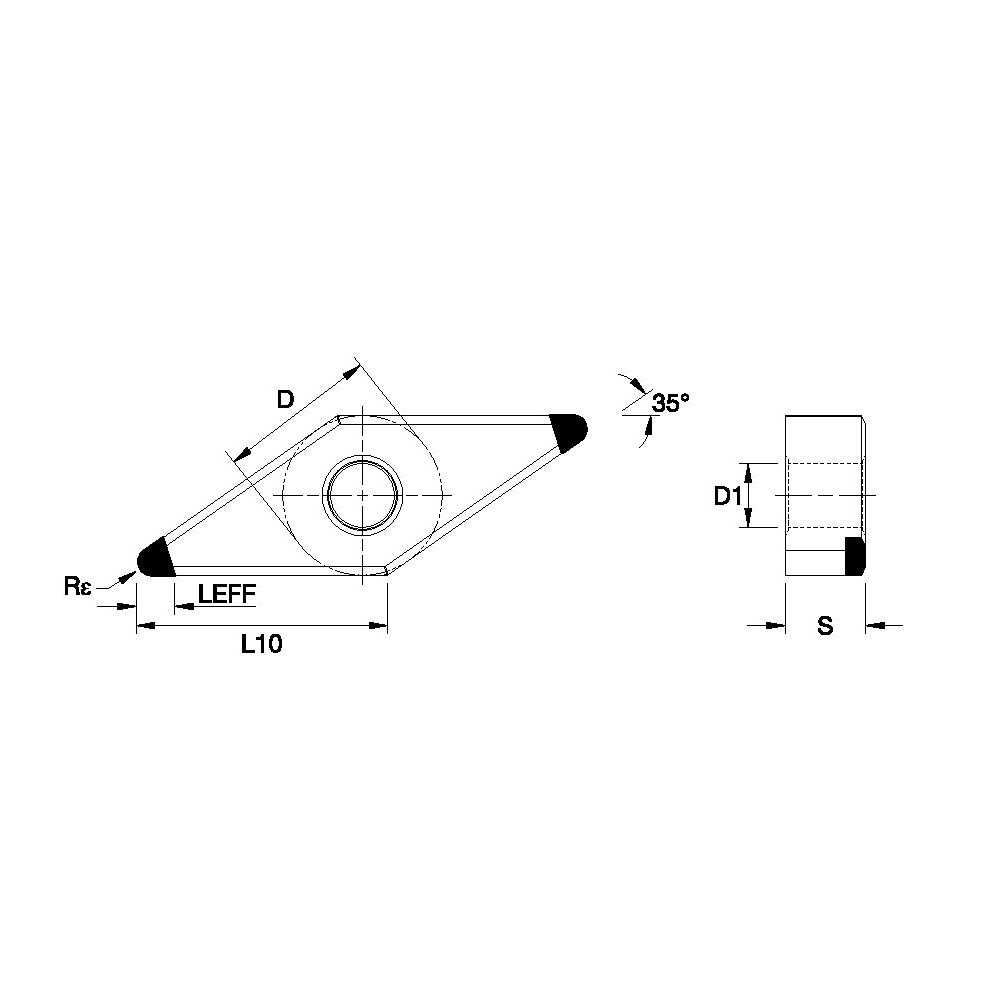

Kennametal • Kenloc™ • Negative Inserts • VNGM • Chipbreaker • Single-Sided Mini Tip • VNGM160408S01225CB1MMT KBH20B - Image 2

Kennametal • Kenloc™ • Negative Inserts • VNGM • Chipbreaker • Single-Sided Mini Tip • VNGM160408S01225CB1MMT KBH20B

SKU: KEN7316800S/C: 7316800
Usually ships in 5 daysExcluding weekends / Subject to availability

$108.90inc
GST

Price Match

ISO Turning Insert • Negative V-PcBN Mini Tip Inserts for Hard Turning • VNGM-CB1MMT

  • Improved edge design reduces overall cost without compromising performance
  • PVD multilayer coating provides a thermal barrier to reduce crater wear
  • Gold top layer coating for easy identification of flank wear
  • KBH10B for precision machining of hardened steels >48 HRC
More Info
View all:
Technical Details
B Gamma Inch [BGAMMA]0.0200
B Gamma Metric [BGAMMA]0.5090
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationCB1
Clearance Angle Major [ALPHAN]0.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031500
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialCarbide
Engineering Insert GeometryNGM_S01225_MT
Ins Cut Edge Length Inch [L10]0.6538
Ins Cut Edge Length Metric [L10]16.6060
Ins Effect Cut Length Inch [Leff]0.0834
Ins Effect Cut Length Metric [Leff]2.1190
Insert Gage Dimension Inch [M]0.3628
Insert Gage Dimension Metric [M]9.2150
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1500
Insert Hole Size Metric [D1]3.8100
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting2-Cylindrical Fixing Hole
Insert Num of Cutting Edges2
Insert Num of Indexes2
Insert Rake Angle [GAMMA]25.000
Insert ShapeV-Diamond/Rhombic 35
Insert Thickness Fraction [S]3/16
Insert Thickness Inch [S]0.1883
Insert Thickness Metric [S]4.7820

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
