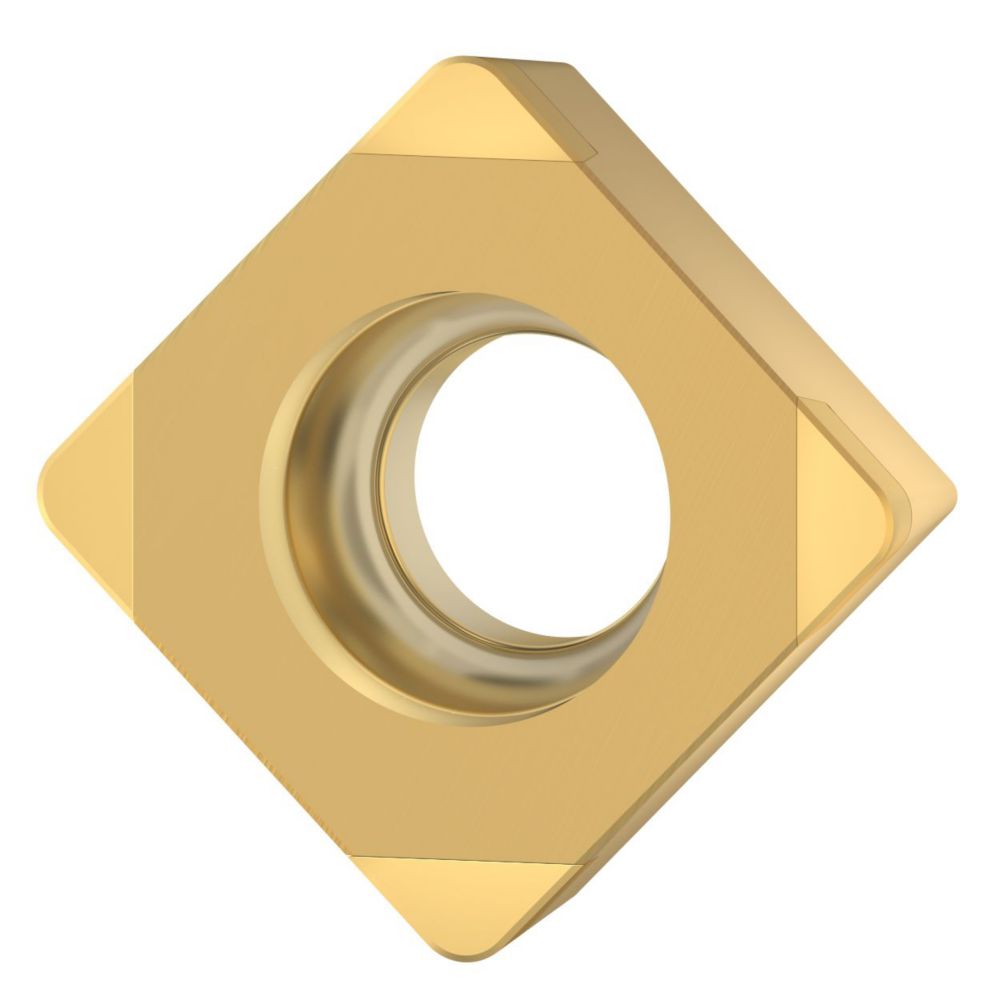

Kennametal • Screw-On • Positive Inserts • SCGW • Single-Sided Mini Tip • SCGW09T308S01015MMT KBH20B
Kennametal • Screw-On • Positive Inserts • SCGW • Single-Sided Mini Tip • SCGW09T308S01015MMT KBH20B - Image 2

Kennametal • Screw-On • Positive Inserts • SCGW • Single-Sided Mini Tip • SCGW09T308S01015MMT KBH20B

SKU: KEN7316769S/C: 7316769
Usually ships in 5 daysExcluding weekends / Subject to availability

$216.59inc
GST

Price Match

ISO Turning Insert • Positive Screw-On S-PcBN Mini Tip Inserts for Hard Turning • SCGW-MMT

  • Improved edge design reduces overall cost without compromising performance
  • PVD multilayer coating provides a thermal barrier to reduce crater wear
  • Gold top layer coating for easy identification of flank wear
  • KBH10B for precision machining of hardened steels >48 HRC
More Info
View all:

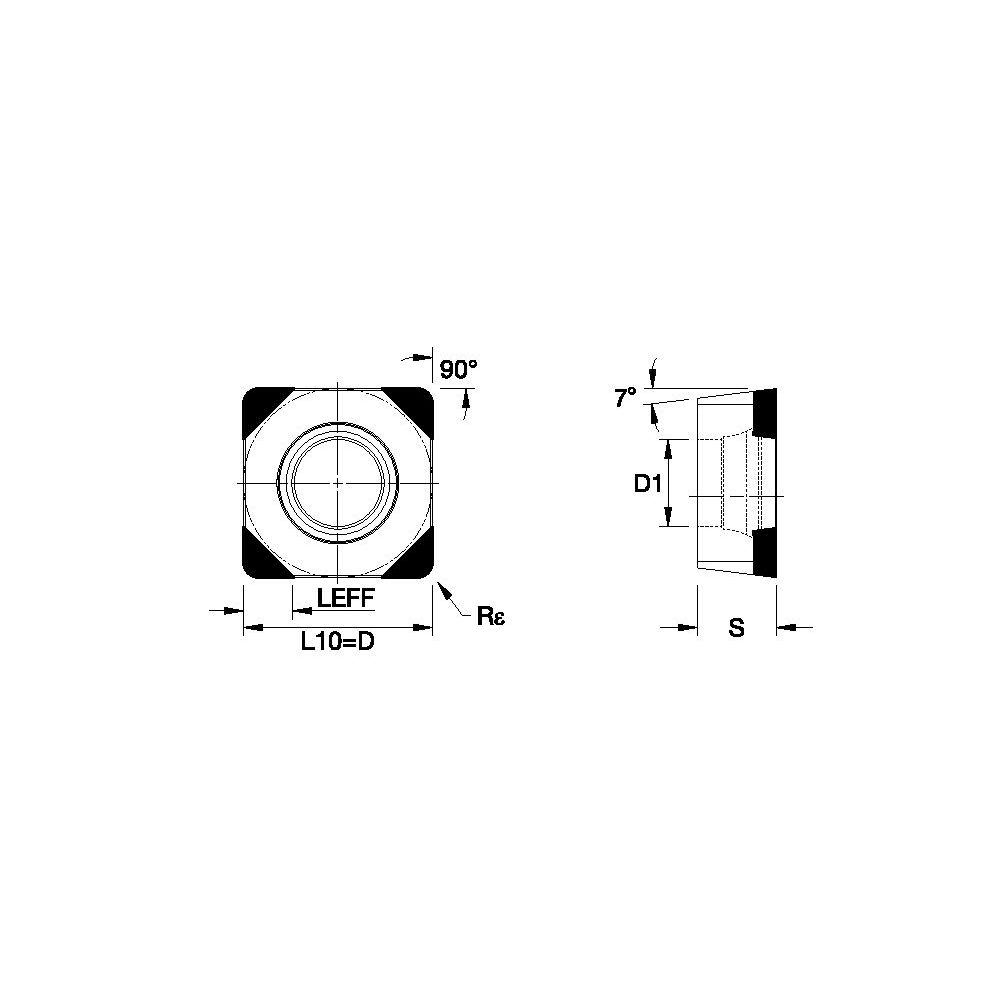

Technical Details
B Gamma Inch [BGAMMA]0.0039
B Gamma Metric [BGAMMA]0.1000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]7.000
Clearance Angle Minor [ALPHANM]7.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialCarbide
Engineering Insert GeometryCGW_S01015_MT
Ins Cut Edge Length Inch [L10]0.3750
Ins Cut Edge Length Metric [L10]9.5250
Ins Effect Cut Length Inch [Leff]0.0981
Ins Effect Cut Length Metric [Leff]2.4930
Insert Gage Dimension Inch [M]0.0646
Insert Gage Dimension Metric [M]1.6410
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1732
Insert Hole Size Metric [D1]4.4000
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges1
Insert Num of Indexes4
Insert ShapeS-Square 90
Insert Thickness Fraction [S]5/32
Insert Thickness Inch [S]0.1570
Insert Thickness Metric [S]3.9890
