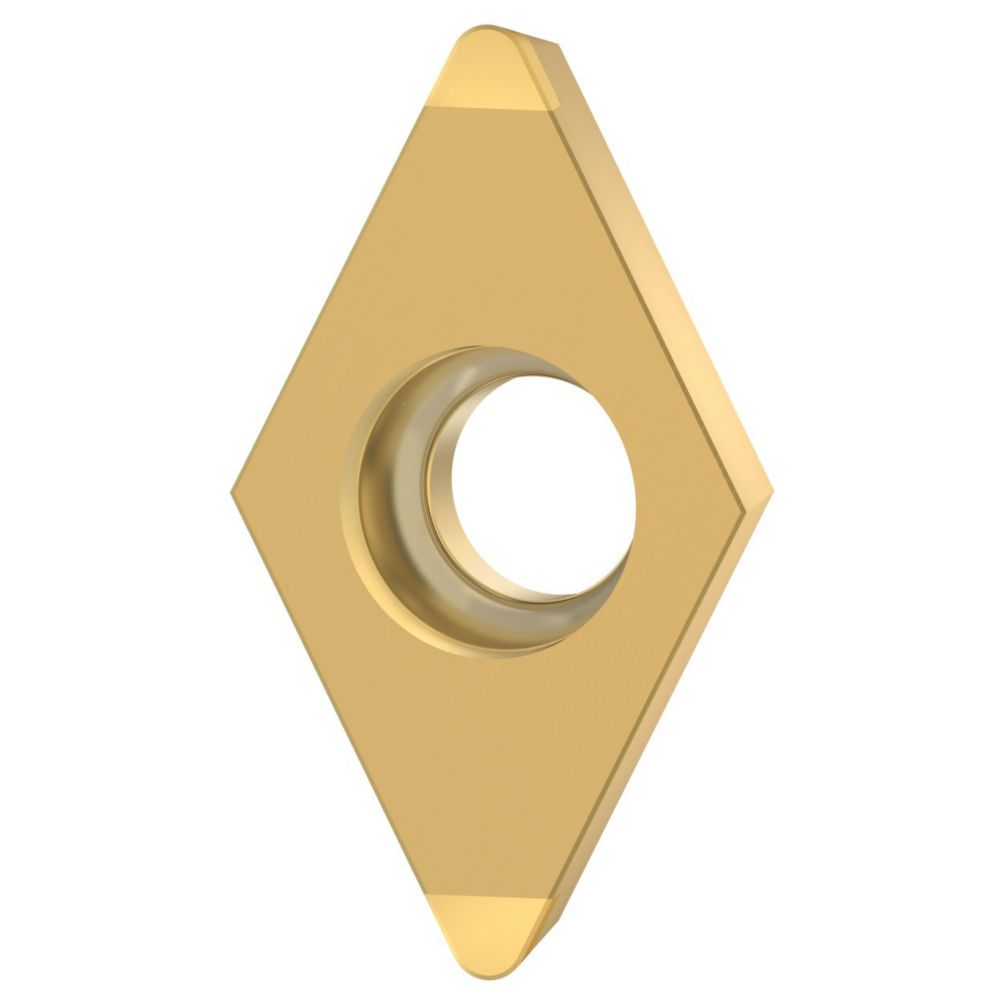

Kennametal • Screw-On • Positive Inserts • DPGW • Single-Sided Mini Tip • DPGW070204S01015MMT KBH20B
Kennametal • Screw-On • Positive Inserts • DPGW • Single-Sided Mini Tip • DPGW070204S01015MMT KBH20B - Image 2

Kennametal • Screw-On • Positive Inserts • DPGW • Single-Sided Mini Tip • DPGW070204S01015MMT KBH20B

SKU: KEN7316751S/C: 7316751
Usually ships in 5 daysExcluding weekends / Subject to availability

$108.90inc
GST

Price Match

ISO Turning Insert • Positive Screw-On D-PcBN Mini Tip Inserts for Hard Turning • DPGW-MMT

  • Improved edge design reduces overall cost without compromising performance
  • PVD multilayer coating provides a thermal barrier to reduce crater wear
  • Gold top layer coating for easy identification of flank wear
  • KBH10B for precision machining of hardened steels >48 HRC
More Info
View all:

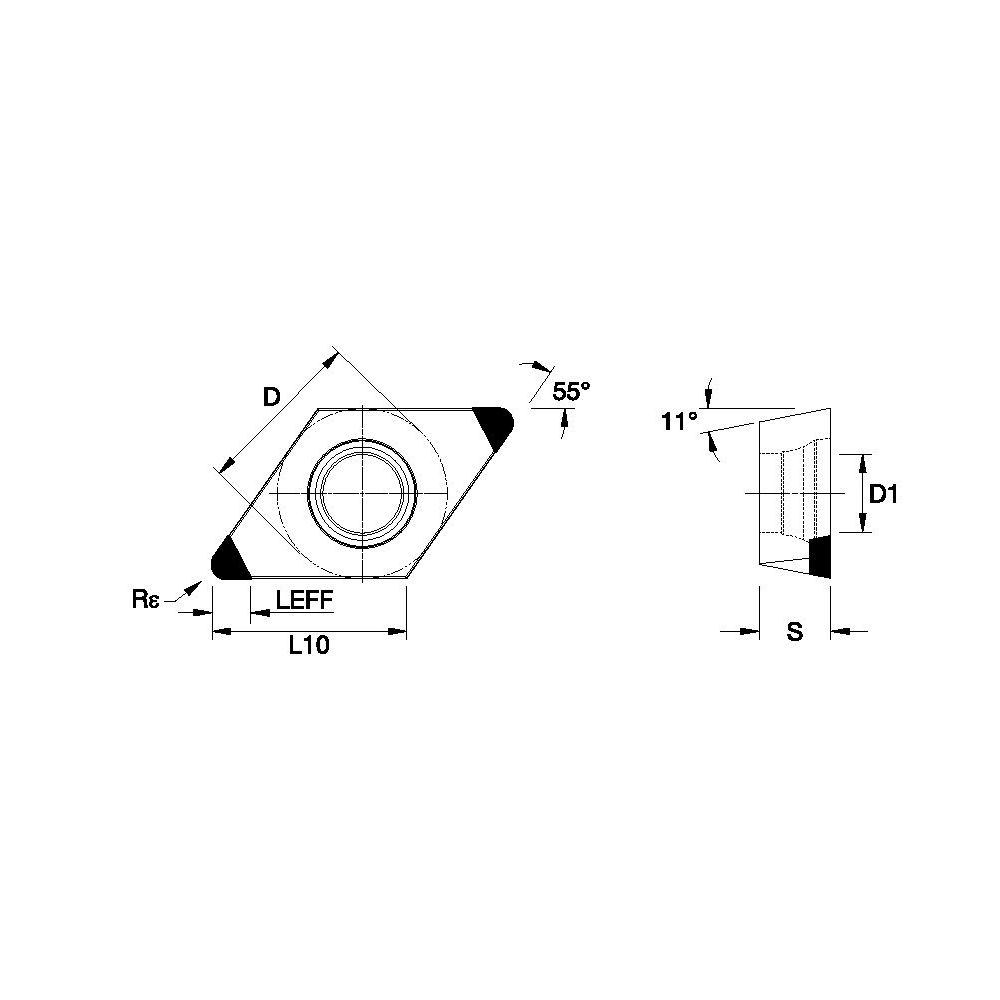

Technical Details
B Gamma Inch [BGAMMA]0.0040
B Gamma Metric [BGAMMA]0.1000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]11.000
Clearance Angle Minor [ALPHANM]11.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015625
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialCarbide
Engineering Insert GeometryPGW_S01015_MT
Ins Cut Edge Length Inch [L10]0.3052
Ins Cut Edge Length Metric [L10]7.7520
Ins Effect Cut Length Inch [Leff]0.1044
Ins Effect Cut Length Metric [Leff]2.6520
Insert Gage Dimension Inch [M]0.1274
Insert Gage Dimension Metric [M]3.2350
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1102
Insert Hole Size Metric [D1]2.8000
Insert IC Size Fraction [D]1/4
Insert IC Size Inch [D]0.2500
Insert IC Size Metric [D]6.3500
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges1
Insert Num of Indexes2
Insert ShapeD-Diamond/Rhombic 55
Insert Thickness Fraction [S].0945
Insert Thickness Inch [S]0.0945
Insert Thickness Metric [S]2.4010

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
