Kennametal • Screw-On • Positive Inserts • CCGT • Chipbreaker • Single-Sided Mini Tip • CCGT09T304S01225CB1MMT KBH20B

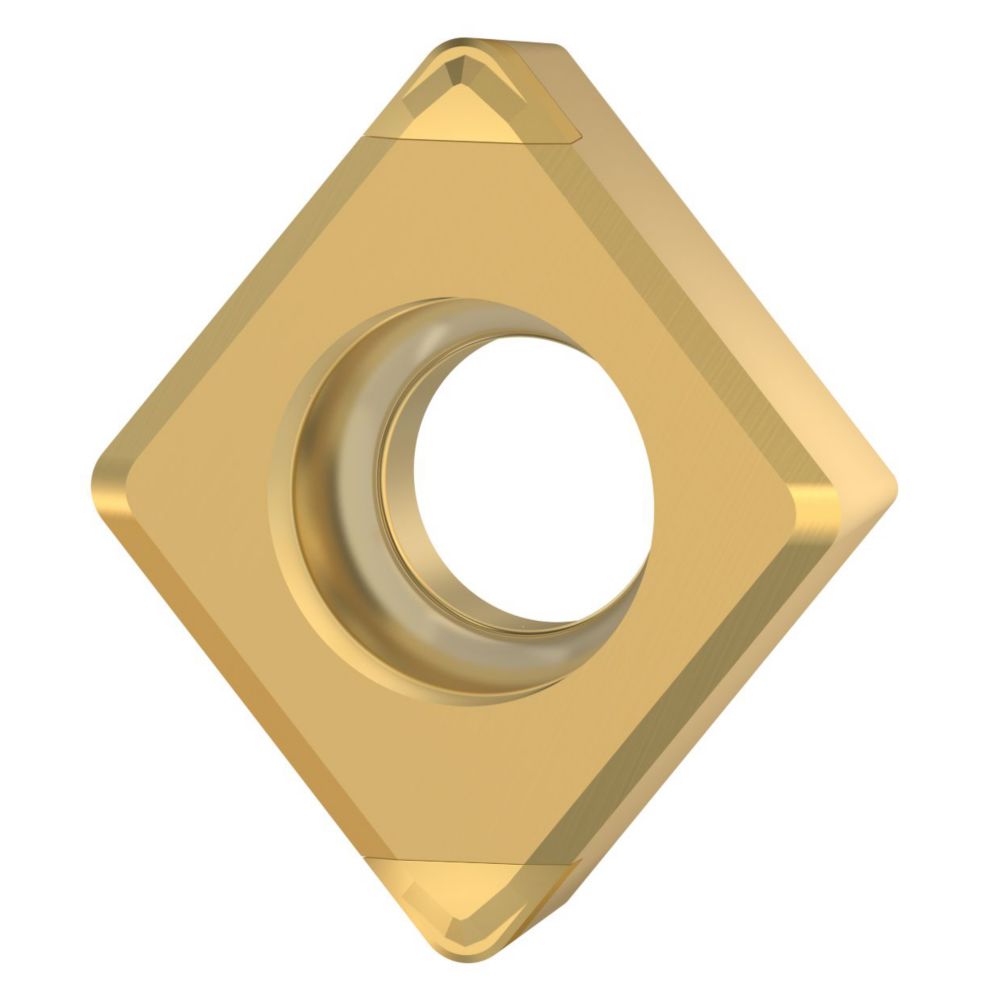

Kennametal • Screw-On • Positive Inserts • CCGT • Chipbreaker • Single-Sided Mini Tip • CCGT09T304S01225CB1MMT KBH20B - Image 2

Kennametal • Screw-On • Positive Inserts • CCGT • Chipbreaker • Single-Sided Mini Tip • CCGT09T304S01225CB1MMT KBH20B

SKU: KEN7316275S/C: 7316275
Usually ships in 5 daysExcluding weekends / Subject to availability

$108.90inc
GST

Price Match

ISO Turning Insert • Positive Screw-On C-PcBN Mini Tip Inserts for Hard Turning • CCGT-CB1MMT

  • Improved edge design reduces overall cost without compromising performance
  • PVD multilayer coating provides a thermal barrier to reduce crater wear
  • Gold top layer coating for easy identification of flank wear
  • KBH10B for precision machining of hardened steels >48 HRC
More Info
View all:

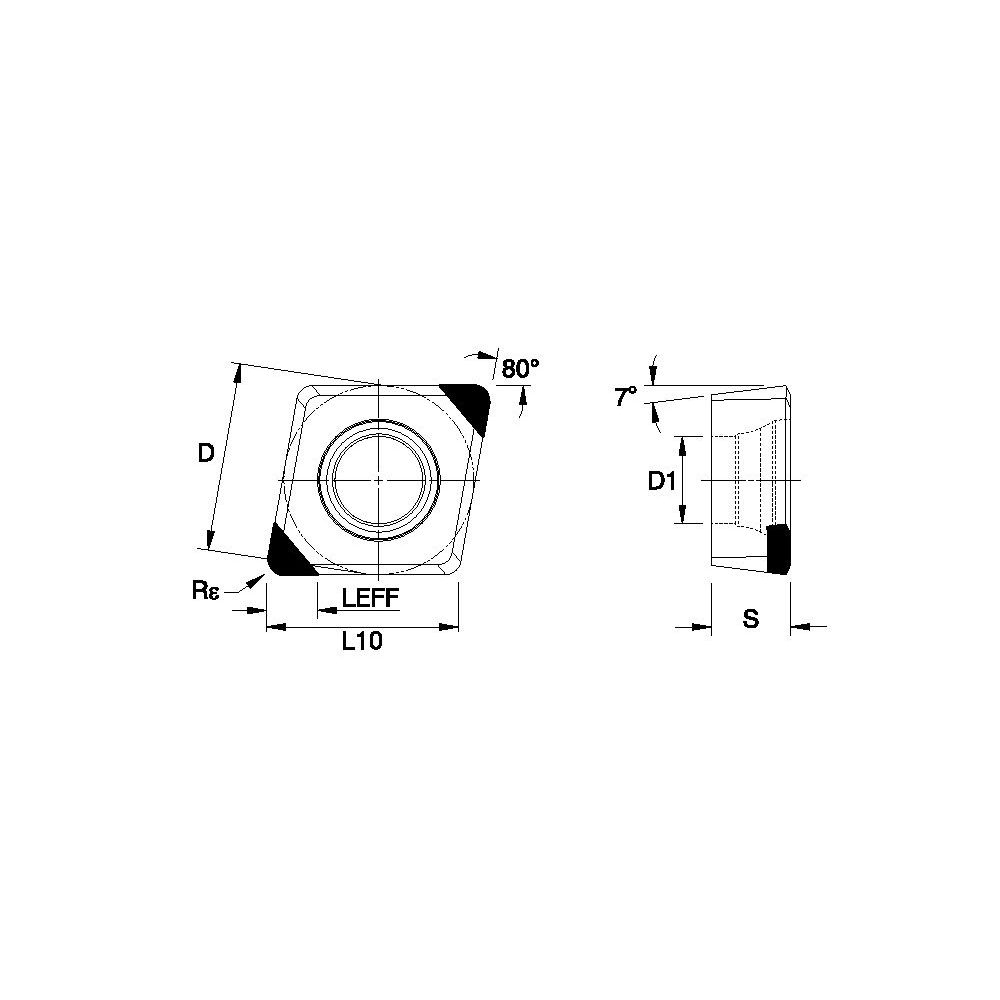

Technical Details
B Gamma Inch [BGAMMA]0.0200
B Gamma Metric [BGAMMA]0.5080
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationCB
Clearance Angle Major [ALPHAN]7.000
Clearance Angle Minor [ALPHANM]7.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015700
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialCarbide
Engineering Insert GeometryCGT_S01225_MT
Ins Cut Edge Length Inch [L10]0.3808
Ins Cut Edge Length Metric [L10]9.6720
Ins Effect Cut Length Inch [Leff]0.0986
Ins Effect Cut Length Metric [Leff]2.5030
Insert Gage Dimension Inch [M]0.0954
Insert Gage Dimension Metric [M]2.4240
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1732
Insert Hole Size Metric [D1]4.4000
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert Num of Indexes2
Insert Rake Angle [GAMMA]25.000
Insert ShapeC-Diamond/Rhombic 80
Insert Thickness Fraction [S]5/32
Insert Thickness Inch [S]0.1570
Insert Thickness Metric [S]3.9890
