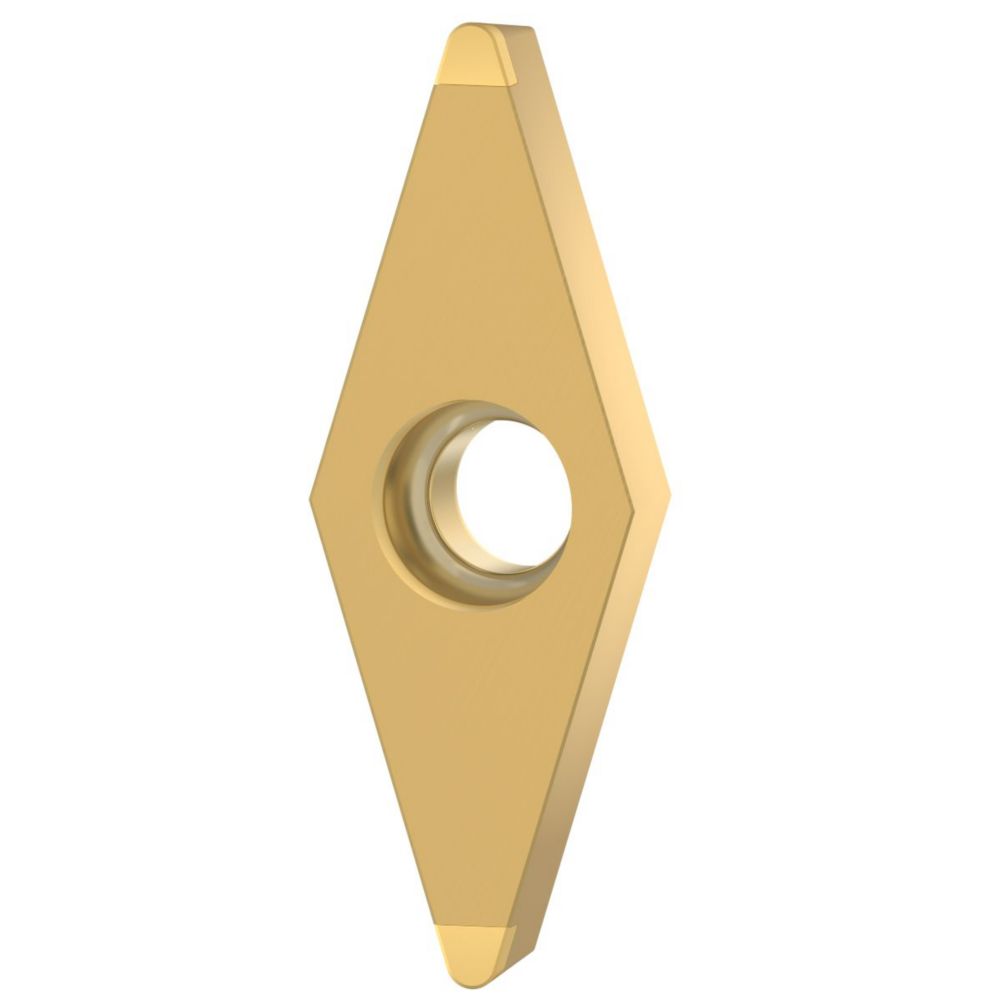

Kennametal • Screw-On • Positive Inserts • VCGW • Single-Sided Mini Tip • VCGW160404S01225MMT KBH20B
Kennametal • Screw-On • Positive Inserts • VCGW • Single-Sided Mini Tip • VCGW160404S01225MMT KBH20B - Image 2

Kennametal • Screw-On • Positive Inserts • VCGW • Single-Sided Mini Tip • VCGW160404S01225MMT KBH20B

SKU: KEN7310660S/C: 7310660
Usually ships in 5 daysExcluding weekends / Subject to availability

$108.90inc
GST

Price Match

ISO Turning Insert • Positive Screw-On V-PcBN Mini Tip Inserts for Hard Turning • VCGW-MMT

  • Improved edge design reduces overall cost without compromising performance
  • PVD multilayer coating provides a thermal barrier to reduce crater wear
  • Gold top layer coating for easy identification of flank wear
  • KBH10B for precision machining of hardened steels >48 HRC
More Info
View all:

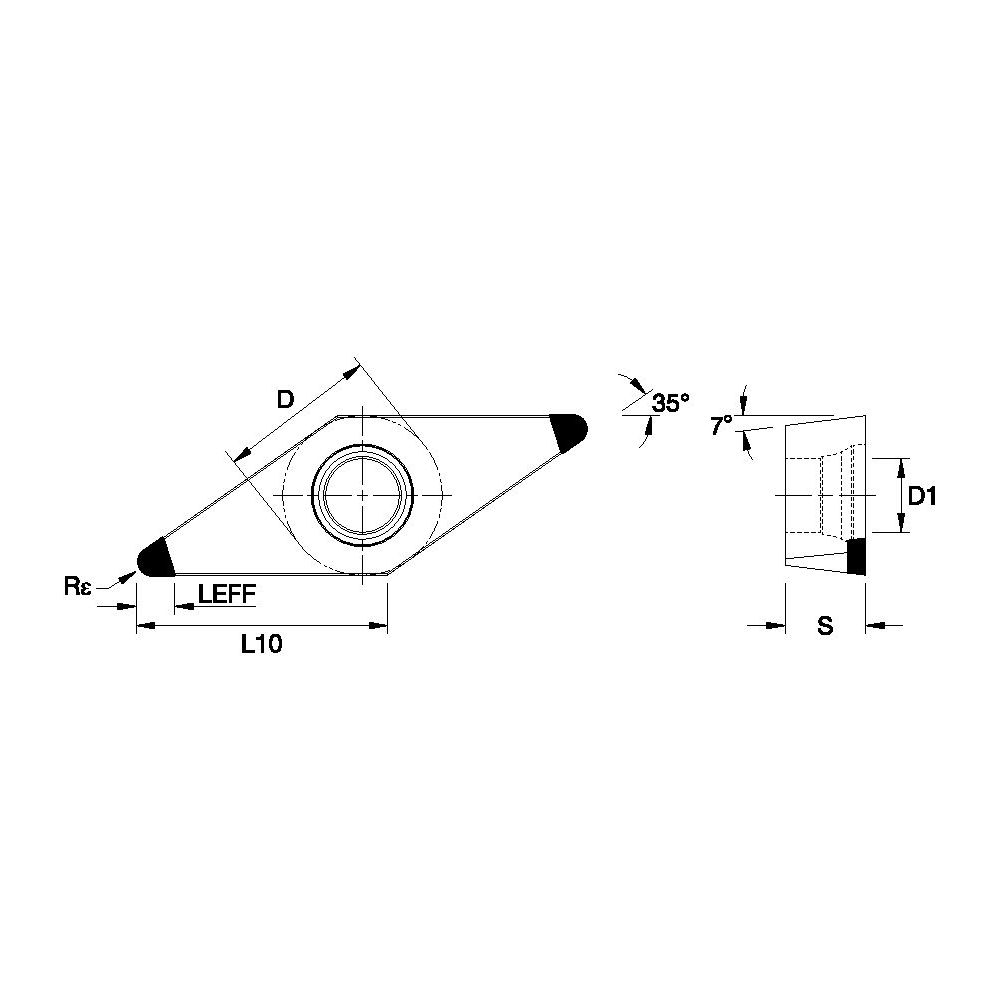

Technical Details
B Gamma Inch [BGAMMA]0.0050
B Gamma Metric [BGAMMA]0.1270
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]7.000
Clearance Angle Minor [ALPHANM]7.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015600
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialBN-Low CBN
Engineering Insert GeometryCGW_S01225_MT
Ins Cut Edge Length Inch [L10]0.6538
Ins Cut Edge Length Metric [L10]16.6060
Ins Effect Cut Length Inch [Leff]0.1175
Ins Effect Cut Length Metric [Leff]2.9850
Insert Gage Dimension Inch [M]0.3994
Insert Gage Dimension Metric [M]10.1450
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1730
Insert Hole Size Metric [D1]4.4000
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert Num of Indexes2
Insert ShapeV-Diamond/Rhombic 35
Insert Thickness Fraction [S]3/16
Insert Thickness Inch [S]0.1883
Insert Thickness Metric [S]4.7820

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
