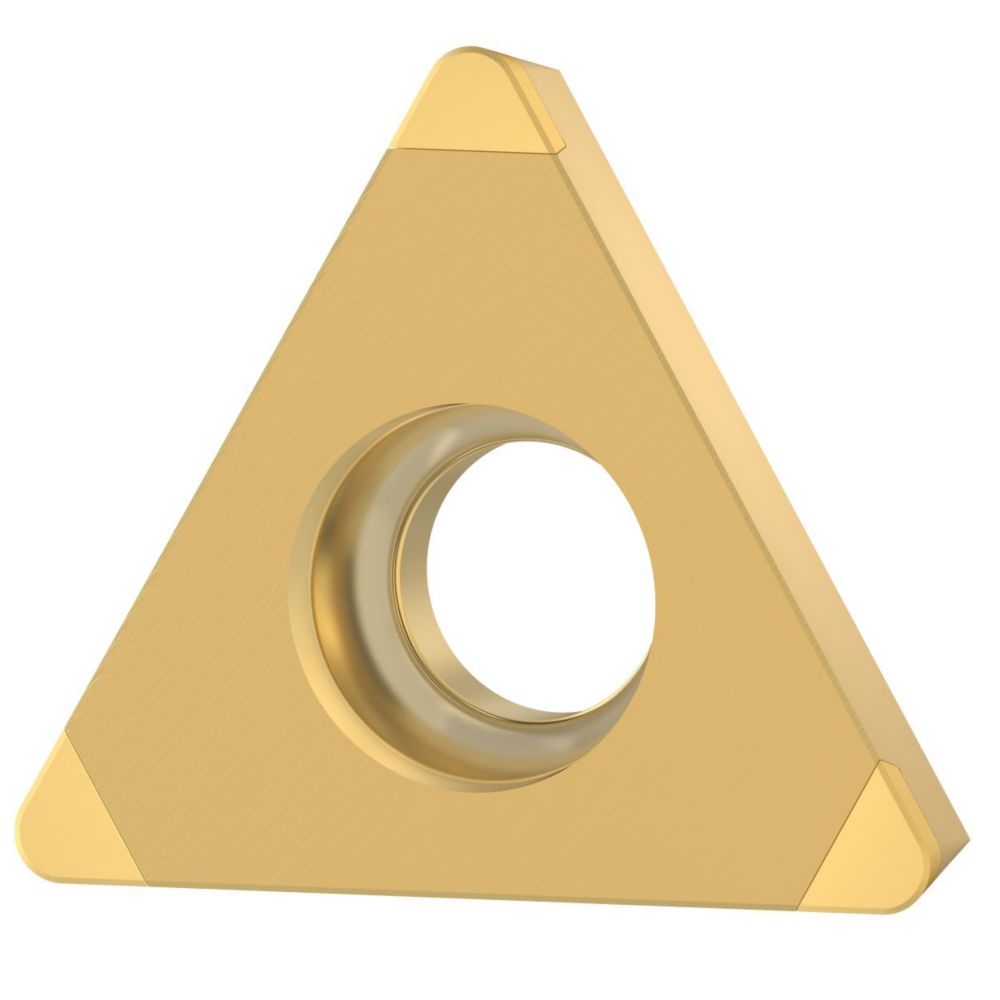

Kennametal • Screw-On • Positive Inserts • TPGW • Single-Sided Mini Tip • TPGW110204S01015MMT KBH20B
Kennametal • Screw-On • Positive Inserts • TPGW • Single-Sided Mini Tip • TPGW110204S01015MMT KBH20B - Image 2

Kennametal • Screw-On • Positive Inserts • TPGW • Single-Sided Mini Tip • TPGW110204S01015MMT KBH20B

SKU: KEN7310653S/C: 7310653
Usually ships in 5 daysExcluding weekends / Subject to availability

$163.35inc
GST

Price Match

ISO Turning Insert • Positive Screw-On T-PcBN Mini Tip Inserts for Hard Turning • TPGW-MMT

  • Improved edge design reduces overall cost without compromising performance
  • PVD multilayer coating provides a thermal barrier to reduce crater wear
  • Gold top layer coating for easy identification of flank wear
  • KBH10B for precision machining of hardened steels >48 HRC
More Info
View all:

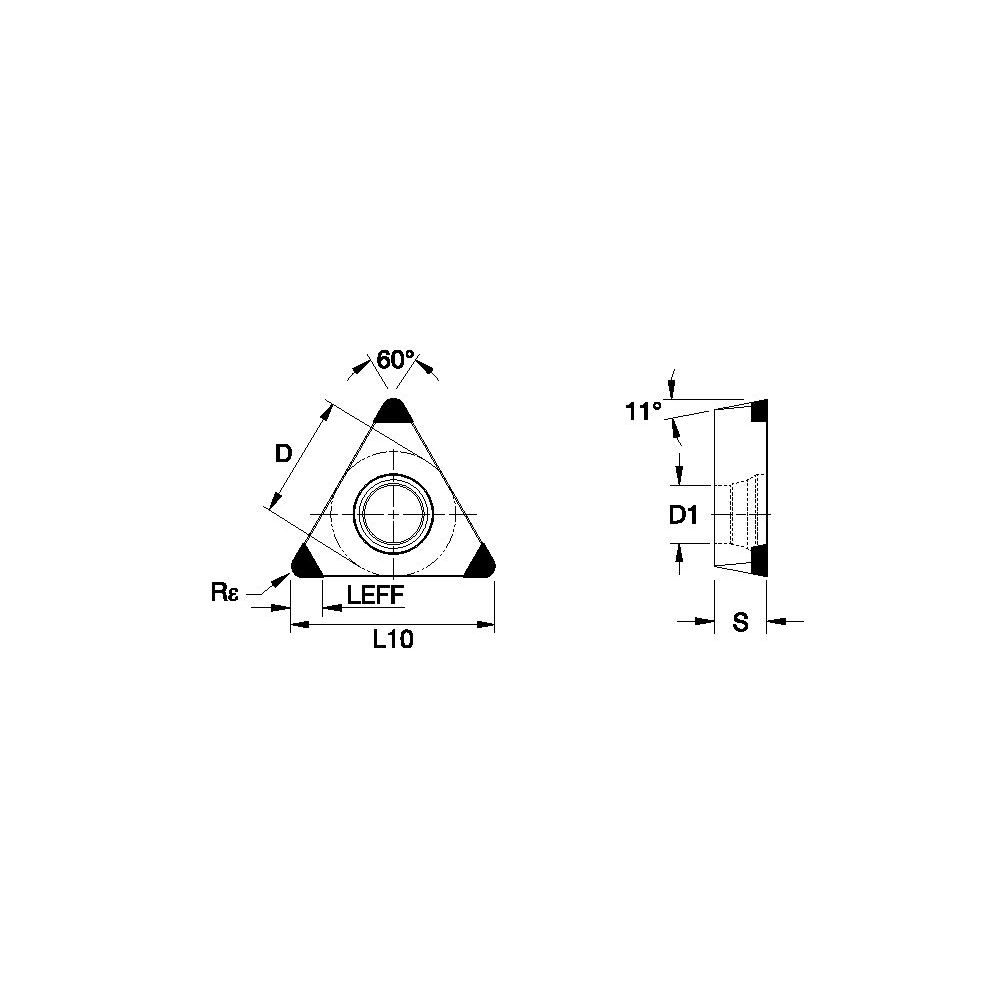

Technical Details
B Gamma Inch [BGAMMA]0.0040
B Gamma Metric [BGAMMA]0.1000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]11.000
Clearance Angle Minor [ALPHANM]11.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015625
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialBN-Low CBN
Engineering Insert GeometryPGW_S01015_MT
Ins Cut Edge Length Inch [L10]0.4330
Ins Cut Edge Length Metric [L10]10.9990
Ins Effect Cut Length Inch [Leff]0.0997
Ins Effect Cut Length Metric [Leff]2.5330
Insert Gage Dimension Inch [M]0.3593
Insert Gage Dimension Metric [M]9.1250
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1100
Insert Hole Size Metric [D1]2.8000
Insert IC Size Fraction [D]1/4
Insert IC Size Inch [D]0.2500
Insert IC Size Metric [D]6.3500
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges3
Insert Num of Indexes2
Insert ShapeT-Triangle 60
Insert Thickness Fraction [S].0945
Insert Thickness Inch [S]0.0945
Insert Thickness Metric [S]2.4010
