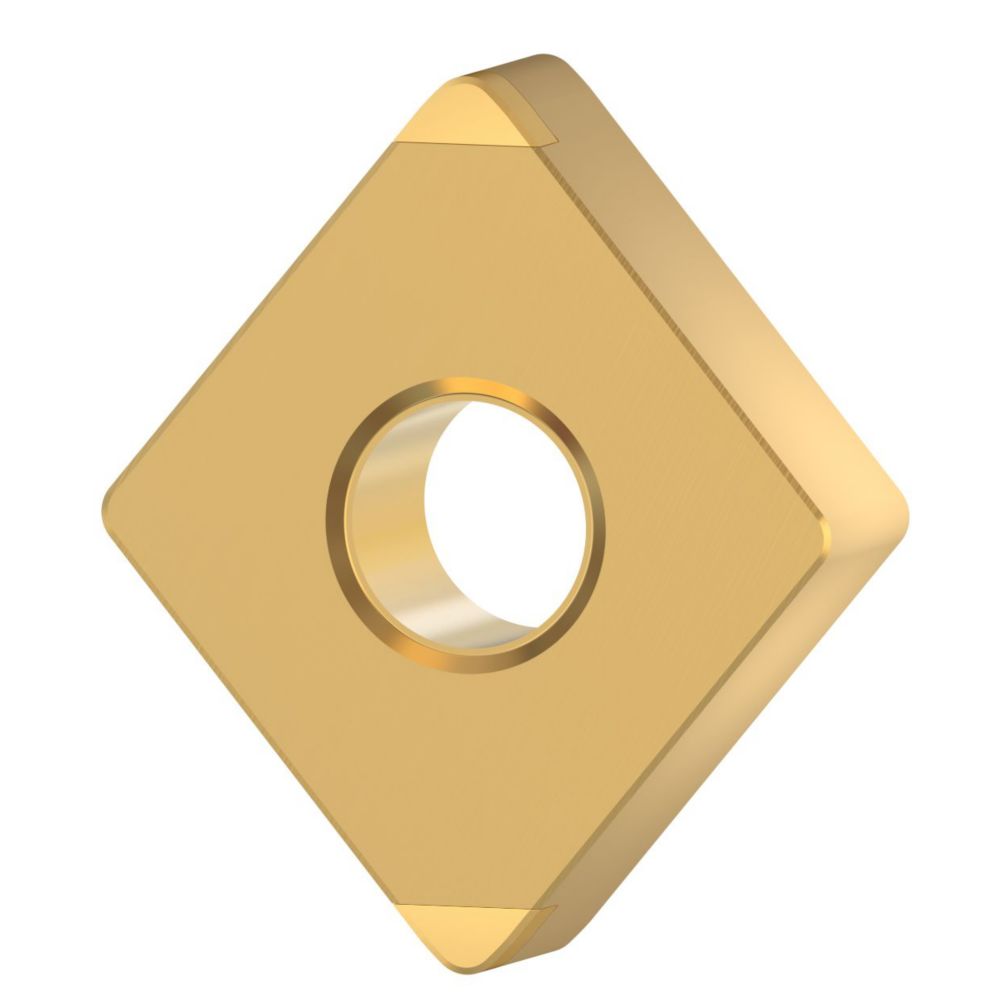

Kennametal • Kenloc™ • Negative Inserts • CNGA • Wiper • Single-Sided Mini Tip • CNGA120412S01515GWMMT KBH20B
Kennametal • Kenloc™ • Negative Inserts • CNGA • Wiper • Single-Sided Mini Tip • CNGA120412S01515GWMMT KBH20B - Image 2

Kennametal • Kenloc™ • Negative Inserts • CNGA • Wiper • Single-Sided Mini Tip • CNGA120412S01515GWMMT KBH20B

SKU: KEN7309834S/C: 7309834
Usually ships in 5 daysExcluding weekends / Subject to availability

$108.90inc
GST

Price Match

ISO Turning Insert • Negative C-PcBN Mini Tip Inserts for Hard Turning • CNGA-GWMMT

  • Improved edge design reduces overall cost without compromising performance
  • PVD multilayer coating provides a thermal barrier to reduce crater wear
  • Gold top layer coating for easy identification of flank wear
  • KBH10B for precision machining of hardened steels >48 HRC
More Info
View all:

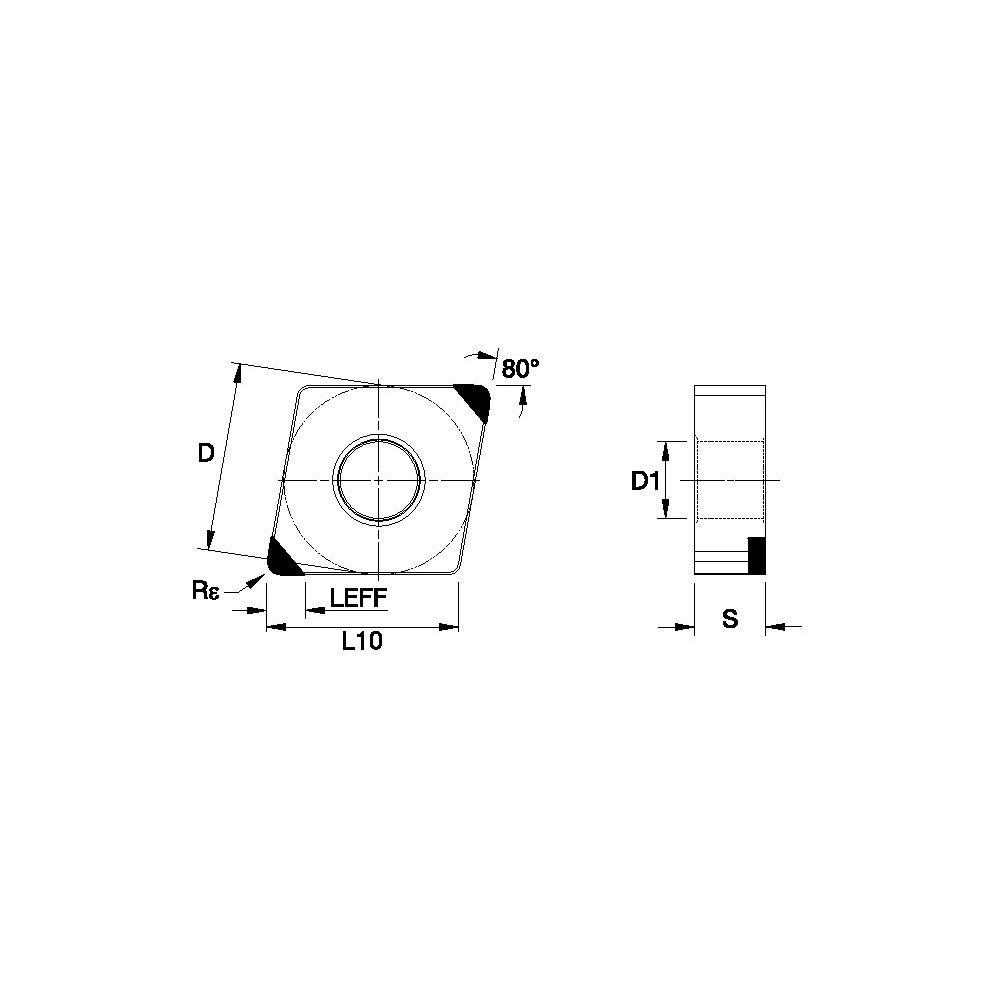

Technical Details
B Gamma Inch [BGAMMA]0.0059
B Gamma Metric [BGAMMA]0.1500
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
CoatingAlTiN
Corner Facet Length Inch [BS]0.0264
Corner Facet Length Metric [BS]0.6700
Corner Radius Frac [REPSILON]3/64
Corner Radius Inch [REPSILON]0.047200
Corner Radius Metric [REPSILON]1.2000
Cutting Tool MaterialCarbide
Engineering Insert GeometryNGA_S01515_MT
Ins Cut Edge Length Inch [L10]0.5077
Ins Cut Edge Length Metric [L10]12.8960
Ins Effect Cut Length Inch [Leff]0.0915
Ins Effect Cut Length Metric [Leff]2.3250
Insert Gage Dimension Inch [M]0.1097
Insert Gage Dimension Metric [M]2.7870
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.2030
Insert Hole Size Metric [D1]5.1600
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting2-Cylindrical Fixing Hole
Insert Num of Cutting Edges4
Insert Num of Indexes2
Insert ShapeC-Diamond/Rhombic 80
Insert Thickness Fraction [S]3/16
Insert Thickness Inch [S]0.1884
Insert Thickness Metric [S]4.7850
Lead Angle ANSI [KRA]5.000
Lead Angle ISO [KRI]75.000
Wiper Radius Inch [RW]0.300000
Wiper Radius Metric [RW]7.6200
