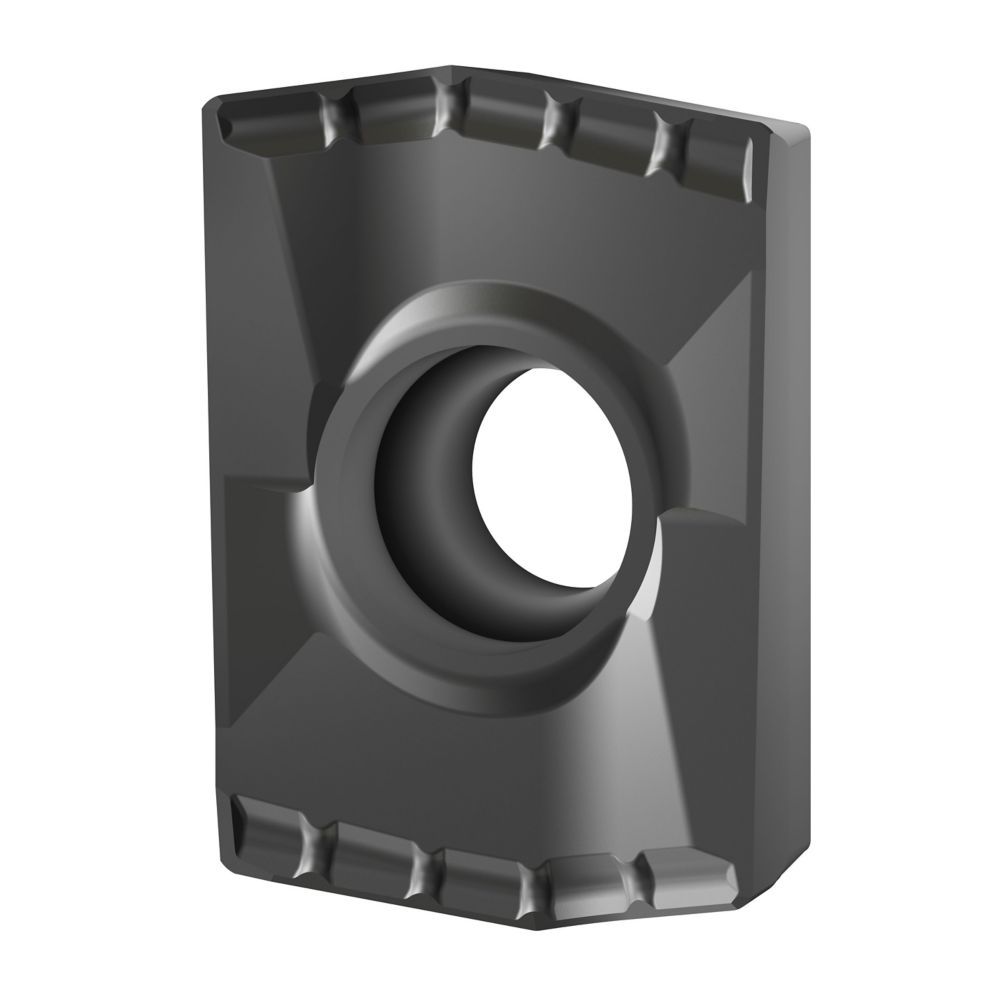

Kennametal • KSEM PLUS™ • Outboard Insert • DFR-MD Geometry • DFR040304D28MD KCMS40

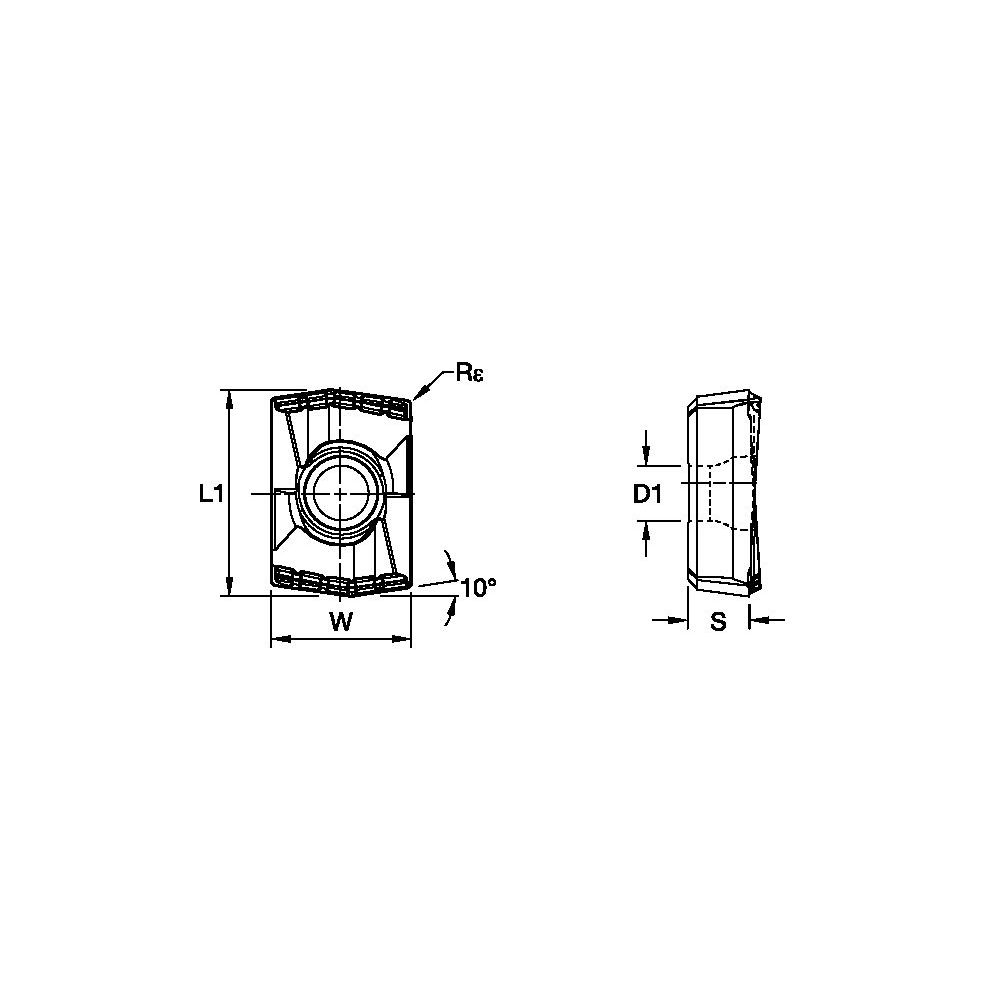

Kennametal • KSEM PLUS™ • Outboard Insert • DFR-MD Geometry • DFR040304D28MD KCMS40 - Image 2

Kennametal • KSEM PLUS™ • Outboard Insert • DFR-MD Geometry • DFR040304D28MD KCMS40

SKU: KEN7296159S/C: 7296159
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$22.96inc
GSTEACH

Price Match

Modular Drilling • Carbide Insert for KSEM PLUS™ A1 Heads

  • Drilling insert for primary application in steels and stainless steels
  • Two cutting edges
  • Outboard insert for diameter range 28-31,74mm (1.102-1.249")
More Info
View all:
Technical Details
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationMD
Clearance Angle Major [ALPHAN]7.5
CoatingAlTiN
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015625
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialCarbide
Engineering Insert GeometryDFR-MD
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1122
Insert Hole Size Metric [D1]2.8500
Insert IC Size Inch [D]0.3150
Insert IC Size Metric [D]8.0000
Insert Length Inch [LI]0.4236
Insert Length Metric [LI]10.7590
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert ShapeB-Parallelogram 82
Insert Thickness Inch [S]0.1490
Insert Thickness Metric [S]3.7900
Insert Width Inch [W]0.2860
Insert Width Metric [W]7.2600

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
