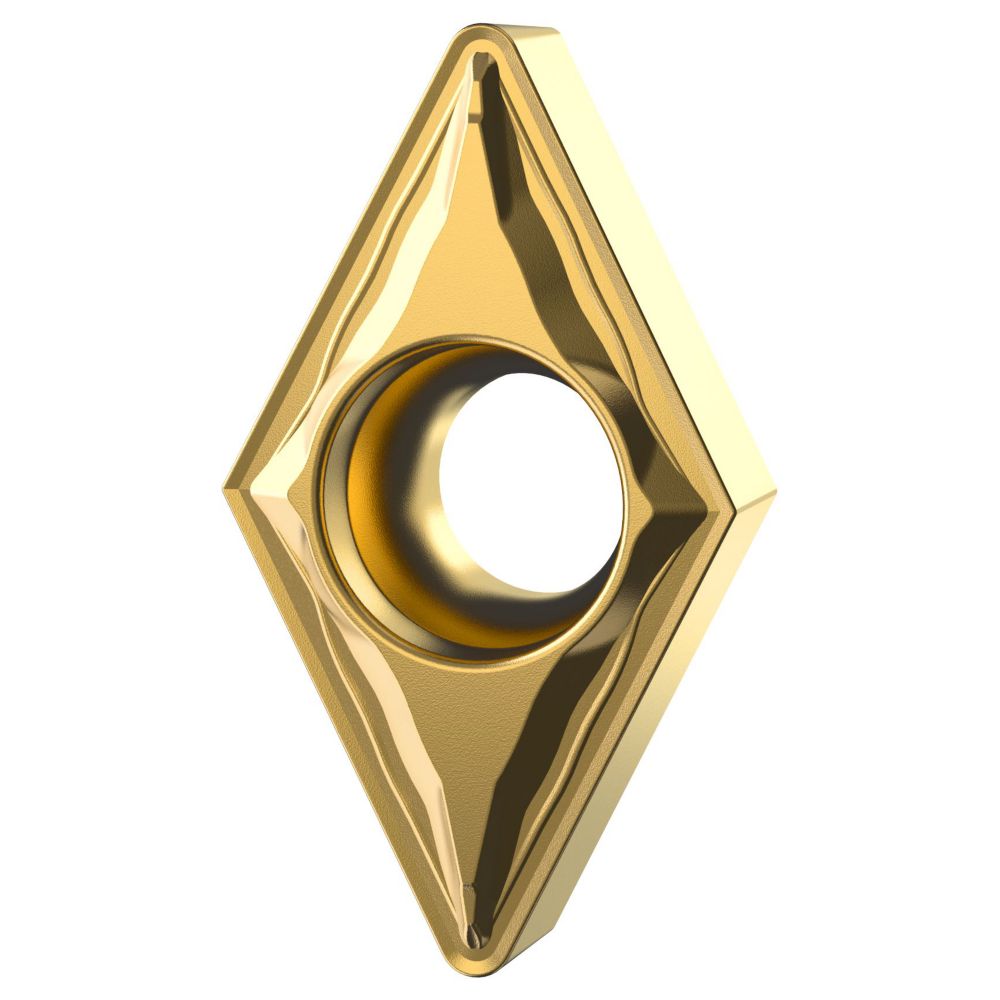

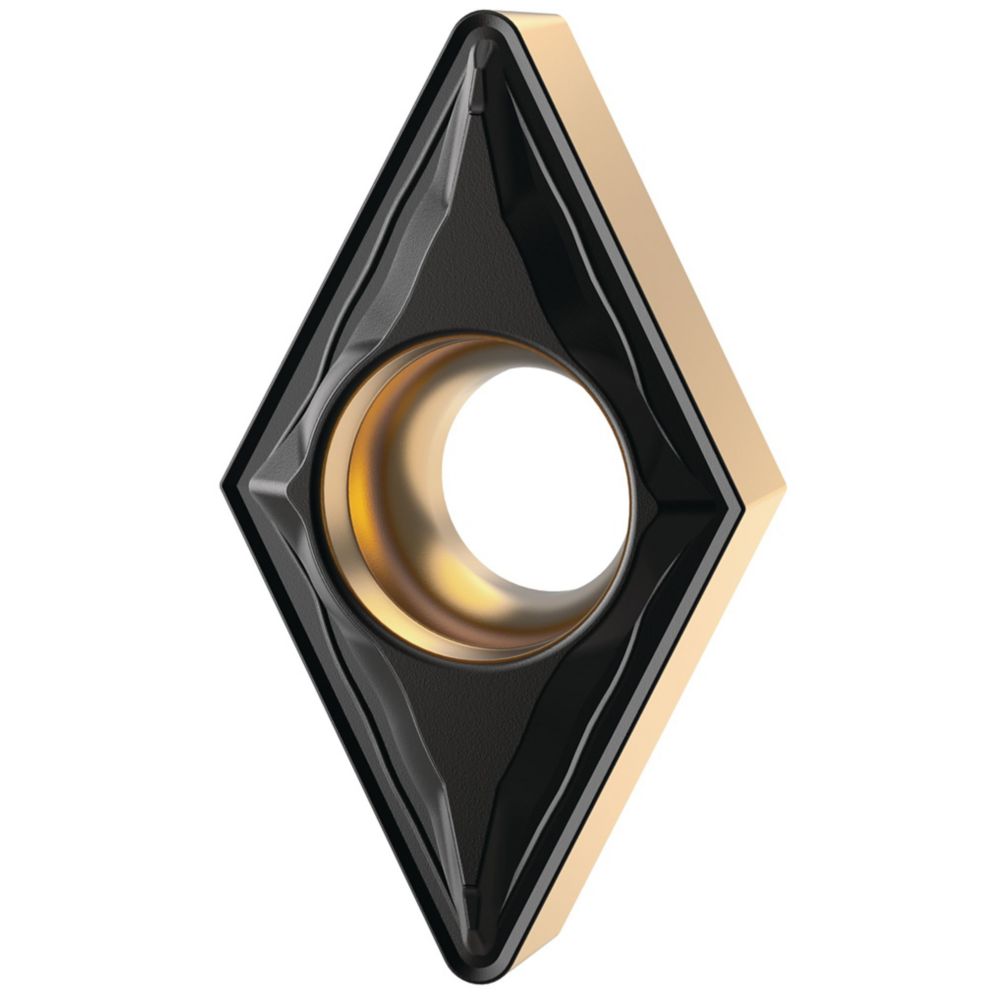

Kennametal • Screw-On • DCMT Insert • Positive • FP • DCMT11T302FP KCP10C

Name: Kennametal • Screw-On • DCMT Insert • Positive • FP • DCMT11T302FP KCP10C
SKU: KEN7292524
Availability: InStock

SKU: KEN7292524S/C: 7292524

Usually ships in 5 days

$25.77inc
GST

ISO Turning Carbide Insert • Finishing Positive Geometry

Finishing geometry with positive rake face for chip control in difficult materials
Beyond™ Drive™ grades included

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	FP
Clearance Angle Major [ALPHAN]	7.000
Clearance Angle Minor [ALPHANM]	7.000
Coating	Al2 O3
Corner Radius Frac [REPSILON]	.008
Corner Radius Inch [REPSILON]	0.008000
Corner Radius Metric [REPSILON]	0.2000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MT_FP
Ins Cut Edge Length Inch [L10]	0.4578
Ins Cut Edge Length Metric [L10]	11.6280
Insert Gage Dimension Inch [M]	0.2092
Insert Gage Dimension Metric [M]	5.3150
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1732
Insert Hole Size Metric [D1]	4.4000
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges	2
Insert Shape	D-Diamond/Rhombic 55
Insert Thickness Fraction [S]	5/32
Insert Thickness Inch [S]	0.1563
Insert Thickness Metric [S]	3.9700

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
