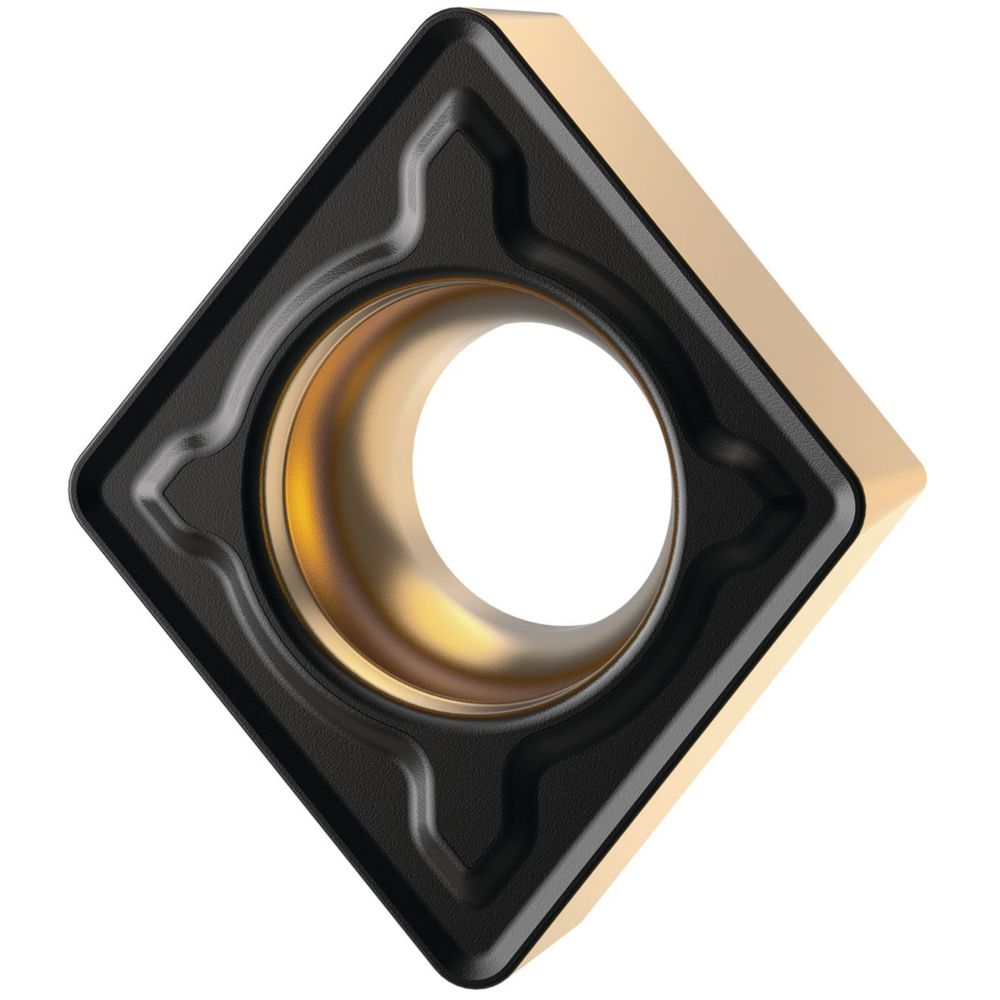

Kennametal • Screw-On • CCMT Insert • Positive • MF • CCMT09T304MF KCP10C

Name: Kennametal • Screw-On • CCMT Insert • Positive • MF • CCMT09T304MF KCP10C
SKU: KEN7292485
Availability: InStock

SKU: KEN7292485S/C: 7292485

Usually ships in 5 days

$22.87inc
GST

ISO Turning Carbide Insert • Medium Finishing Geometry

Versatile geometry to be used for finishing and medium application in multiple material groups
Beyond™ Drive™ grades included

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	MF
Clearance Angle Major [ALPHAN]	7.000
Clearance Angle Minor [ALPHANM]	7.000
Coating	Al2 O3
Corner Radius Frac [REPSILON]	1/64
Corner Radius Inch [REPSILON]	0.015625
Corner Radius Metric [REPSILON]	0.4000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MT_MF
Ins Cut Edge Length Inch [L10]	0.3808
Ins Cut Edge Length Metric [L10]	9.6720
Insert Gage Dimension Inch [M]	0.0955
Insert Gage Dimension Metric [M]	2.4260
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1732
Insert Hole Size Metric [D1]	4.4000
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges	4
Insert Shape	C-Diamond/Rhombic 80
Insert Thickness Fraction [S]	5/32
Insert Thickness Inch [S]	0.1563
Insert Thickness Metric [S]	3.9700

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
