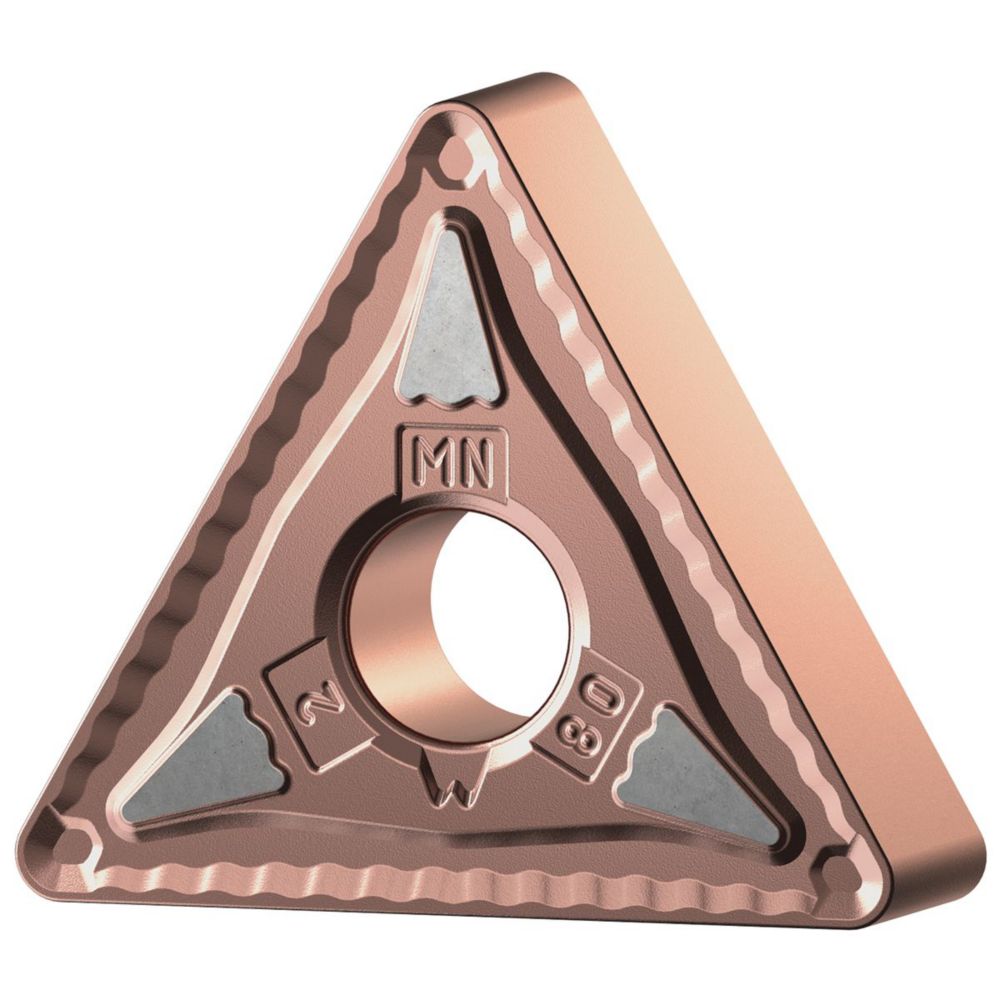

Kennametal • Kenloc™ • TNMG Insert • Negative • MN • TNMG220408MN KCP10C

Name: Kennametal • Kenloc™ • TNMG Insert • Negative • MN • TNMG220408MN KCP10C
SKU: KEN7292309
Availability: InStock

SKU: KEN7292309S/C: 7292309

Usually ships in 5 days

$33.28inc
GST

ISO Turning Carbide Insert • Medium Negative Geometry

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	MN
Clearance Angle Major [ALPHAN]	0.000
Coating	Al2 O3
Corner Radius Frac [REPSILON]	1/32
Corner Radius Inch [REPSILON]	0.031250
Corner Radius Metric [REPSILON]	0.8000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MG_MN
Ins Cut Edge Length Inch [L10]	0.8661
Ins Cut Edge Length Metric [L10]	21.9970
Insert Gage Dimension Inch [M]	0.7188
Insert Gage Dimension Metric [M]	18.2560
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.2031
Insert Hole Size Metric [D1]	5.1600
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	6
Insert Num of Indexes	3
Insert Shape	T-Triangle 60
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7600

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
