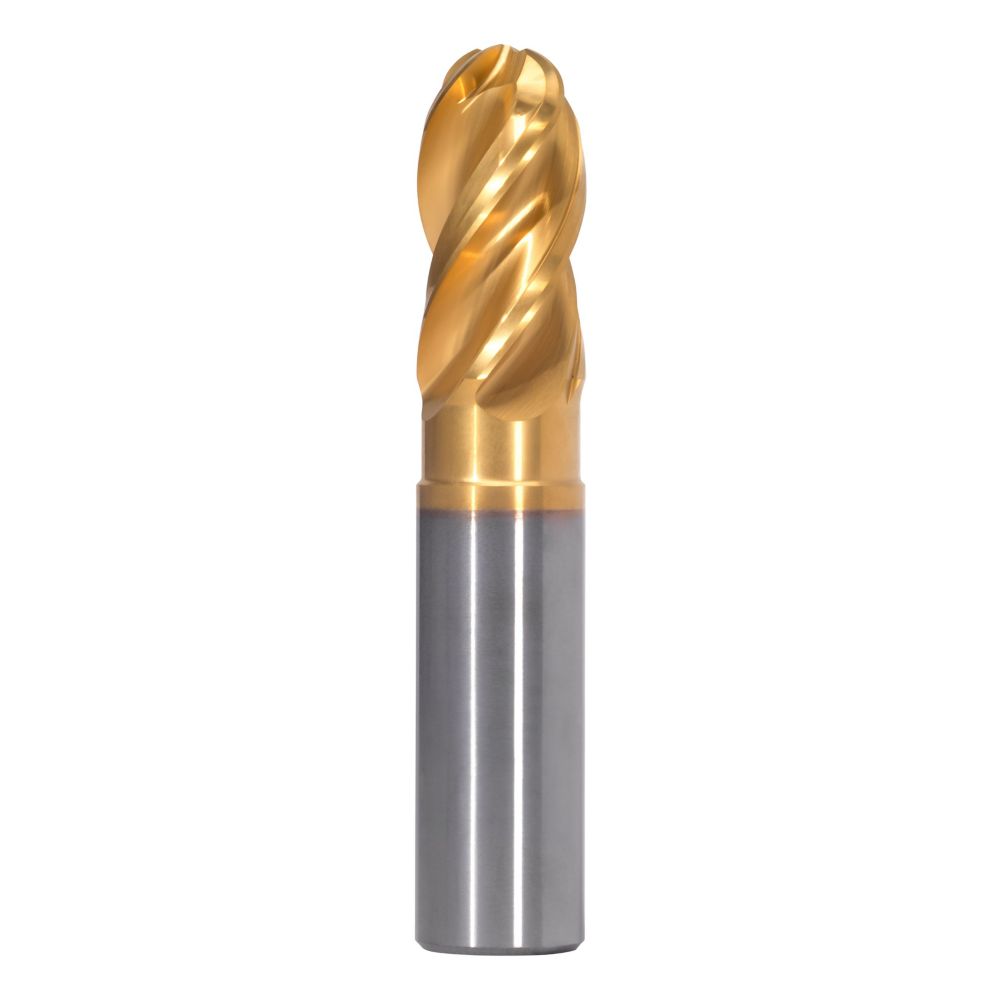

Kennametal • GOmill™ PRO • Ball Nose • 4 Flutes • Necked • Plain Shank • Metric • GOPR4BN0800R019HAM KCU20

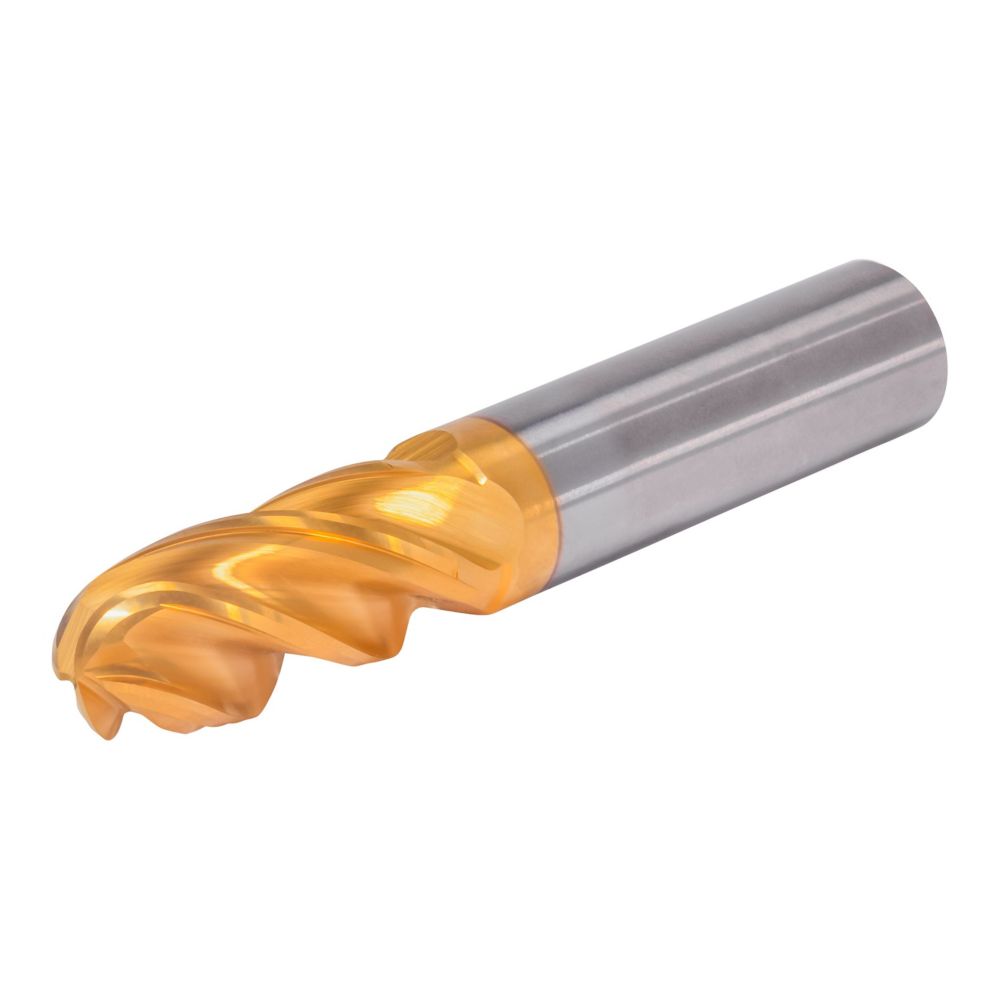

Kennametal • GOmill™ PRO • Ball Nose • 4 Flutes • Necked • Plain Shank • Metric • GOPR4BN0800R019HAM KCU20 - Image 2
Kennametal • GOmill™ PRO • Ball Nose • 4 Flutes • Necked • Plain Shank • Metric • GOPR4BN0800R019HAM KCU20 - Image 3

Kennametal • GOmill™ PRO • Ball Nose • 4 Flutes • Necked • Plain Shank • Metric • GOPR4BN0800R019HAM KCU20

SKU: KEN7231268S/C: 7231268
Usually ships in 5 daysExcluding weekends / Subject to availability

$25.75inc
GST

Price Match

Solid Carbide End Mill for Roughing and Finishing of Multiple Materials

  • Unequal flute spacing for better vibration control and tool life.
  • Multilayer TiN/TiALN coating for high performance at medium-high cutting on steels, stainless steels and cast iron.
  • Ideal for shops working in the general engineering, transportation, energy and medical industries.
  • Designed for side and shoulder milling, helical milling, pocketing, slotting and ramping.
More Info
View all:

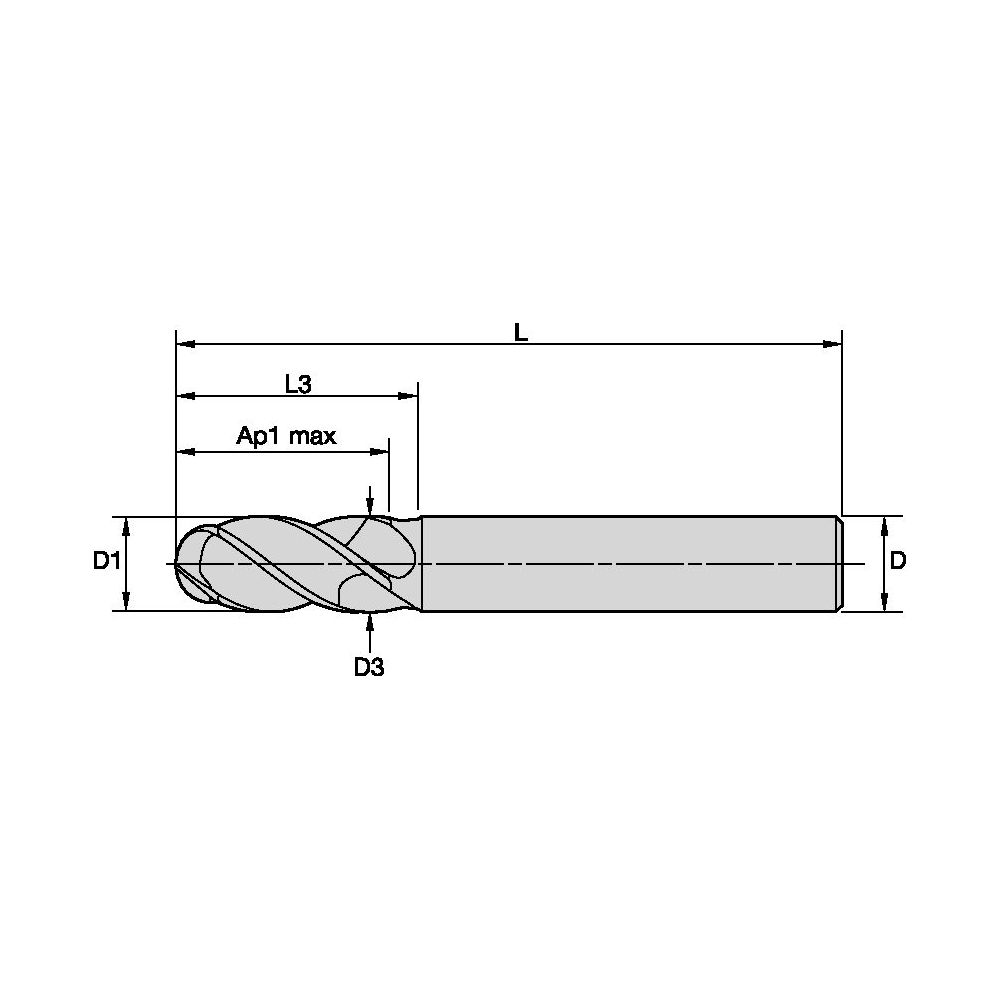

Technical Details
1st Max Cut Depth Inch [AP1MAX]0.7480
1st Max Cut Depth Metric [AP1MAX]19.0000
Adapter Style Machine SideStraight-Cylindrical
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Inch [D]0.3150
Adapter/Shank/Bore Dia Metric [D]8.0000
Body Material GroupCarbide
Centre Cutting ToolCentre Cutting
Clamping LG Mach Side Inch [L9MS]1.4079
Clamping LG Mach Side Metric [L9MS]35.7600
CoatingTiN/TiAlN
Coolant SupplyNo
Corner StyleBall Nose
Ctlg Mounting Style Mach SidePLAIN
Cutting Tool MaterialCarbide
Effective Cutting Dia Inch [D1]0.3150
Effective Cutting Dia Metric [D1]8.0000
End Mill Finish TypeFinisher
FamilyGOMILLPRO
Functional Length Inch [LF]2.4803
Functional Length Metric [LF]63.0000
Hand of ToolR - Right
Head Length Inch [L2]0.7480
Head Length Metric [L2]19.0000
Helix Angle [FHA]37.000
Helix HandR - Right Hand Helix/Flute
Lead Angle ANSI [KRA]0.000
Lead Angle ISO [KRI]90.000
Maximum Depth End Mill Inch [L3]1.0630
Maximum Depth End Mill Metric [L3]27.0000
Maximum Plunge Depth Inch [AZ]0.7480
Maximum Plunge Depth Metric [AZ]19.0000
Milling TypeE-End Mill
Neck Diameter Inch [D3]0.2961
Neck Diameter Metric [D3]7.5200
Number of Centre Cutting Edges2
Number of Ends1 - Single Ended End Mill
Number of Flutes4
Overall Length Inch [L]2.4803
Overall Length Metric [L]63.0000
Prof or Ball Nose Radi Inch [R]0.1575
Prof or Ball Nose Radi Metric [R]4.0000
Shank Length Inch [LS]1.4079
Shank Length Metric [LS]35.7600
Tool Assembly Length Inch [LTA]1.0724
Tool Assembly Length Metric [LTA]27.2400
