Kennametal • GOmill™ PRO • Square End • 4 Flutes • Weldon Shank • Metric • GOPR4SE1000R022HBM KCU20

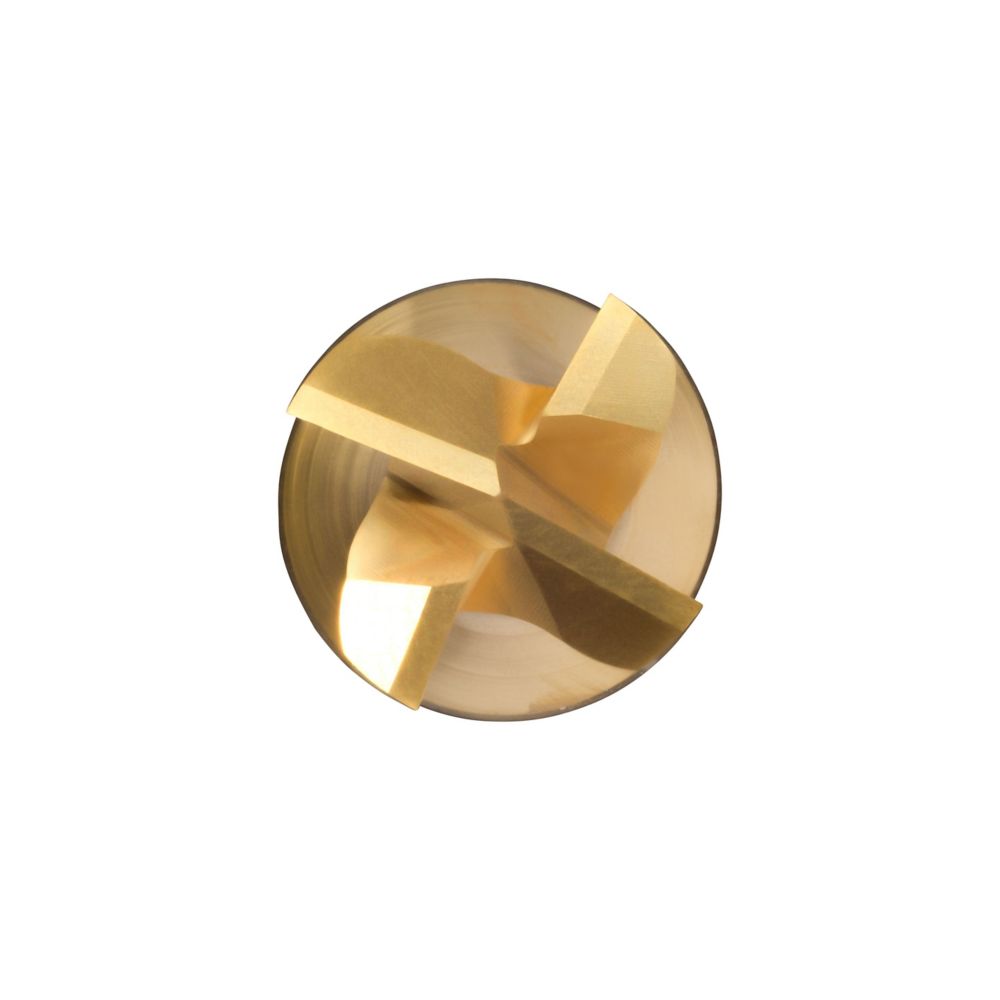

Kennametal • GOmill™ PRO • Square End • 4 Flutes • Weldon Shank • Metric • GOPR4SE1000R022HBM KCU20 - Image 2

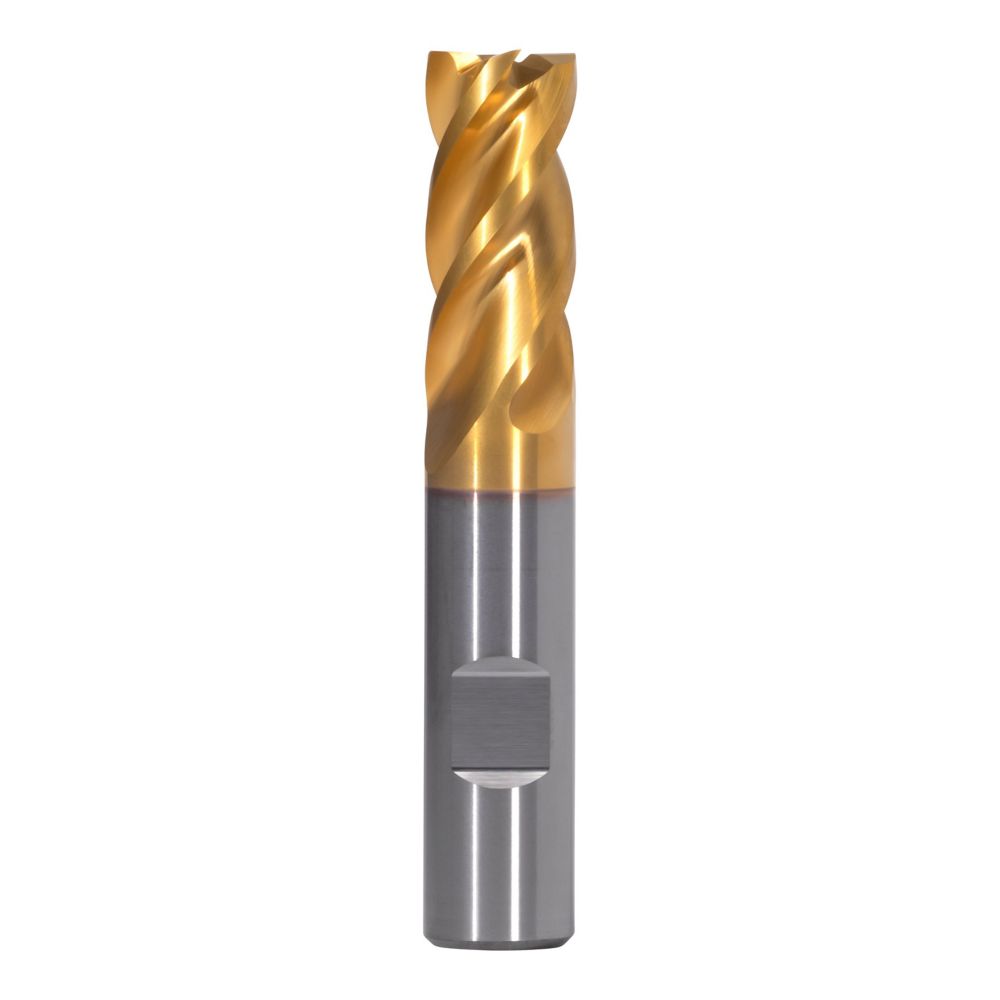

Kennametal • GOmill™ PRO • Square End • 4 Flutes • Weldon Shank • Metric • GOPR4SE1000R022HBM KCU20 - Image 3
Kennametal • GOmill™ PRO • Square End • 4 Flutes • Weldon Shank • Metric • GOPR4SE1000R022HBM KCU20 - Image 4

Kennametal • GOmill™ PRO • Square End • 4 Flutes • Weldon Shank • Metric • GOPR4SE1000R022HBM KCU20

SKU: KEN7231134S/C: 7231134
Usually ships in 5 daysExcluding weekends / Subject to availability

$28.36inc
GST

Price Match

Solid Carbide End Mill for Roughing and Finishing of Multiple Materials

  • Asymmetric divided flute and variable helix angle for better vibration control and tool life.
  • Multilayer TiN/TiALN coating for high performance at medium-high cutting on steels, stainless steels and cast iron.
  • Ideal for shops working in the general engineering, transportation, energy and medical industries.
  • Designed for side and shoulder milling, helical milling, pocketing, slotting and ramping.
More Info
View all:
Technical Details

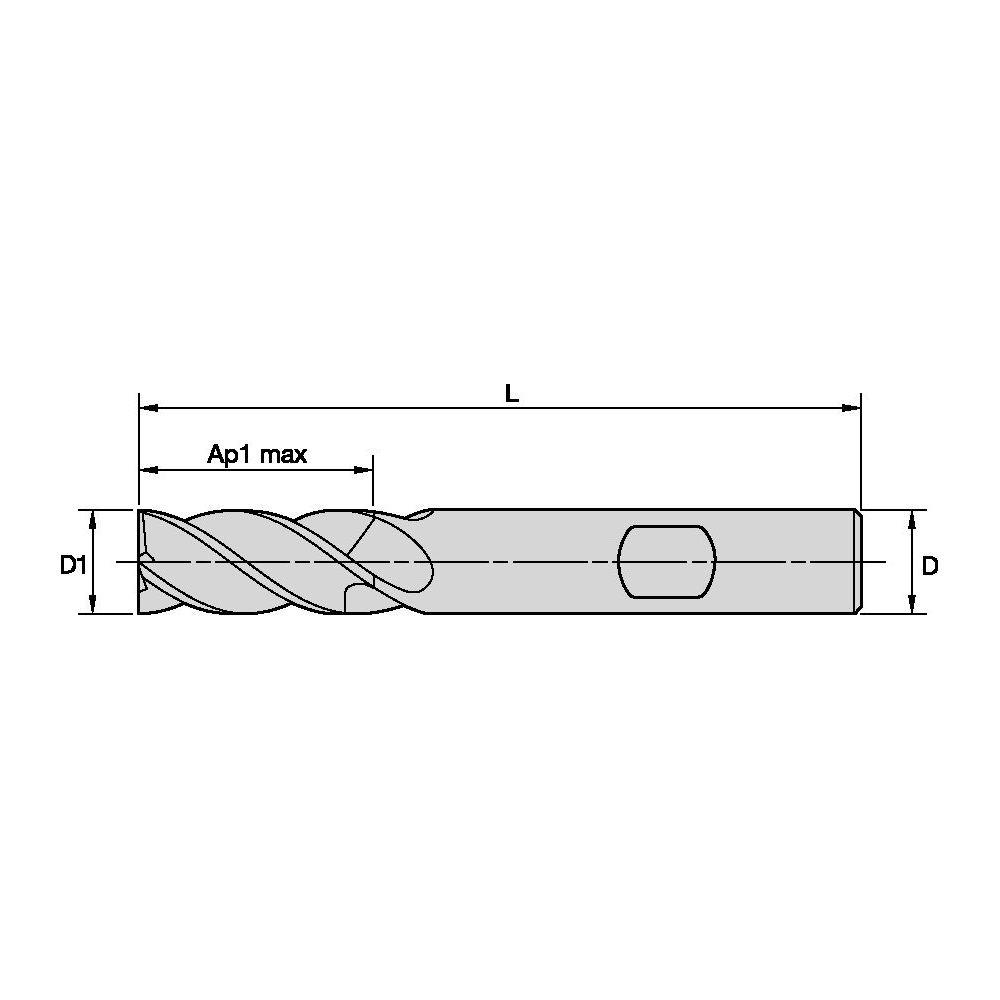

1st Max Cut Depth Inch [AP1MAX]0.8661
1st Max Cut Depth Metric [AP1MAX]22.0000
Adapter Style Machine SideWeldon
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Inch [D]0.3937
Adapter/Shank/Bore Dia Metric [D]10.0000
Body Material GroupCarbide
Centre Cutting ToolCentre Cutting
Clamping LG Mach Side Inch [L9MS]1.5354
Clamping LG Mach Side Metric [L9MS]39.0000
CoatingTiN/TiAlN
Coolant SupplyNo
Corner StyleSquare End
Ctlg Mounting Style Mach SideWELDON
Cutting Tool MaterialCarbide
Effective Cutting Dia Inch [D1]0.3937
Effective Cutting Dia Metric [D1]10.0000
End Mill Finish TypeFinisher
FamilyGOMILLPRO
Functional Length Inch [LF]2.8346
Functional Length Metric [LF]72.0000
Hand of ToolR - Right
Helix Angle [FHA]37.000
Helix HandR - Right Hand Helix/Flute
Lead Angle ANSI [KRA]0.000
Lead Angle ISO [KRI]90.000
Max Ramping Angle3.000
Maximum Depth End Mill Inch [L3]1.2992
Maximum Depth End Mill Metric [L3]33.0000
Maximum Plunge Depth Inch [AZ]0.8661
Maximum Plunge Depth Metric [AZ]22.0000
Milling TypeE-End Mill
Number of Centre Cutting Edges2
Number of Ends1 - Single Ended End Mill
Number of Flutes4
Overall Length Inch [L]2.8346
Overall Length Metric [L]72.0000
Shank Length Inch [LS]1.5354
Shank Length Metric [LS]39.0000
Tool Assembly Length Inch [LTA]1.2992
Tool Assembly Length Metric [LTA]33.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
