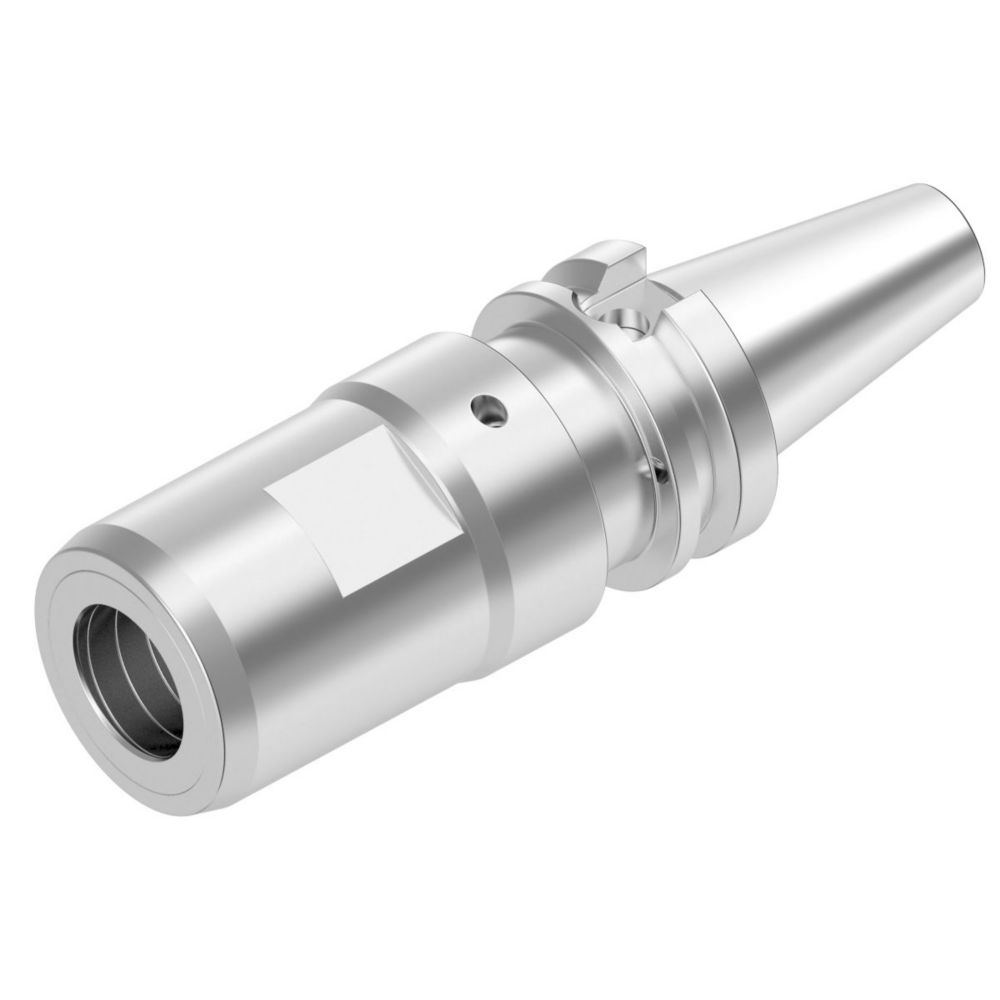

Kennametal • Hydraulic Chuck • BT40-B/AD • ST-Line • Metric • BT40BHCP25150M
Kennametal • Hydraulic Chuck • BT40-B/AD • ST-Line • Metric • BT40BHCP25150M - Image 2

Kennametal • Hydraulic Chuck • BT40-B/AD • ST-Line • Metric • BT40BHCP25150M

SKU: KEN7226191S/C: 7226191
Usually ships in 5 daysExcluding weekends / Subject to availability

$961.95inc
GST

Price Match

Hydraulic Chuck for structural steel drilling with KSEM ST-Line drill bodies

This product doesn't have any features.

More Info
View all:

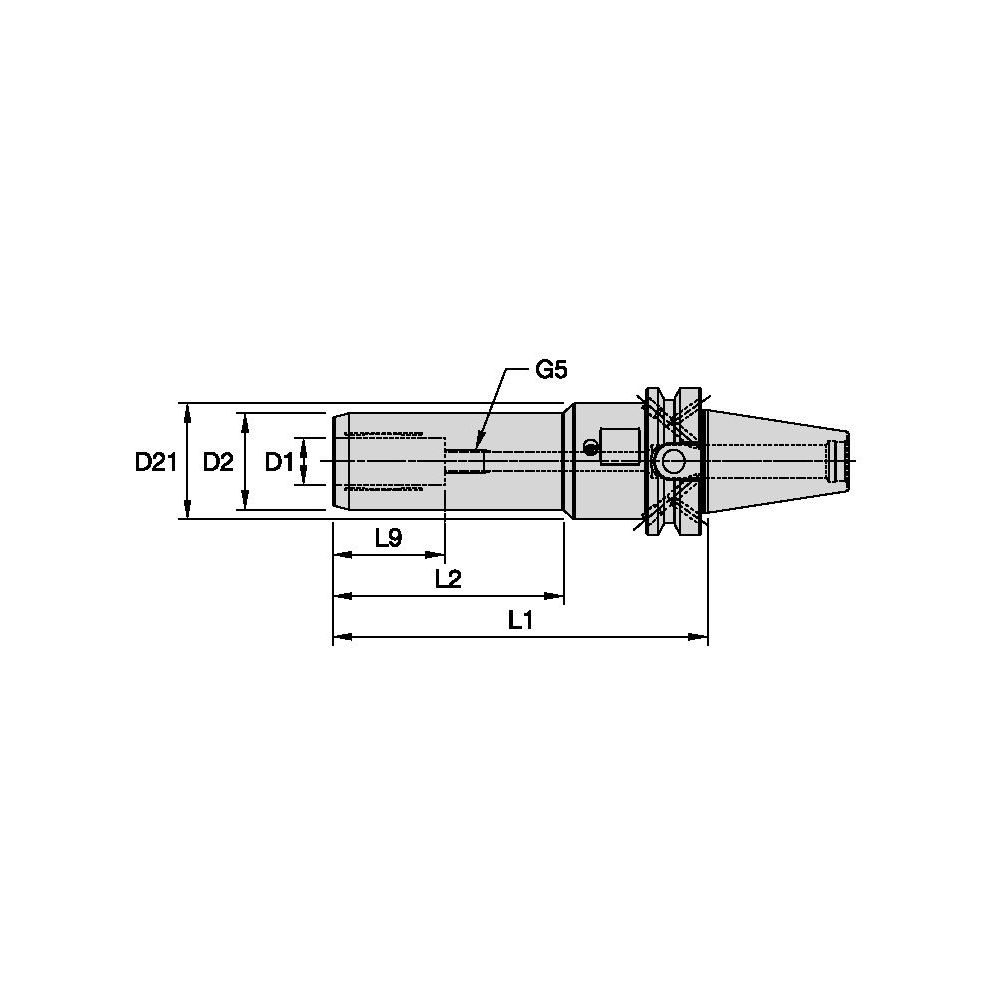

Technical Details
Actuation Screw ID Drive Size5 mm
Adapter Style Machine SideBT-JIS.B 6339
Adapter Type Machine SideTaper Shank
Adapter Type Workpiece SideZYL - Cylindrical Adapter
Adapter/Shank/Bore Dia Frac [D]1 3/4
Adapter/Shank/Bore Dia Inch [D]1.7500
Adapter/Shank/Bore Dia Metric [D]44.4500
Adapter/Shank/Bore Dia WKPS Inch [D1]0.9843
Adapter/Shank/Bore Dia WKPS Metric [D1]25.0000
Adjustment Range Inch [V]0.0000
Adjustment Range Metric [V]0.0000
Body Dia 1 Workpiece Side Inch [D2]1.9646
Body Dia 1 Workpiece Side Metric [D2]49.9000
Body Dia 2 Workpiece Side Inch [D21]2.4744
Body Dia 2 Workpiece Side Metric [D21]62.8500
Body Dia Machine Side Inch [D5]2.4793
Body Dia Machine Side Metric [D5]62.9750
Centreline Height Inch [H1]0.0000
Centreline Height Metric [H1]0.0000
Clamping Conn THD Size MS INT [G3]M16 X 2
Clamping Length Inch [L9]2.2441
Clamping Length Metric [L9]57.0000
Clamping LG Mach Side Inch [L9MS]2.5748
Clamping LG Mach Side Metric [L9MS]65.4000
Coolant Hole Dia Exit Inch [A1]0.3346
Coolant Hole Dia Exit Metric [A1]8.5000
Coolant Hole Dia Inch [A]0.5522
Coolant Hole Dia Metric [A]14.0250
Coolant SupplyYes
Flange Length Metric [FLGT]25.0000
Flange-Front End Dist Inch [L4]4.8425
Flange-Front End Dist Metric [L4]123.0000
Front End Tool TypeHydraulic Chuck
Functional Length Inch [LF]5.9055
Functional Length Metric [LF]150.0000
Gage Length 1 Inch [L1]5.9055
Gage Length 1 Metric [L1]150.0000
Hand of ToolN - Neutral
Max RPM25000
Overall Length Inch [L]8.4803
Overall Length Metric [L]215.4000
Protruding Length Inch [LPR]5.9055
Protruding Length Metric [LPR]150.0000
Ret Knob Blank Hole Dia Inch [D13]0.6697
Ret Knob Blank Hole Dia Metric [D13]17.0100
Shank Length Inch [LS]2.5748
Shank Length Metric [LS]65.4000
System Size Machine Side [CSMS]BT40
Tool Assembly Length Inch [LTA]5.9055
Tool Assembly Length Metric [LTA]150.0000
Usable Length 2 Inch [L21]4.8425
Usable Length 2 Metric [L21]123.0000
Usable Length Inch [L2]3.3465
Usable Length Metric [L2]85.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
