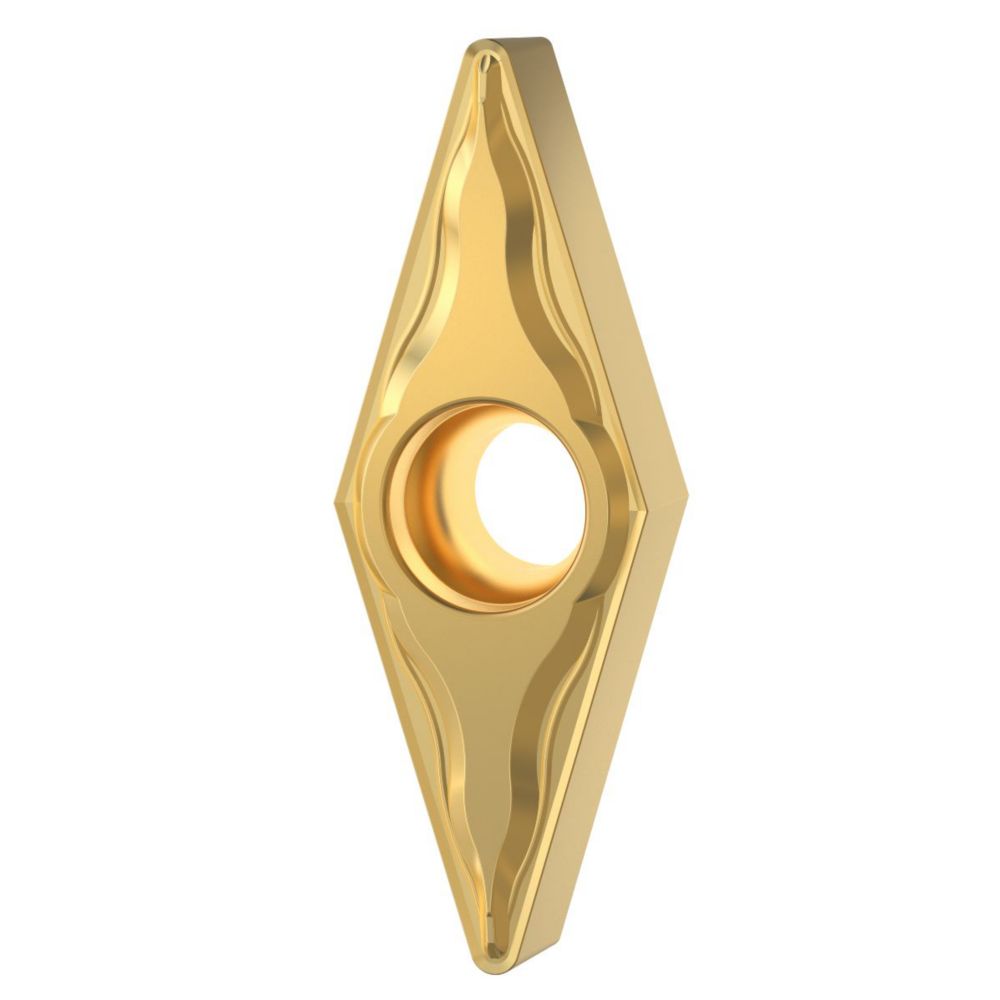

Kennametal • Screw-On • VBMT Insert • Positive • FP • VBMT110304FP KCU25B

Name: Kennametal • Screw-On • VBMT Insert • Positive • FP • VBMT110304FP KCU25B
SKU: KEN7167828
Availability: InStock

SKU: KEN7167828S/C: 7167828

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$31.34inc
GSTEACH

ISO Turning Carbide Insert • Finishing Positive Geometry

Finishing geometry with positive rake face for chip control in difficult materials
Beyond™ Drive™ grades included

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	FP
Clearance Angle Major [ALPHAN]	5.000
Clearance Angle Minor [ALPHANM]	5.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	1/64
Corner Radius Inch [REPSILON]	0.015625
Corner Radius Metric [REPSILON]	0.4000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MT_FP
Ins Cut Edge Length Inch [L10]	0.4359
Ins Cut Edge Length Metric [L10]	11.0710
Insert Gage Dimension Inch [M]	0.2544
Insert Gage Dimension Metric [M]	6.4610
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1102
Insert Hole Size Metric [D1]	2.8000
Insert IC Size Fraction [D]	1/4
Insert IC Size Inch [D]	0.2500
Insert IC Size Metric [D]	6.3500
Insert Mounting	3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges	2
Insert Rake Angle [GAMMA]	15.000
Insert Shape	V-Diamond/Rhombic 35
Insert Thickness Fraction [S]	1/8
Insert Thickness Inch [S]	0.1250
Insert Thickness Metric [S]	3.1800

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
