Kennametal • TPHB110204 KCU25B

Name: Kennametal • TPHB110204 KCU25B
SKU: KEN7166918
Availability: InStock

SKU: KEN7166918S/C: 7166918

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$21.05inc
GSTEACH

Screw-On Inserts

This product doesn't have any features.

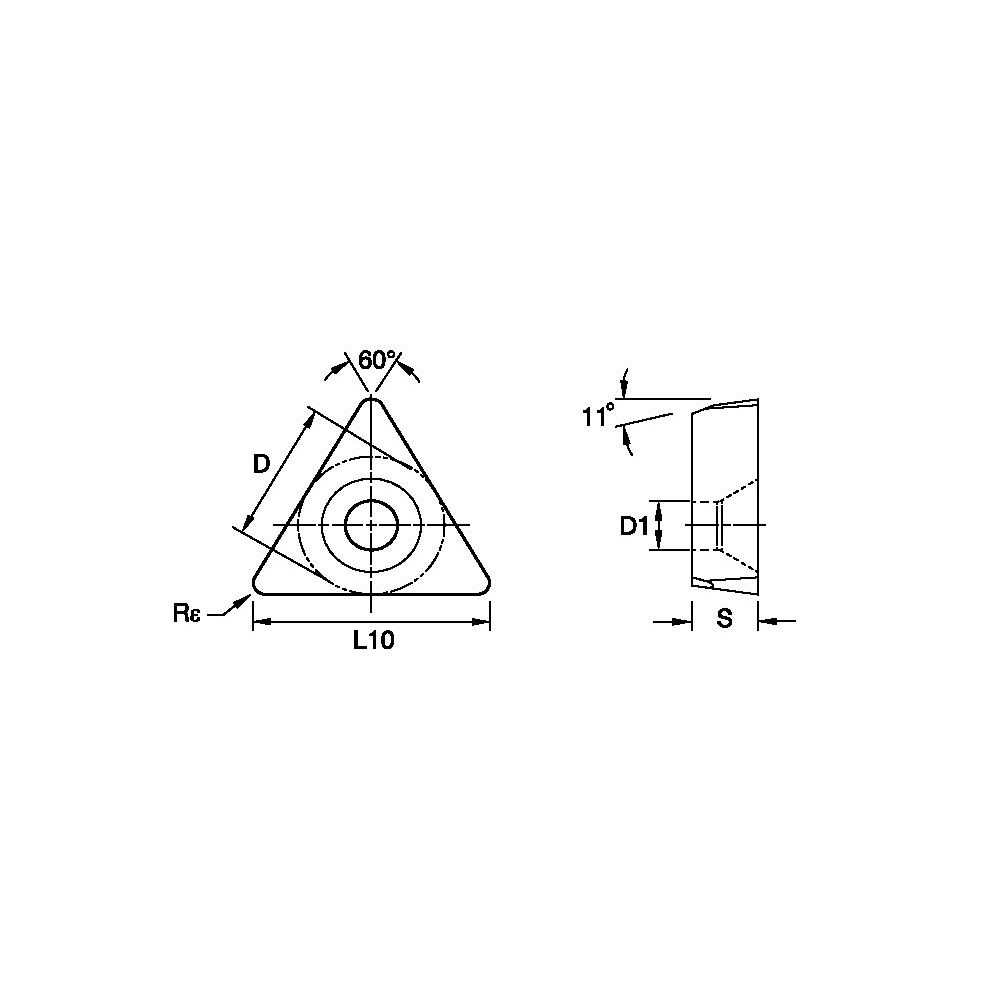

Technical Details
Chipbreaker	0-No Chipbreaker
Clearance Angle Major [ALPHAN]	11.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	.15
Corner Radius Inch [REPSILON]	0.015000
Corner Radius Metric [REPSILON]	0.3800
Cutting Tool Material	Carbide
Engineering Insert Geometry	HB
Ins Cut Edge Length Inch [L10]	0.4330
Ins Cut Edge Length Metric [L10]	11.0000
Insert Gage Dimension Inch [M]	0.3600
Insert Gage Dimension Metric [M]	9.1440
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1300
Insert Hole Size Metric [D1]	3.3020
Insert IC Size Fraction [D]	1/4
Insert IC Size Inch [D]	0.2500
Insert IC Size Metric [D]	6.3500
Insert Mounting	4-Part Cycl w/70-90 TaperScrew
Insert Num of Cutting Edges	3
Insert Shape	T-Triangle 60
Insert Thickness Fraction [S]	3/32
Insert Thickness Inch [S]	0.0938
Insert Thickness Metric [S]	2.3810
