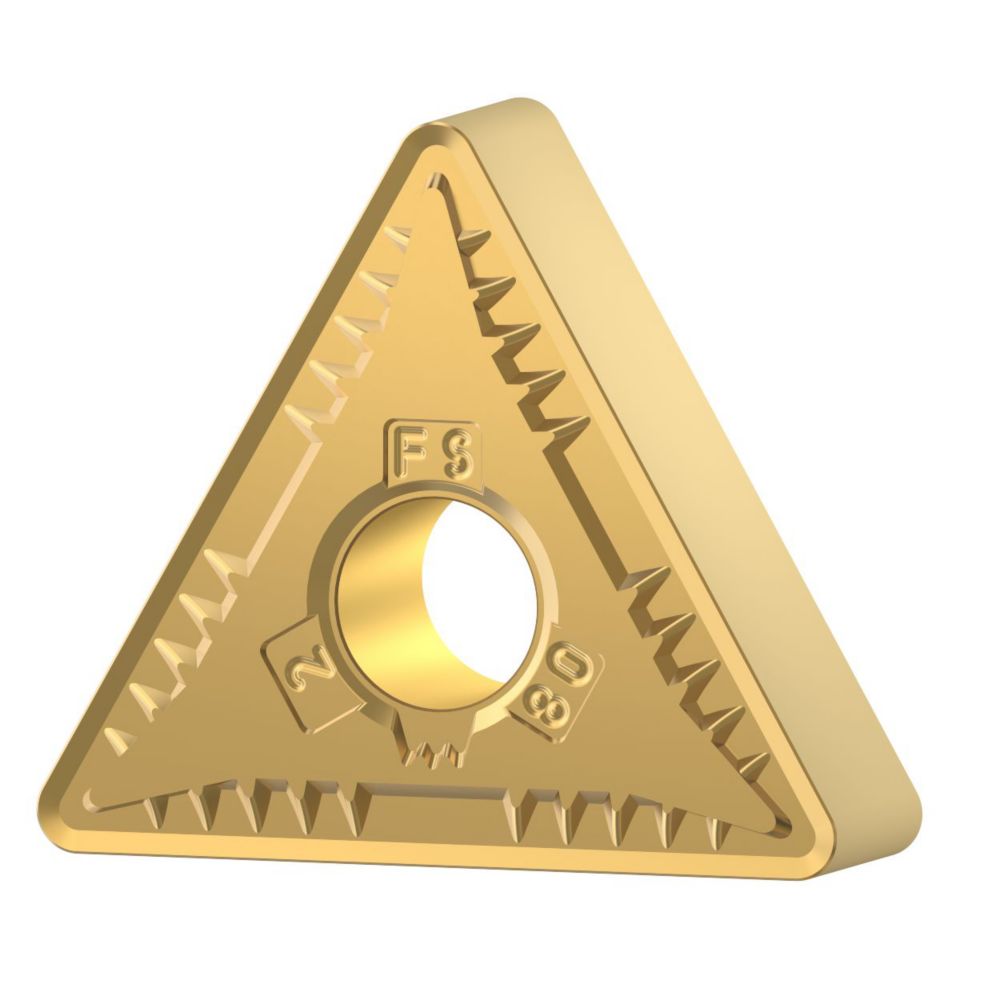

Kennametal • TNGG-FS • TNGG160402FS KCU25B

Name: Kennametal • TNGG-FS • TNGG160402FS KCU25B
SKU: KEN7166801
Availability: InStock

SKU: KEN7166801S/C: 7166801

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$32.67inc
GSTEACH

Kenloc™ Inserts

Finishing geometry utilized when edge line sharpness is critical, such as high-temperature and stainless applications.

Technical Details

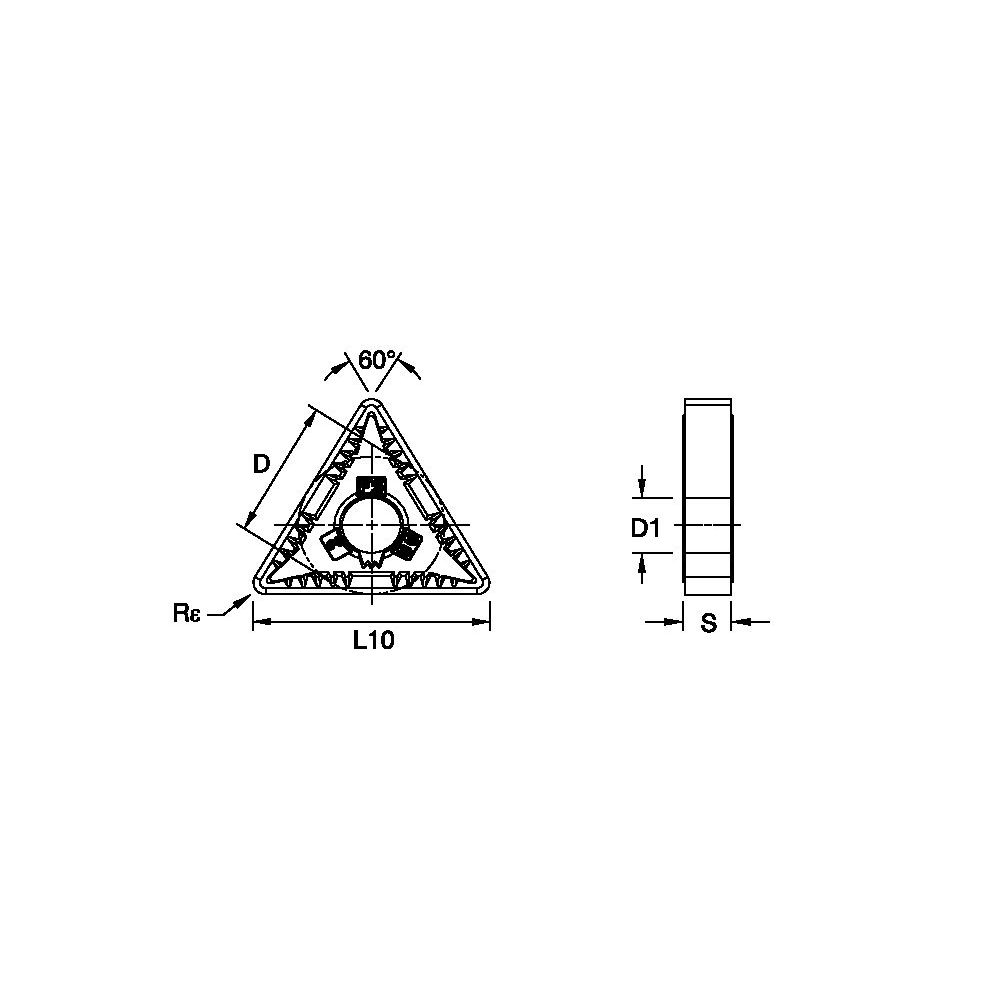

Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	FS
Clearance Angle Major [ALPHAN]	0.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	.008
Corner Radius Inch [REPSILON]	0.008000
Corner Radius Metric [REPSILON]	0.2000
Cutting Tool Material	Carbide
Engineering Insert Geometry	GG_FS
Ins Cut Edge Length Inch [L10]	0.6495
Ins Cut Edge Length Metric [L10]	16.4980
Insert Gage Dimension Inch [M]	0.5545
Insert Gage Dimension Metric [M]	14.0840
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1500
Insert Hole Size Metric [D1]	3.8100
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	6
Insert Shape	T-Triangle 60
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7600
