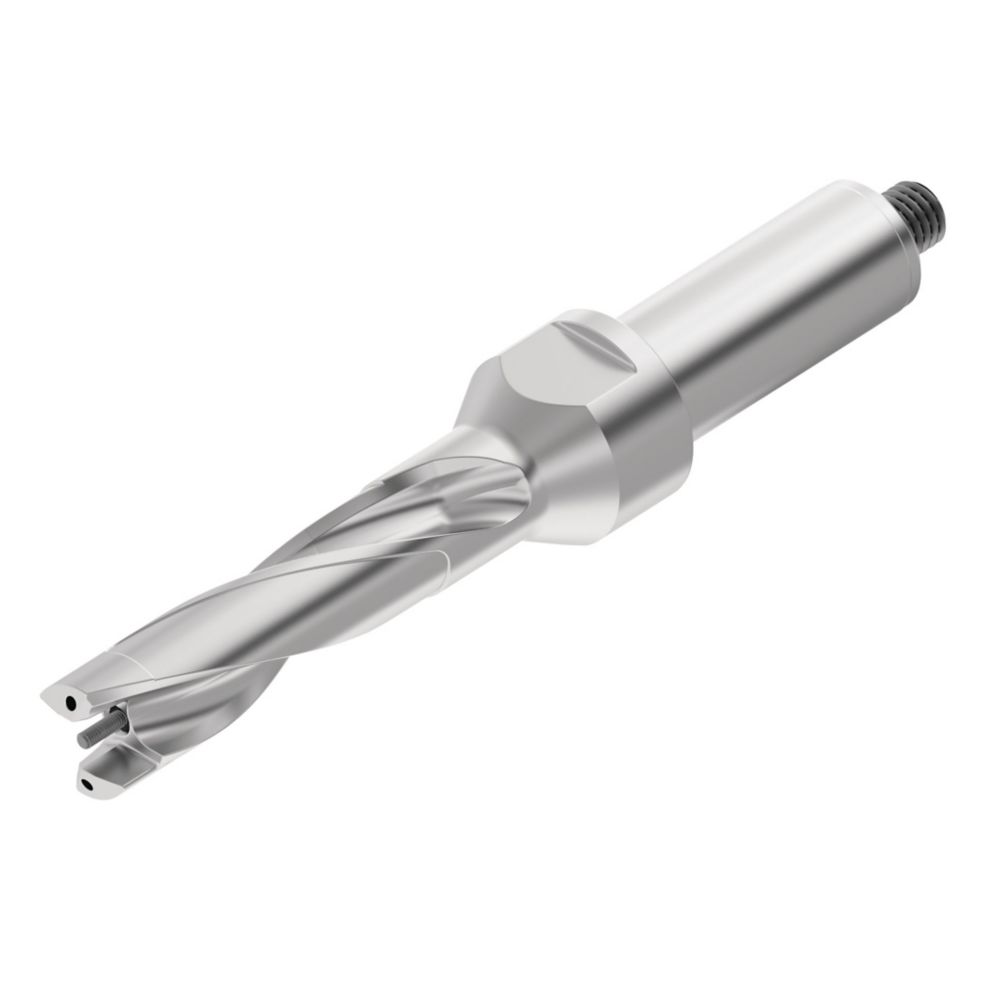

Kennametal • KSEM™ • ST-Line • Drill Body • SFP Shank • Metric • KSEM240ST130SFP25M

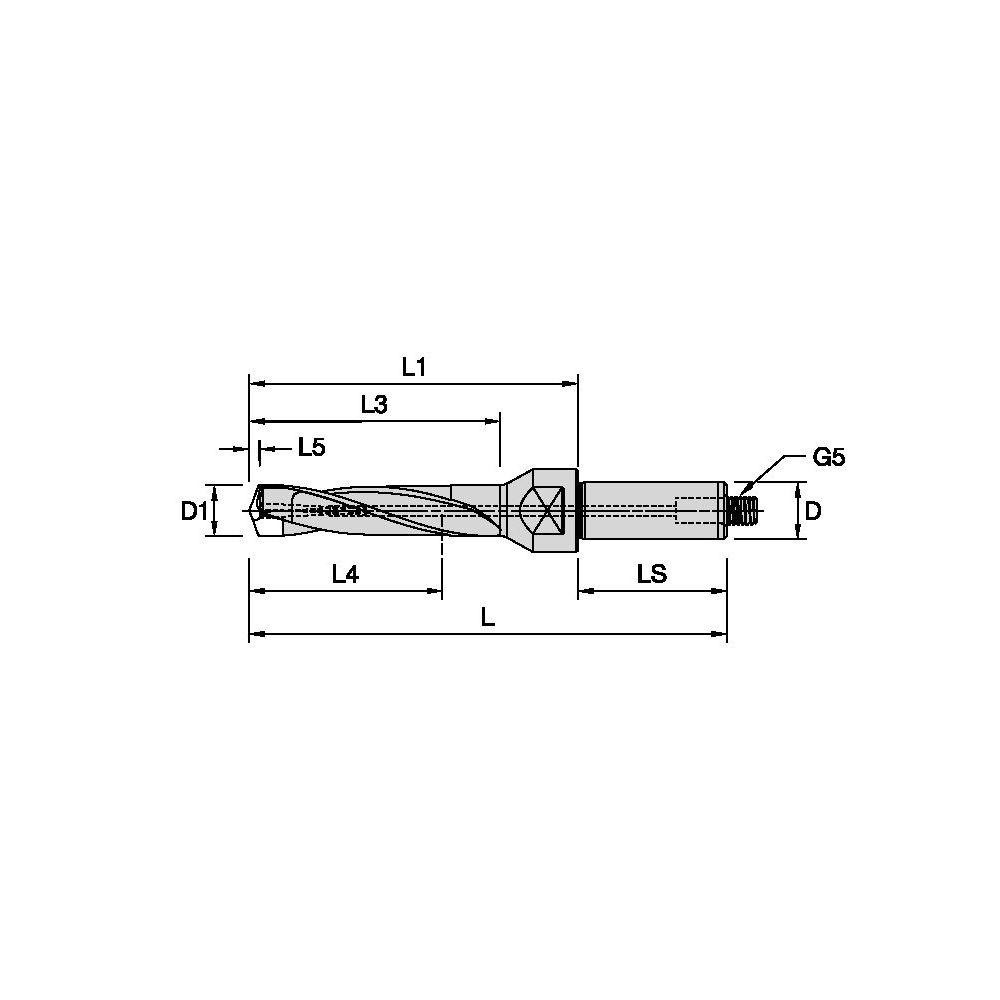

Kennametal • KSEM™ • ST-Line • Drill Body • SFP Shank • Metric • KSEM240ST130SFP25M - Image 2

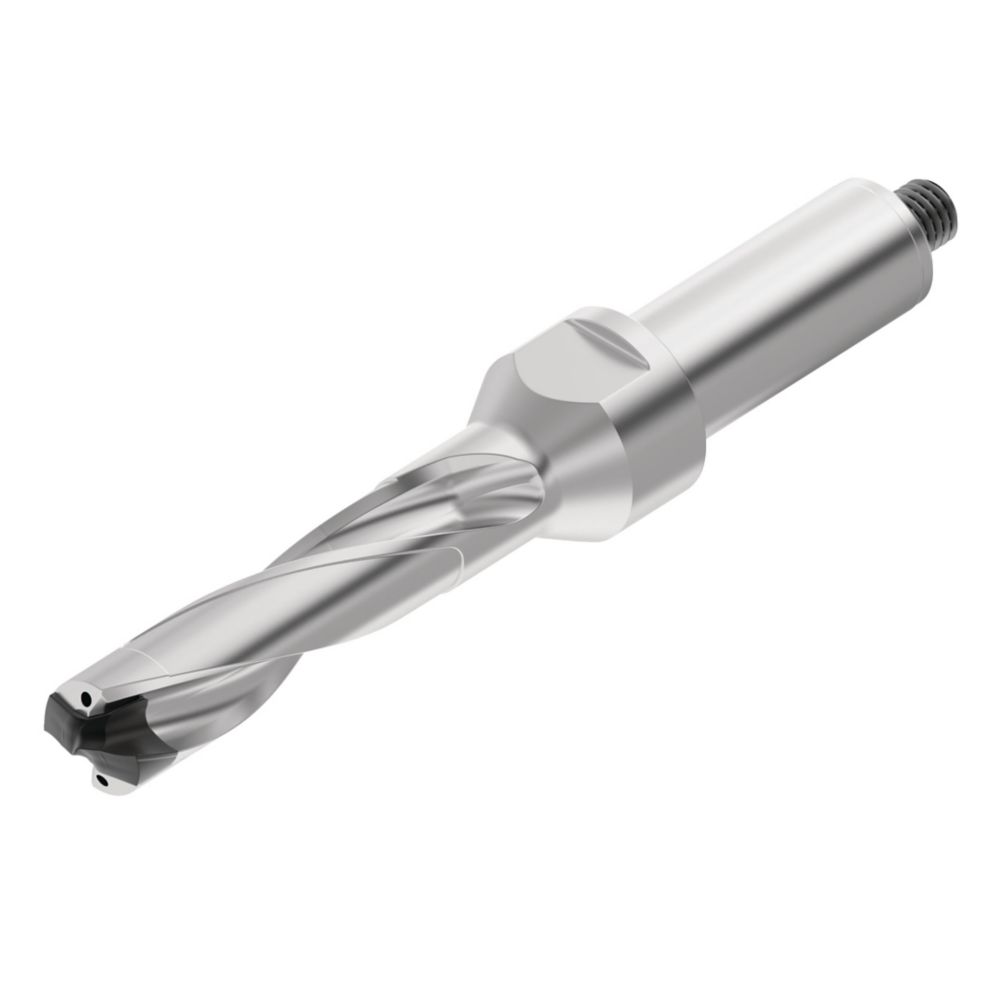

Kennametal • KSEM™ • ST-Line • Drill Body • SFP Shank • Metric • KSEM240ST130SFP25M - Image 3

Kennametal • KSEM™ • ST-Line • Drill Body • SFP Shank • Metric • KSEM240ST130SFP25M

SKU: KEN7138104S/C: 7138104
Usually ships in 5 daysExcluding weekends / Subject to availability

$1,099.89inc
GST

Price Match

Modular Drill Body for structural steel drilling

  • Straight shank with flange and threaded pin for extraordinary rigidity and stiffness, delivering longer tool life and boosted performance.
  • MQL optimised coolant channels for improved cooling and lubrication.
  • KSEM Modular Drilling System for strong insert clamping, delivering enhanced durability and reliability.
More Info
View all:
Technical Details
Adapter Style Machine SideStraight-Cylindrical w/Flange
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Inch [D]0.9843
Adapter/Shank/Bore Dia Metric [D]25.0000
Body Dia Workpiece Side Inch [D2]0.9341
Body Dia Workpiece Side Metric [D2]23.7200
Body Material GroupSteel
Clamping LG Mach Side Inch [L9MS]2.2047
Clamping LG Mach Side Metric [L9MS]56.0000
Coolant Hole Dia Exit Inch [A1]0.0748
Coolant Hole Dia Exit Metric [A1]1.9000
Coolant Hole Dia Inch [A]0.1378
Coolant Hole Dia Metric [A]3.5000
Coolant SupplyYes
Drill Dia Max Inch [D1MAX]0.9449
Drill Dia Max Metric [D1MAX]24.0000
Drill Diameter Min Inch [D1]0.9449
Drill Diameter Min Metric [D1]24.0000
Drill Flute DesignHelical Flute
FamilyKSEM
Flute Length Inch [L3]3.8622
Flute Length Metric [L3]98.1000
Functional Length Inch [LF]4.5551
Functional Length Metric [LF]115.7000
Gage Ins 1 First Dia OutsideKSEM2400HPGM
Gage Length Inch [L1]5.1181
Gage Length Metric [L1]130.0000
Hand of ToolR - Right
Helix HandR - Right Hand Helix/Flute
Ins Atch LG Hldr Inch [LATTH]4.5551
Ins Atch LG Hldr Metric [LATTH]115.7000
Insert ShapeKSEM Drill
Insert/Blade Seat Size [SSC]4
Max Drill Depth Inch [L4]2.9134
Max Drill Depth Metric [L4]74.0000
Maximum Body Diameter Inch [D5]1.3346
Maximum Body Diameter Metric [D5]33.9000
Num of Insert Cutting Dia 11
Number of Flutes2
Overall Length Inch [L]7.7953
Overall Length Metric [L]198.0000
Protruding Length Inch [LPR]5.1181
Protruding Length Metric [LPR]130.0000
Shank Length Inch [LS]2.2047
Shank Length Metric [LS]56.0000
Tool Assembly Length Inch [LTA]4.5551
Tool Assembly Length Metric [LTA]115.7000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
