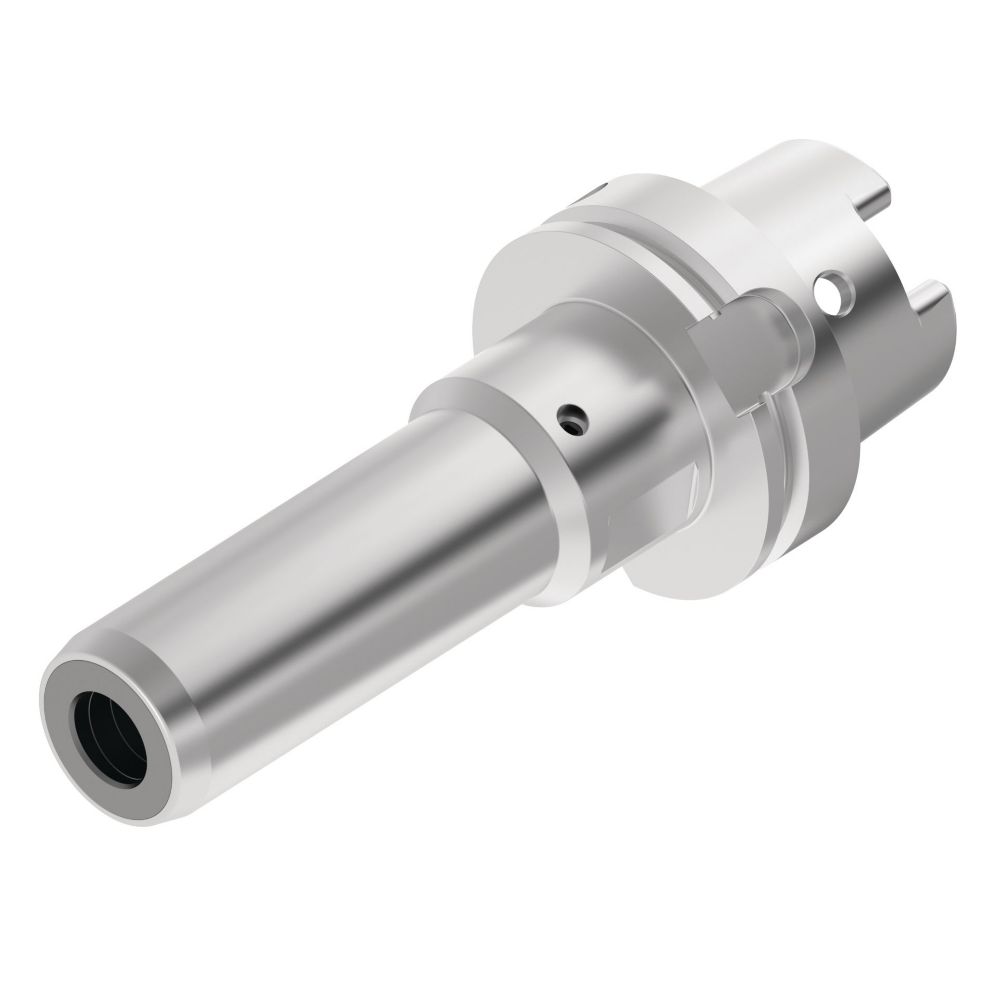

Kennametal • Hydraulic Chuck • HSK80-A • ST-Line • Metric • HSK80AHCP20170M
Kennametal • Hydraulic Chuck • HSK80-A • ST-Line • Metric • HSK80AHCP20170M - Image 2

Kennametal • Hydraulic Chuck • HSK80-A • ST-Line • Metric • HSK80AHCP20170M

SKU: KEN7138028S/C: 7138028
Usually ships in 5 daysExcluding weekends / Subject to availability

$1,052.70inc
GST

Price Match

Hydraulic Chuck for structural steel drilling with KSEM ST-Line drill bodies

This product doesn't have any features.

More Info
View all:

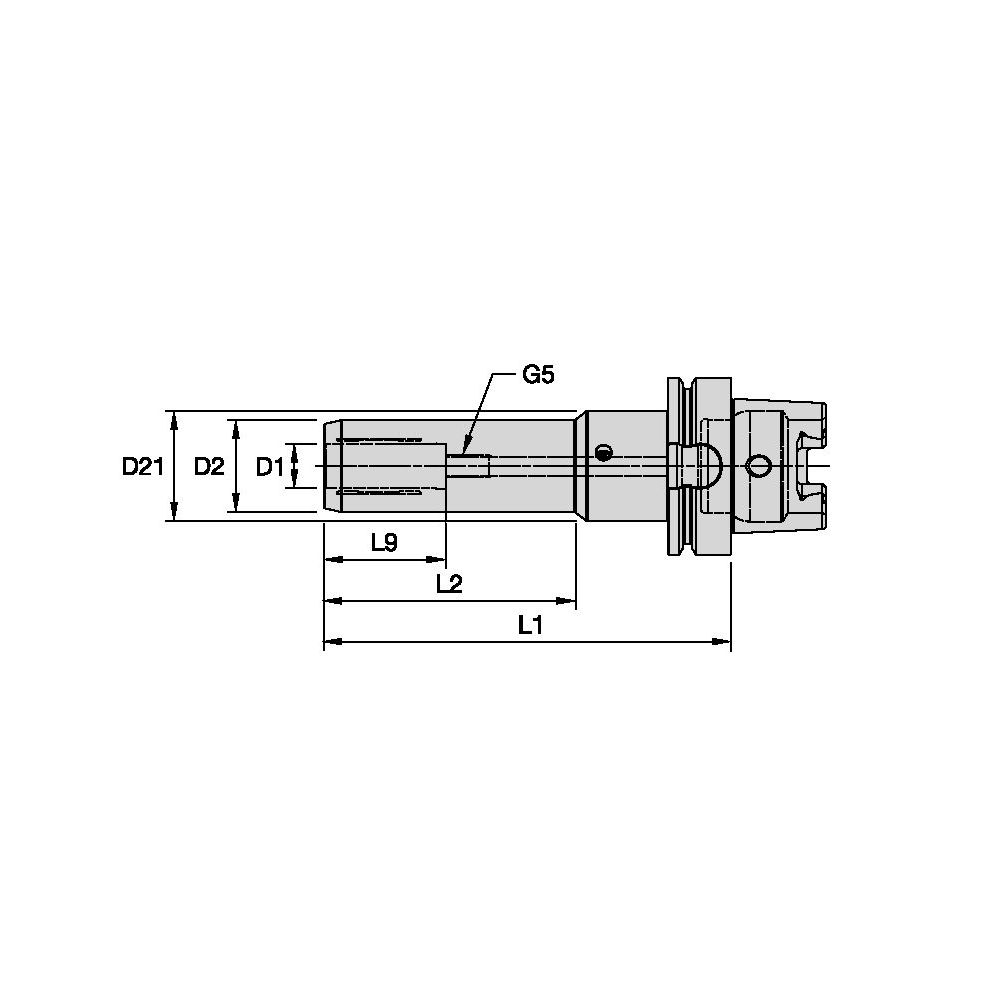

Technical Details
Actuation Screw ID Drive Size5 mm
Adapter Style Machine SideHSK
Adapter Type Machine SideTaper Shank
Adapter Type Workpiece SideZYL - Cylindrical Adapter
Adapter/Shank/Bore Dia Inch [D]3.1496
Adapter/Shank/Bore Dia Metric [D]80.0000
Adapter/Shank/Bore Dia WKPS Inch [D1]0.7874
Adapter/Shank/Bore Dia WKPS Metric [D1]20.0000
Body Dia 1 Workpiece Side Inch [D2]1.6354
Body Dia 1 Workpiece Side Metric [D2]41.5400
Body Dia 2 Workpiece Side Inch [D21]1.9626
Body Dia 2 Workpiece Side Metric [D21]49.8500
Body Dia Machine Side Inch [D5]3.1496
Body Dia Machine Side Metric [D5]80.0000
Centreline Height Inch [H1]0.0000
Centreline Height Metric [H1]0.0000
Clamping Length Inch [L9]2.0079
Clamping Length Metric [L9]51.0000
Coolant Hole Dia Exit Inch [A1]0.3346
Coolant Hole Dia Exit Metric [A1]8.5000
Coolant Hole Dia Inch [A]0.3346
Coolant Hole Dia Metric [A]8.5000
Coolant SupplyYes
Dimension Inch [F]0.0000
Dimension Metric [F]0.0000
Flange Length Metric [FLGT]25.9500
Flange-Front End Dist Inch [L4]5.6713
Flange-Front End Dist Metric [L4]144.0500
Front End Tool TypeHydraulic Chuck
Functional Length Inch [LF]6.6929
Functional Length Metric [LF]170.0000
Gage Length 1 Inch [L1]6.6929
Gage Length 1 Metric [L1]170.0000
Hand of ToolN - Neutral
Overall Length Inch [L]8.2638
Overall Length Metric [L]209.9000
Protruding Length Inch [LPR]6.6929
Protruding Length Metric [LPR]170.0000
Shank Length Inch [LS]1.5709
Shank Length Metric [LS]39.9000
System Size Machine Side [CSMS]HSK80A
Tool Assembly Length Inch [LTA]6.6929
Tool Assembly Length Metric [LTA]170.0000
Usable Length 2 Inch [L21]5.6713
Usable Length 2 Metric [L21]144.0500
Usable Length Inch [L2]4.1339
Usable Length Metric [L2]105.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
