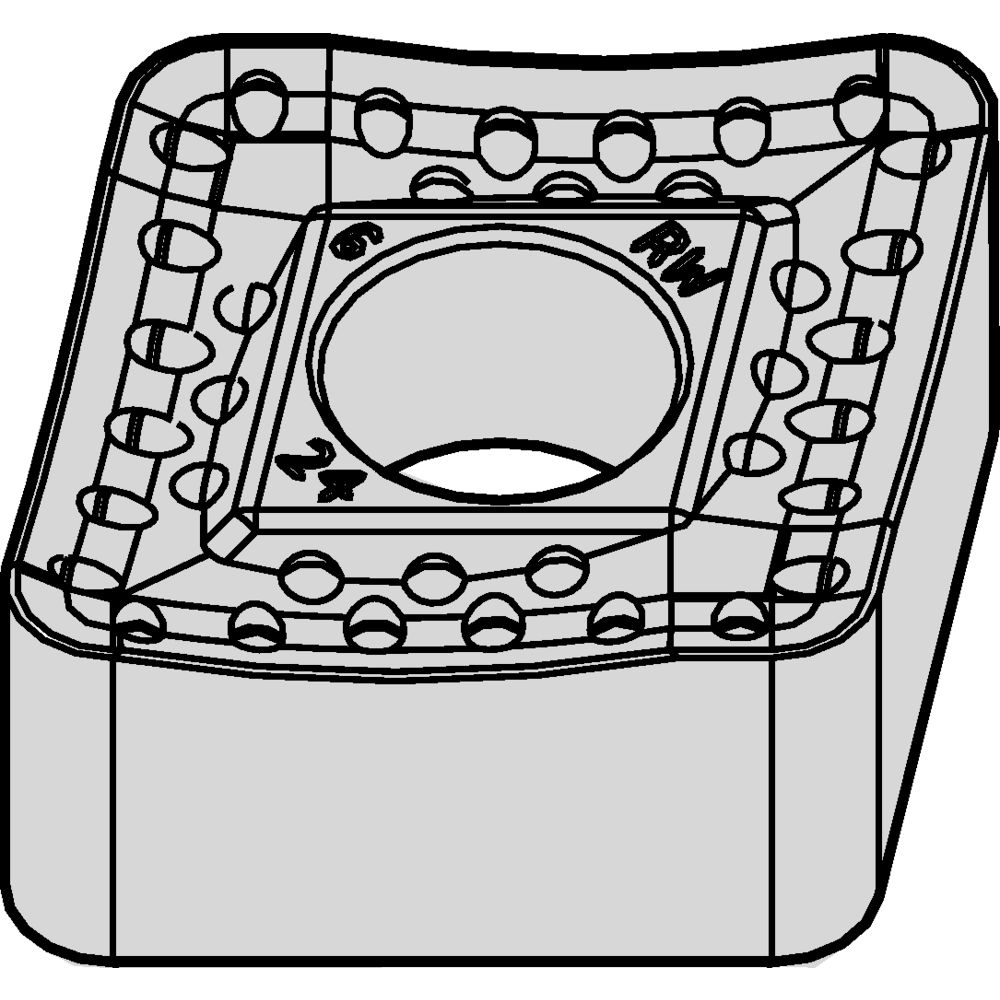

Kennametal • CNMM-RW • CNMM190624RW KCP25C
Kennametal • CNMM-RW • CNMM190624RW KCP25C - Image 2

Kennametal • CNMM-RW • CNMM190624RW KCP25C

SKU: KEN7088057S/C: 7088057
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$66.91inc
GSTEACH

Price Match

Kenloc™ Inserts

  • Beyond™ Drive™ grades included.
More Info
View all:
Technical Details
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationRW
Clearance Angle Major [ALPHAN]0.000
CoatingMT-TiCN
Corner Radius Frac [REPSILON]3/32
Corner Radius Inch [REPSILON]0.093750
Corner Radius Metric [REPSILON]2.4000
Cutting Tool MaterialCarbide
Engineering Insert GeometryMM_RW
Ins Cut Edge Length Inch [L10]0.7616
Ins Cut Edge Length Metric [L10]19.3440
Insert Gage Dimension Inch [M]0.1490
Insert Gage Dimension Metric [M]3.7800
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.3125
Insert Hole Size Metric [D1]7.9300
Insert IC Size Fraction [D]3/4
Insert IC Size Inch [D]0.7500
Insert IC Size Metric [D]19.0500
Insert Mounting2-Cylindrical Fixing Hole
Insert Num of Cutting Edges2
Insert Num of Indexes2
Insert Rake Angle [GAMMA]18.000
Insert ShapeC-Diamond/Rhombic 80
Insert Thickness Fraction [S]1/4
Insert Thickness Inch [S]0.2500
Insert Thickness Metric [S]6.3500
Lead Angle ANSI [KRA]5.000
Lead Angle ISO [KRI]75.000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
