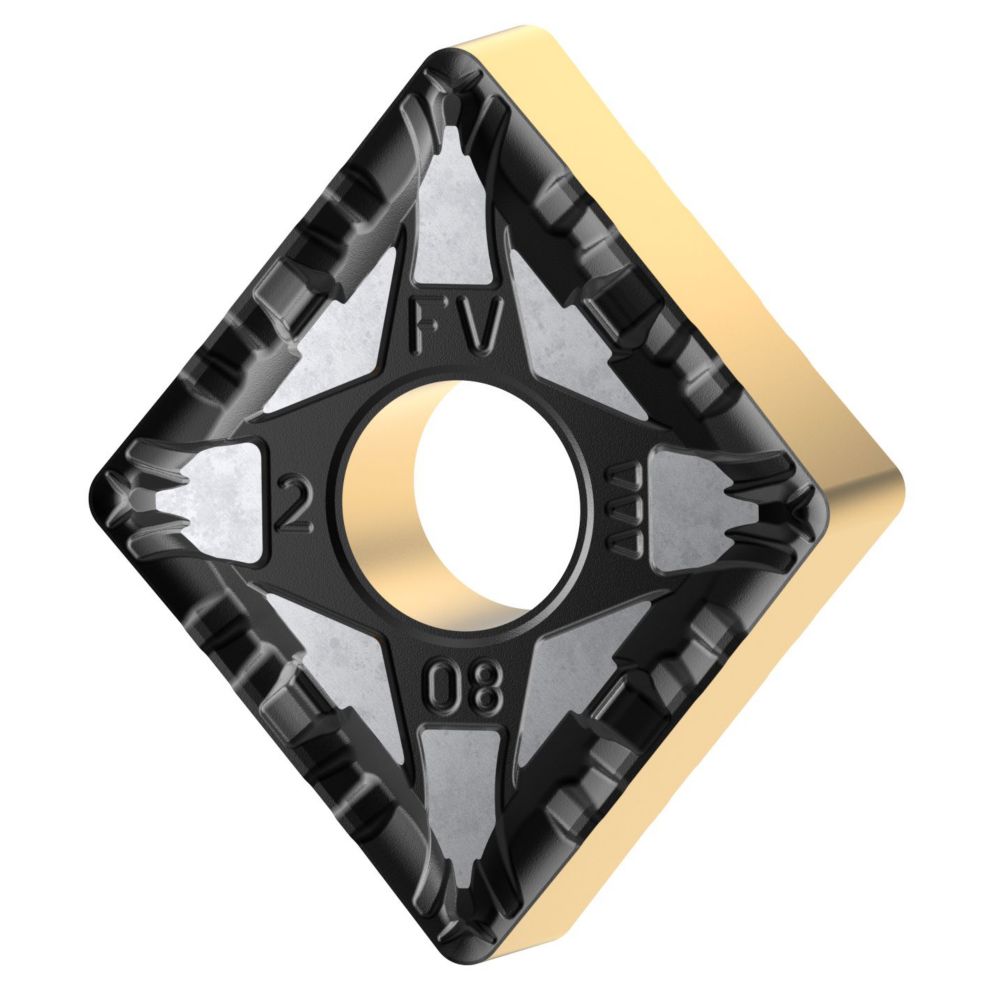

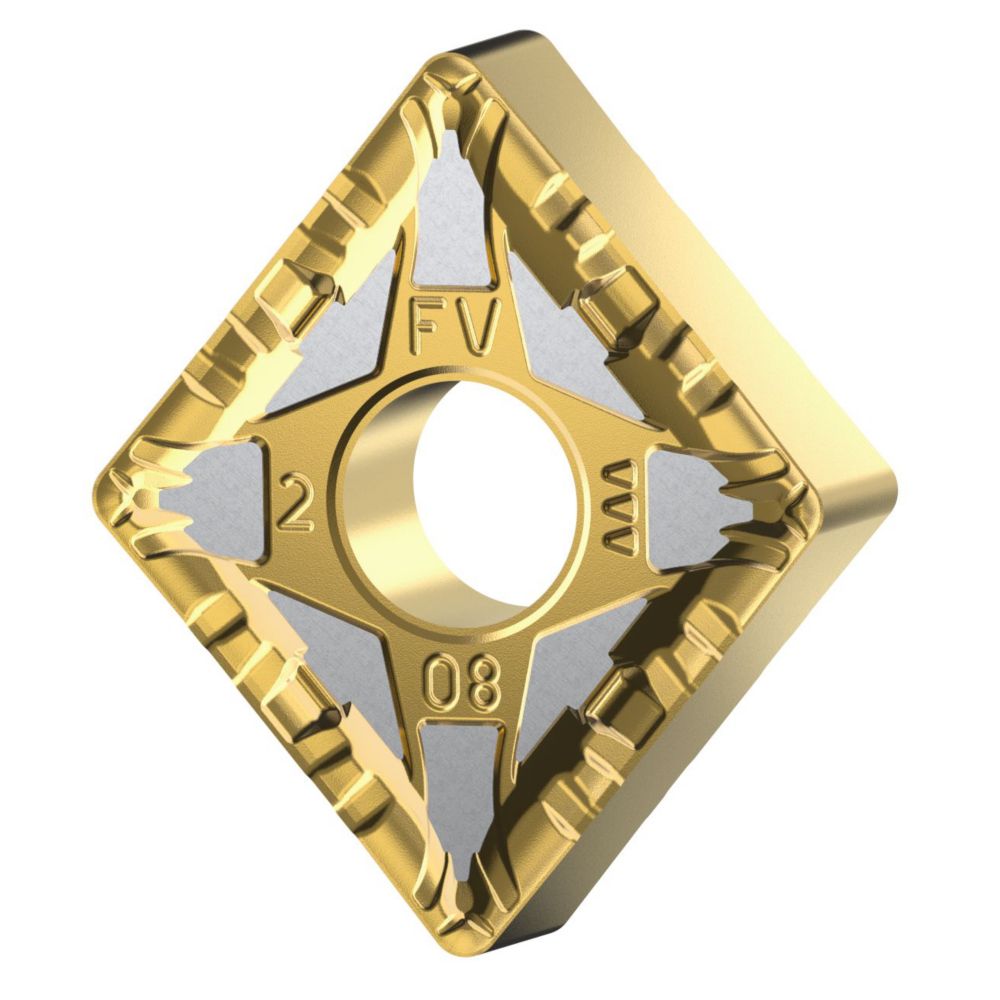

Kennametal • Kenloc™ • CNMG Insert • Negative • FV • CNMG120404FV KCP25C

Name: Kennametal • Kenloc™ • CNMG Insert • Negative • FV • CNMG120404FV KCP25C
SKU: KEN7064025
Availability: InStock

SKU: KEN7064025S/C: 7064025

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$29.04inc
GSTEACH

ISO Turning Carbide Insert • Finishing Versatile Geometry

This product doesn't have any features.

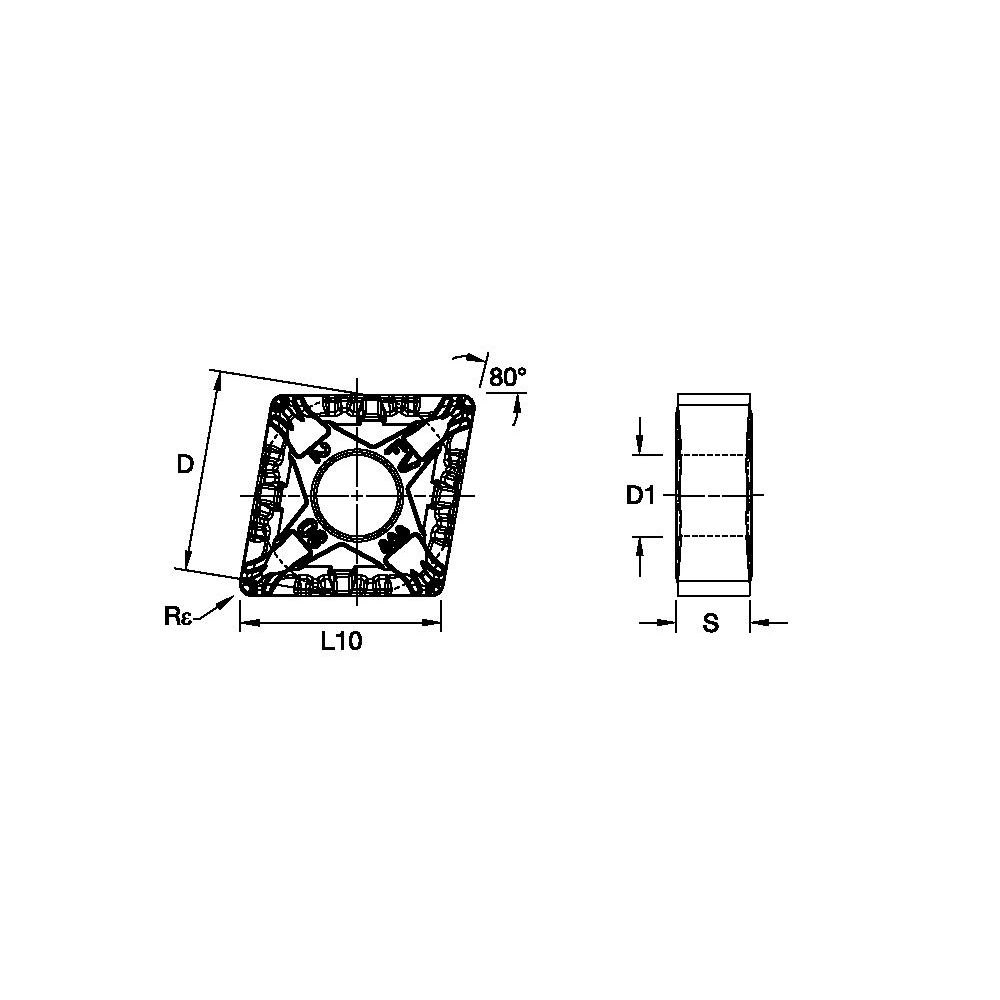

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	FV
Clearance Angle Major [ALPHAN]	0.000
Coating	Al2 O3
Corner Radius Frac [REPSILON]	1/64
Corner Radius Inch [REPSILON]	0.015625
Corner Radius Metric [REPSILON]	0.4000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MG_FV
Ins Cut Edge Length Inch [L10]	0.5077
Ins Cut Edge Length Metric [L10]	12.8960
Insert Gage Dimension Inch [M]	0.1302
Insert Gage Dimension Metric [M]	3.3070
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.2030
Insert Hole Size Metric [D1]	5.1560
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	4
Insert Num of Indexes	4
Insert Rake Angle [GAMMA]	10.000
Insert Shape	C-Diamond/Rhombic 80
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7620

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
