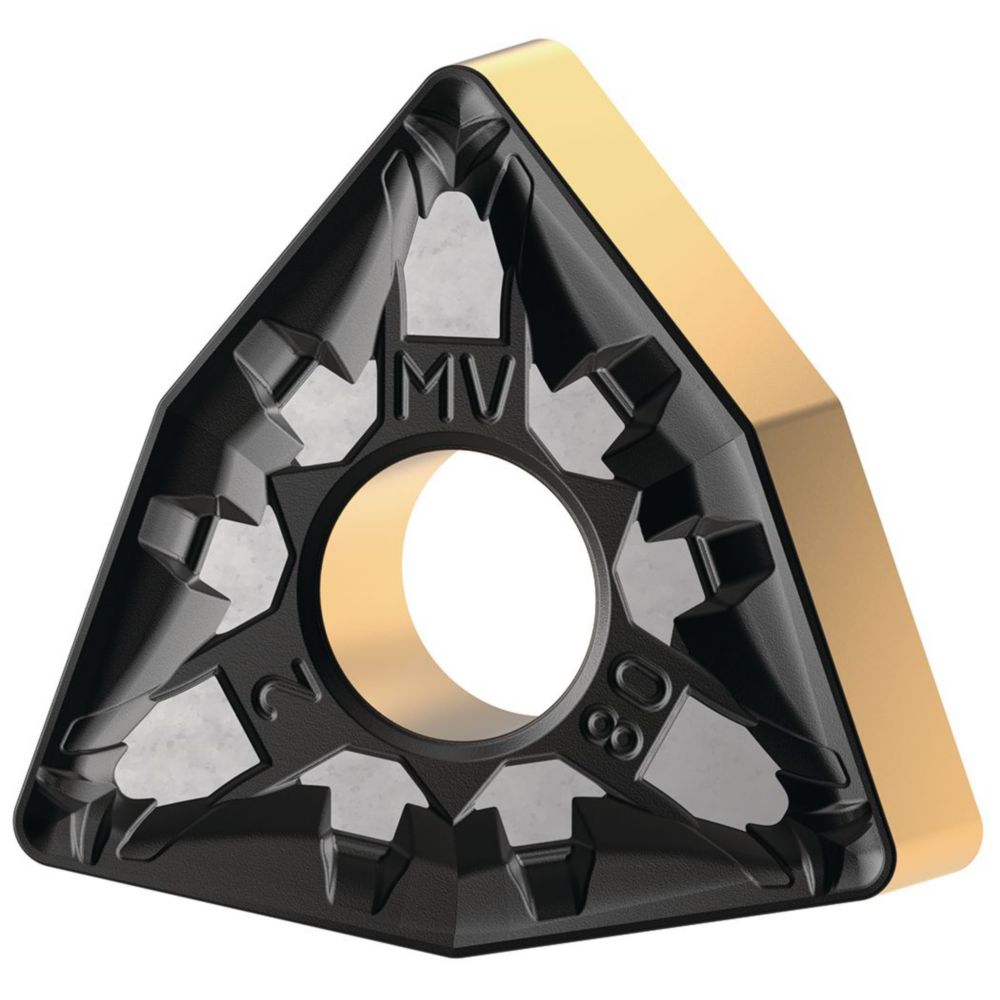

Kennametal • Kenloc™ • WNMG Insert • Negative • MV • WNMG080416MV KCP25C

Name: Kennametal • Kenloc™ • WNMG Insert • Negative • MV • WNMG080416MV KCP25C
SKU: KEN7036179
Availability: InStock

SKU: KEN7036179S/C: 7036179

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$31.70inc
GSTEACH

ISO Turning Carbide Insert • Medium Versatile Geometry

This product doesn't have any features.

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	MV
Clearance Angle Major [ALPHAN]	0.000
Coating	MT-TiCN
Corner Radius Frac [REPSILON]	1/16
Corner Radius Inch [REPSILON]	0.062500
Corner Radius Metric [REPSILON]	1.5880
Cutting Tool Material	Carbide
Engineering Insert Geometry	MG_MV
Ins Cut Edge Length Inch [L10]	0.3420
Ins Cut Edge Length Metric [L10]	8.6870
Insert Gage Dimension Inch [M]	0.1039
Insert Gage Dimension Metric [M]	2.6400
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.2031
Insert Hole Size Metric [D1]	5.1560
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	6
Insert Num of Indexes	6
Insert Rake Angle [GAMMA]	4.000
Insert Shape	W-Trigon 80
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7630
