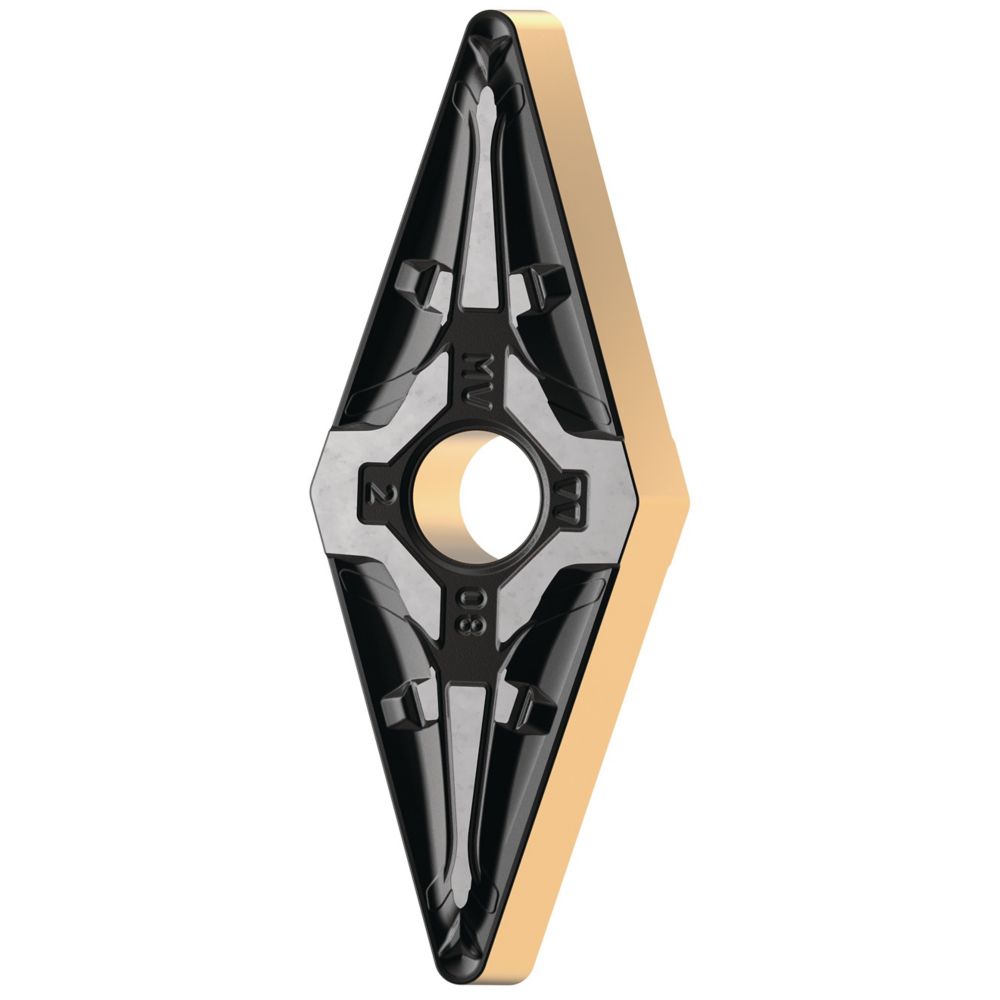

Kennametal • Kenloc™ • VNMG Insert • Negative • MV • VNMG160412MV KCP25C

Name: Kennametal • Kenloc™ • VNMG Insert • Negative • MV • VNMG160412MV KCP25C
SKU: KEN7036175
Availability: InStock

SKU: KEN7036175S/C: 7036175

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$41.38inc
GSTEACH

ISO Turning Carbide Insert • Medium Versatile Geometry

This product doesn't have any features.

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	MV
Clearance Angle Major [ALPHAN]	0.000
Coating	MT-TiCN
Corner Radius Frac [REPSILON]	3/64
Corner Radius Inch [REPSILON]	0.046875
Corner Radius Metric [REPSILON]	1.2000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MG_MV
Ins Cut Edge Length Inch [L10]	0.6538
Ins Cut Edge Length Metric [L10]	16.6060
Insert Gage Dimension Inch [M]	0.3262
Insert Gage Dimension Metric [M]	8.2850
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1500
Insert Hole Size Metric [D1]	3.8100
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	4
Insert Num of Indexes	4
Insert Rake Angle [GAMMA]	4.000
Insert Shape	V-Diamond/Rhombic 35
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7630
